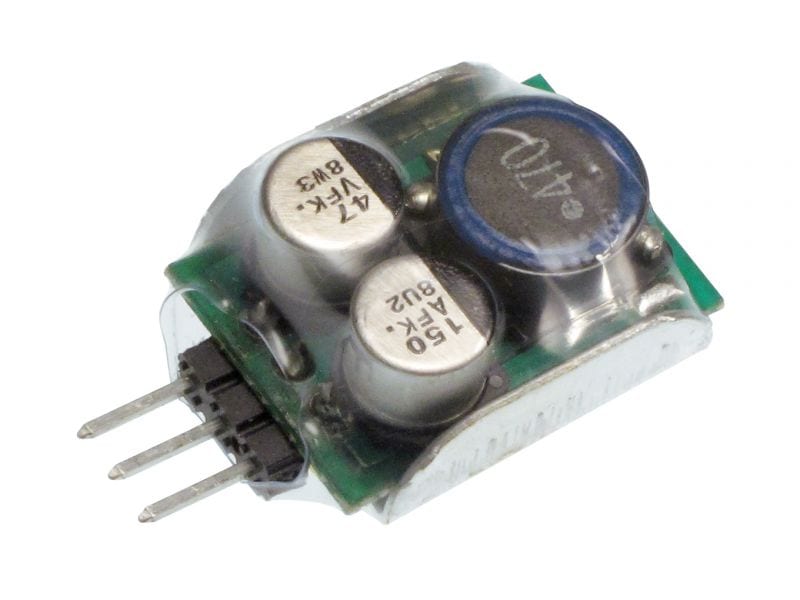

3.3V 1A Switching Voltage Regulator

50200

$17.35 USD
Qty
Price
1
$17.35 ea.

The Dimension Engineering 3.3V switching regulator is a tight & tidy voltage regulator that offers great performance at an excellent price. Great for extending battery life!


Description [Hide]

Why would you need a DE-SW033 series switch mode voltage regulator? Easy. Power efficiency.

A regular 78M0x series linear regulator wastes the power that isn't being put to good use as heat. A switch mode regulator uses a different approach from just "throwing the power away", which means batteries run longer and the regulator runs cooler. These units run up to 87% efficient!

These modules are designed to be pin-for-pin compatible with a standard 78M0x style regulator, so you can plug it into any circuit calling for a wasteful linear regulator.

These devices are small too! The body is only 16x22mm, and only 11mm deep, and come pre-pinned with convenient breadboard compatible 0.1" spacing.

Specifications:

  • 78xx IC compatible footprint
  • 30VDC Maximum Voltage input (for input voltages greater than 25V minimum of a 40mA current draw required for stable regulated voltage)
  • 1.3V dropout voltage
  • 1A continuous current (1.5A pulse < 5s)
  • Up to 87% efficiency
  • Less than 2% ripple
  • 3.8g
