Breadboard PSU

42002

8.95 USD
Qty
Price
1
$8.95 ea.

Add regulated 5V or 3.3V power to your breadboard using a2.1MM barrel jack. This model can also provide power out to your USB device!


Description [Hide]

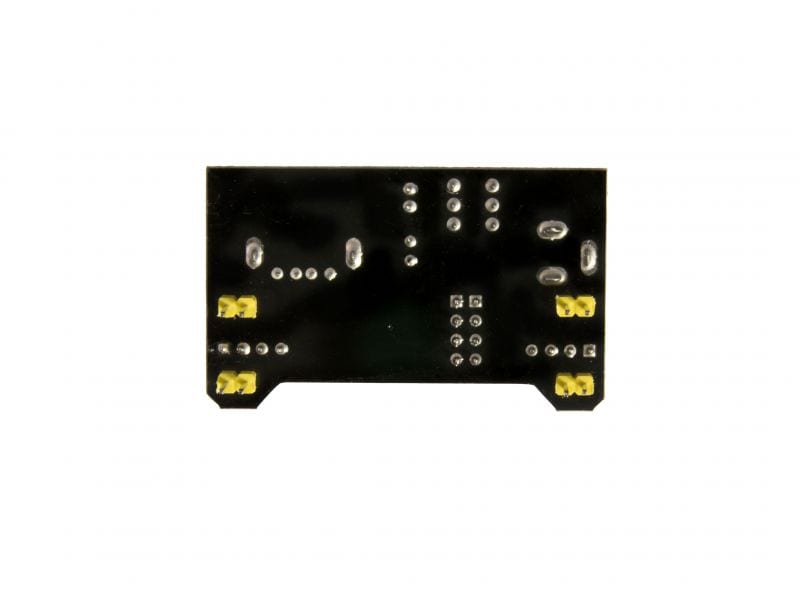

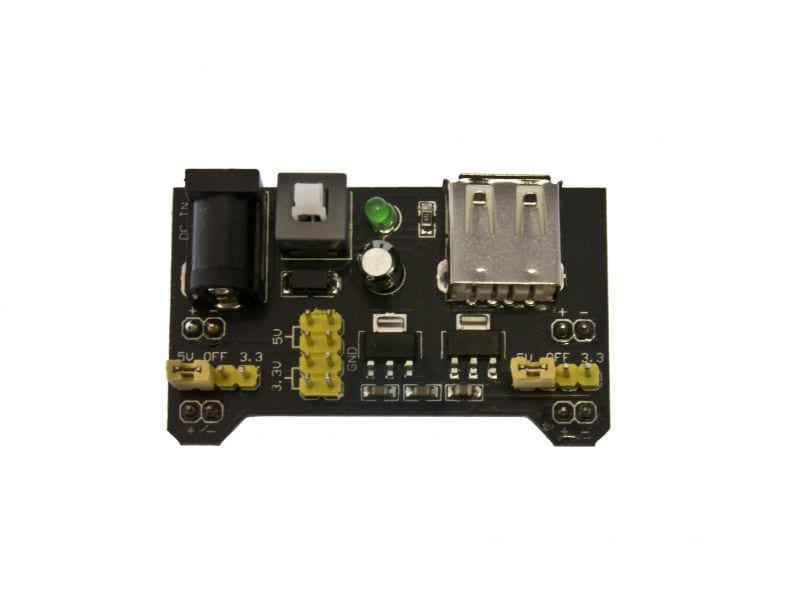

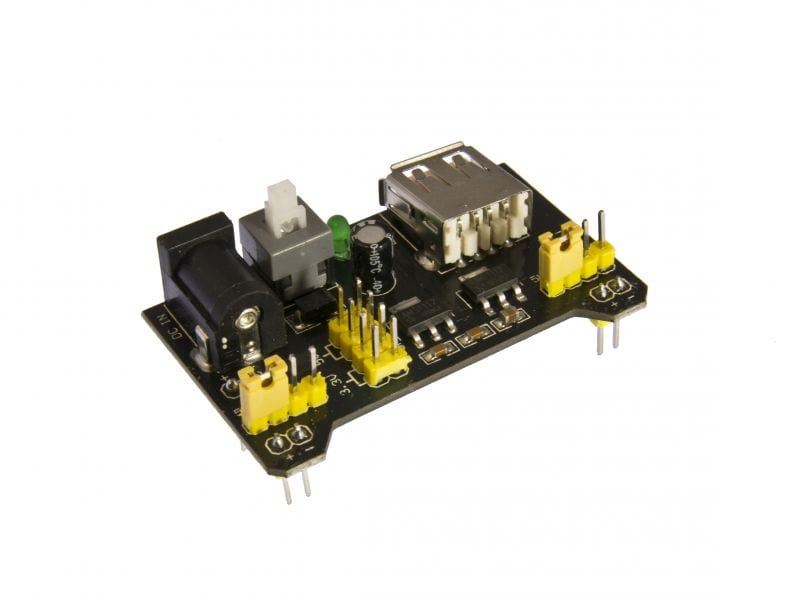

This breadboard power supply builds on our BVR regulator kit and provides even more functionality in only a slightly larger package. This board has both a 3.3V and 5.0V regulator and provides an on/off pushbutton to enable power to the board. It comes with a barrel jack to provide power and has a USB-A connector that acts as a basic power output to power any of your USB devices.

Features:

  • Selectable voltages 3.3V or 5.0V
  • 0.1" Headers to directly plug board into breadboard
  • 2.1mm barrel jack
  • USB-A power out connector

Specifications:

  • Input Voltage: 6.5-12VDC
  • Output Current: 3.3/5.0V selectable
  • Maximum Current: <700mA
  • Designed for a standard breadboard
