BittyBot Nano Line Sensor Kit
40254
12.31
USD
Qty
Price
1
$12.31 ea.

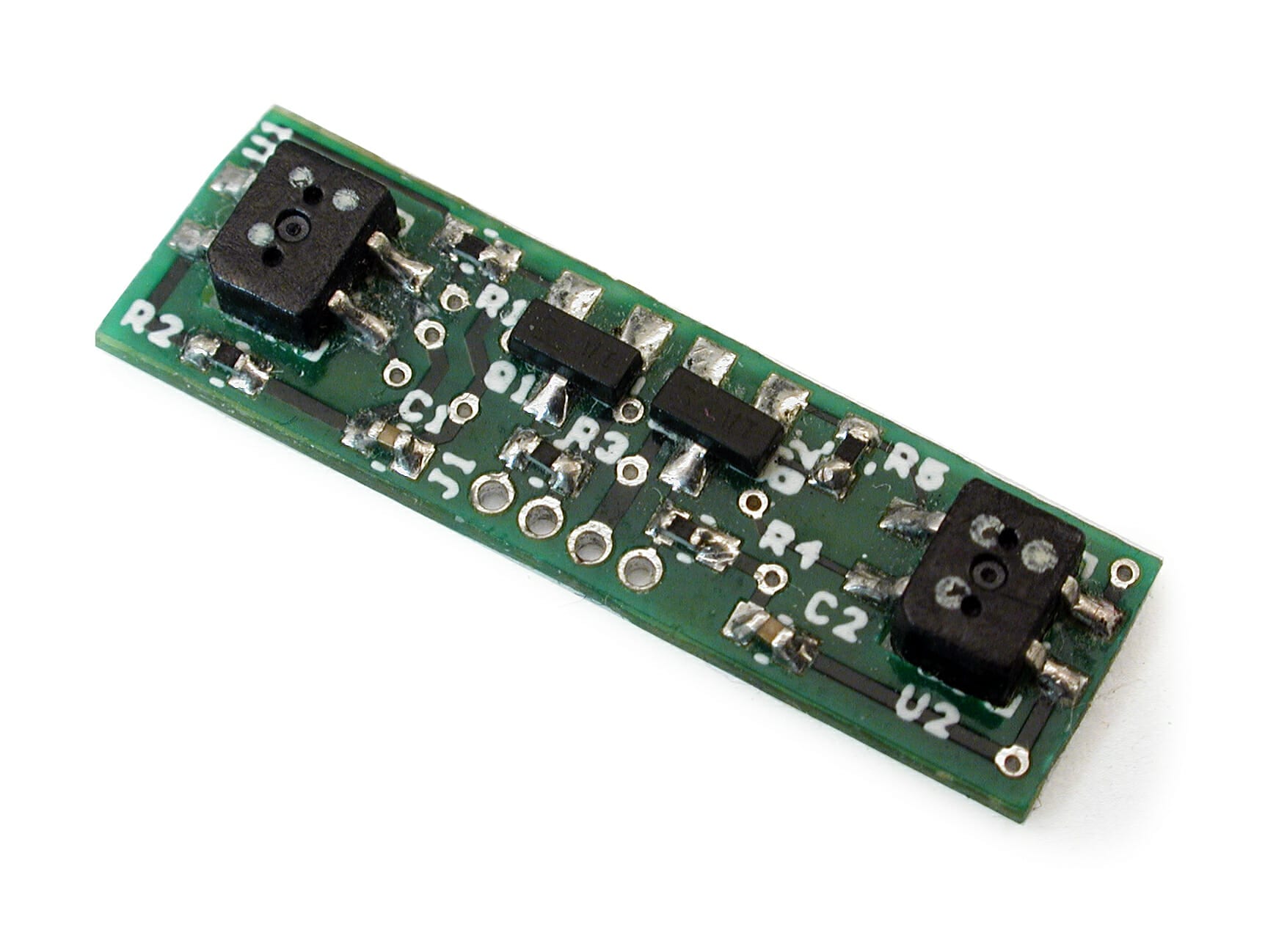

BittyBot's Nano line sensor kit is a tight and tidy .95" wide pair of sensors for detecting white/black differences, like a line on a surface. Ideal for line-followers or sumo edge detection!
Description [Hide]
Building something really small? Need line or edge detection? You must be one of those Nano-sumo masochists with better eyes than a hawk! Well, the BittyBot Nano line-sensor is a kit to streamline your construction!
The features include:
- Dual detection (two opto-reflector sensors!)
- Only 0.95" x 0.275" x 0.10" thick (24.1 x 6.96 x 2.54mm)
- Detection range of ~1-5mm
- Each IR photodetector measures surface reflectivity to distinguish dark and light surfaces
- Analog output per sensor reads less than 1V for distances of ~1-5mm from a white surface, and quickly ramps up to ~5V beyond 5mm. Also reads ~5V for a black surface.
- Outputs compatible with digital inputs of most microcontrollers and other logic devices. (Use with the MEGAbitty's interrupt inputs for quick response to surface color transitions!)
- 5V operation
Note: This is a kit that requires some manual dexterity to assemble correctly!
Documentation [Hide]
- [Documentation]: Bittybot Nano Line Sensor Manual
- [Data Sheet]: Nano Line Sensor Assembly Instructions
