BittyBot ProxDots (4-pack) Kit

40251

$22.31

USD

Qty
Price
1
$22.31 ea.

Looking for tiny proximity sensors? The BittyBot ProxDots are very small, and complete with IR modulated transmitter / receivers!


Description [Hide]

Sometimes, you just need a tiny ...something... to detect an obstacle in close proximity. And smaller, the better. Well, here's your solution! To assist their MEGABitty robot controller, BittyBot put together ProxDots.

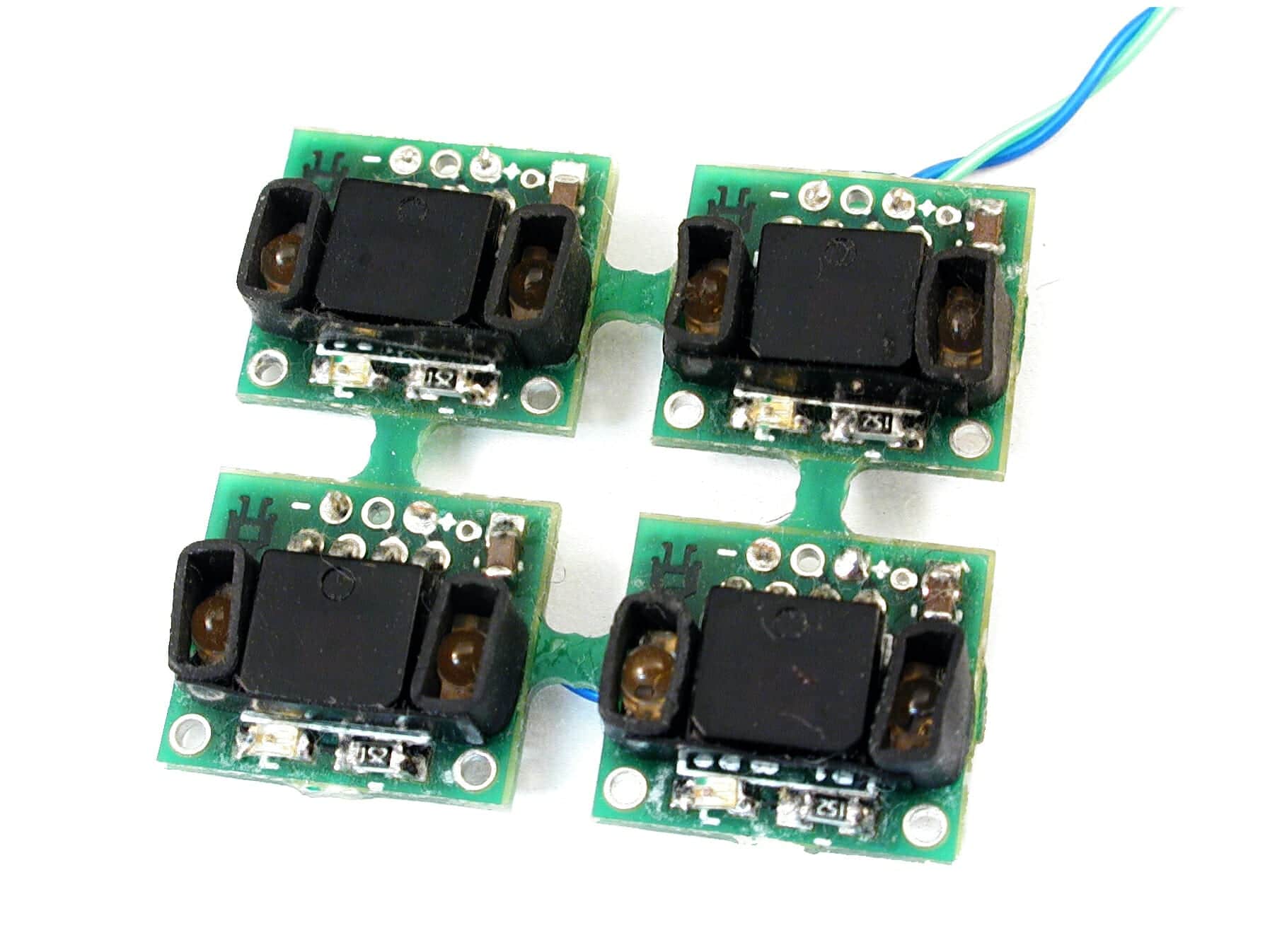

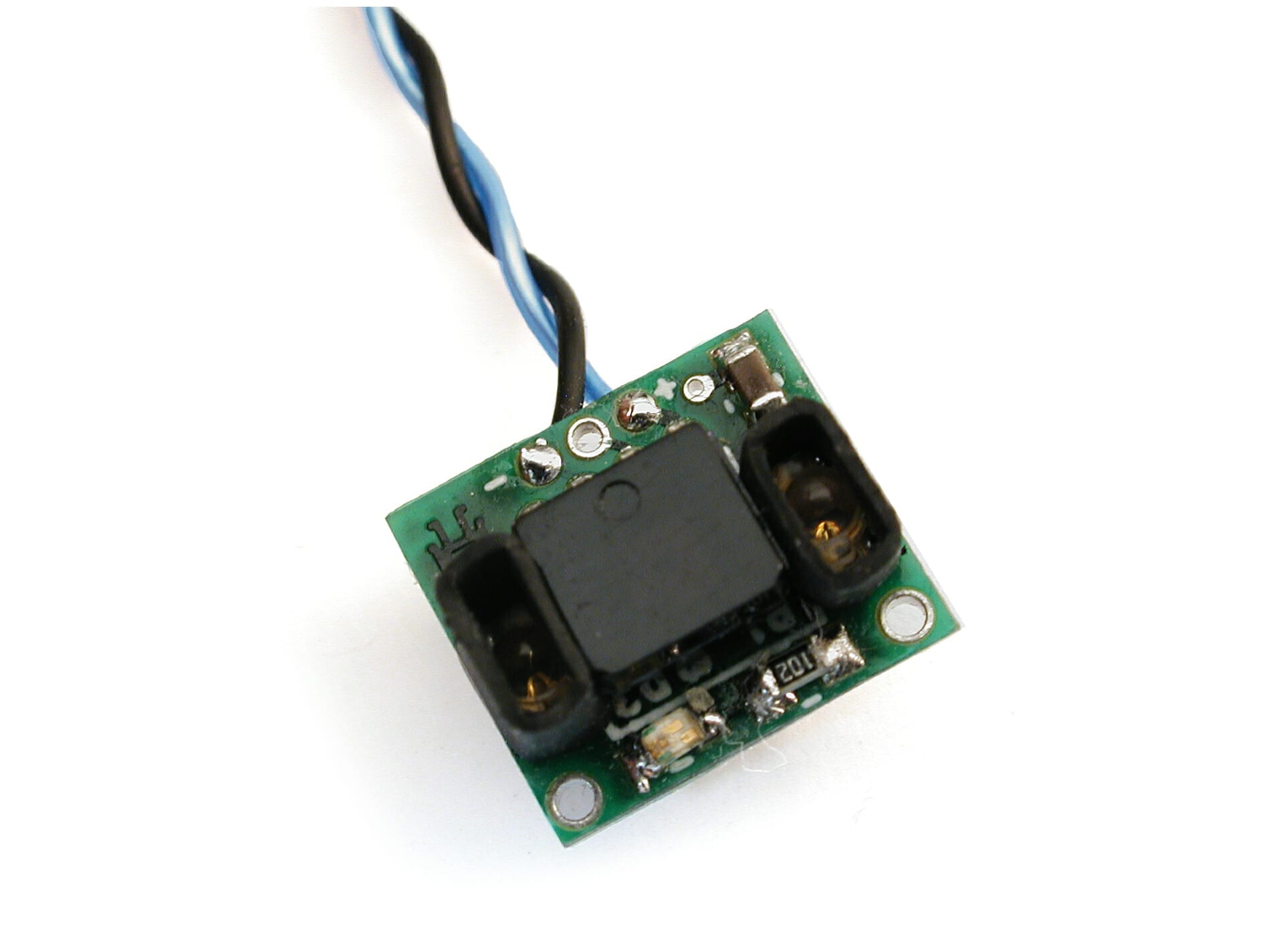

These 0.4" x 0.35" (10.16mm x 8.89mm) square sensors use the popular IS471 sensor to give you a simple digital "yes/no" signal when they detect an obstacle within range (usually with a maximum range of ~6"). You might not think having an LED indicator on the sensor as handy, but trust us - it's a dynamite little feature to have on any sensor!

Here's the feature list:

  • Only 0.40" x 0.35" x 0.14" thick (10.16 x 8.89 x 3.56mm) - Very compact!
  • Short-range sensing of up to 4-6" (remember, these are short range sensors!)
  • "Objected detected" indicator LED
  • Digital high/low output (low = object detected)
  • Uses Sharp IS471F sensor which included IR modulation for better noise rejection
  • 5V operation

Note: This is a kit that requires some manual dexterity to assemble correctly!
