PING))) Ultrasonic Range Finder

35190

Qty
Price (CAD)
1
$29.95 ea.
2
$27.85 ea.
25+
$22.46 ea.

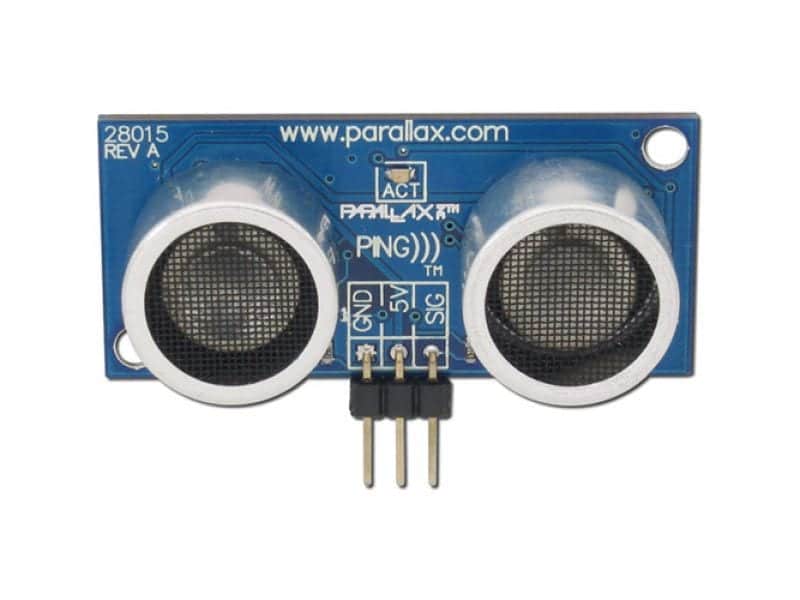

The PING))) Ultrasonic Range Finder is a simple to use ultrasonic ranging system that can be easily interface to any microcontroller.


Additional Information [Hide]

The new PING))) ultrasonic sensor is a popular solution for anyone who wants to measure the distance between any moving or stationary objects. Naturally, robotics applications are very popular but you'll also find this product to be useful in security systems or as a replacement for infrared sensing stations.

The PING))) sensor measures distances using sound; an ultrasonic sound (well above human hearing) pulse is transmitted from the unit and is echoed back to the target. The distance from the sender to the target is determined by measuring the amount of time that was required for the echo return. Output from the PING))) sensor is a variable-width pulse that corresponds to the distance to the target. The PING))) can be easily implemented into any design and requires only 5V, GND, and a single I/O line.

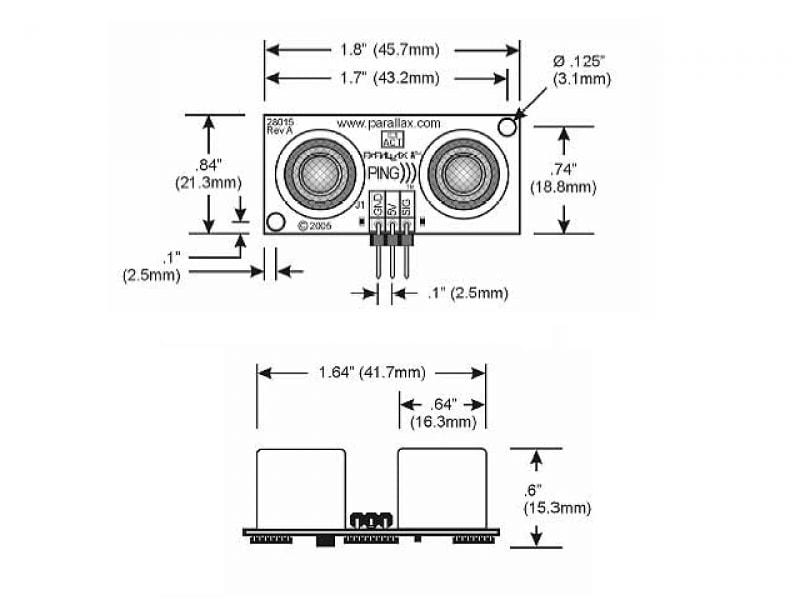

Technical Specifications :

  • Range - 2cm to 3.35m (~.8" to 11.3')
  • Supply Voltage: 5V +/-10% (Absolute: Minimum 4.5V, Maximum 6V)
  • Supply Current: 30 mA typ; 35 mA max
  • 3-pin interface (Ground, Power, Signal)
  • 20 mA power consumption
  • Narrow acceptance angle
  • Simple pulse in / pulse out communication
  • Indicator LED shows measurement in progress
  • Input Trigger - positive TTL pulse, 2 uS min, 5 uS typ.
  • Echo Pulse - positive TTL pulse, 115 uS to 18.5 mS
  • Echo Hold-off - 350 uS from fall of Trigger pulse
  • Burst Frequency - 40 kHz for 200 uS
