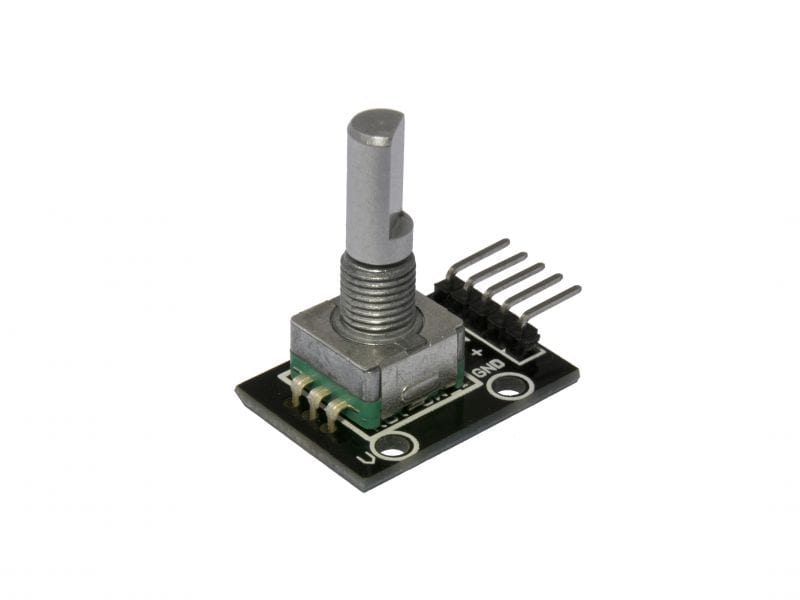

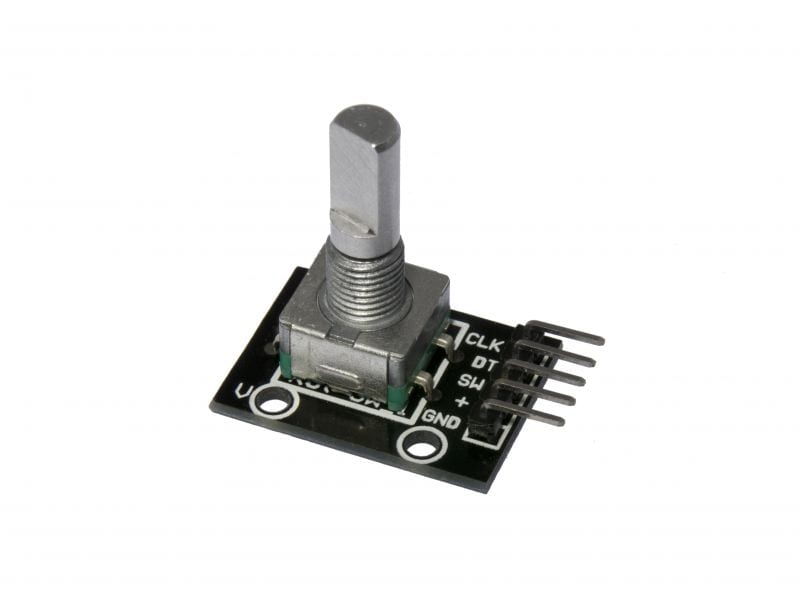

Rotary Encoder module on PCB with breakout

35174

3.50 USD
Qty
Price
1
$3.50 ea.

Rotary Encoder module with integrated push button. Perfect addition to that Arduino project!


Description [Hide]

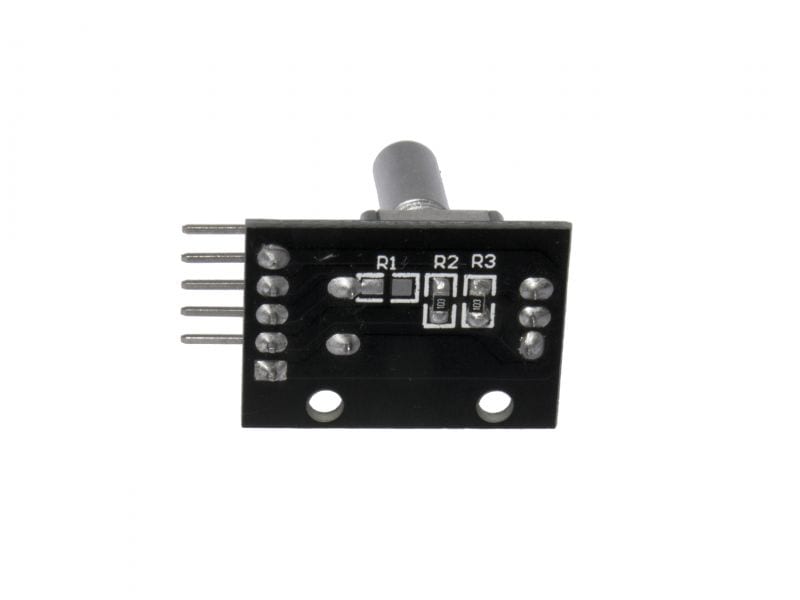

Rotary encoder with push to operate switch mounted on a pcb for easy prototyping. The rotary encoder outputs are pulled high with 10k ohm resistors.

  • Rotary Shaft Length: Approx. 12mm
  • Shaft Full Length: Approx. 20mm
  • Shaft Diameter: Approx. 6mm
  • Size:32x29x19mm(approx)
  • Position: 20
  • Pulse: 20
  • Output: 2-bit gray code
  • Closed Circuit Resistance: 3 ohms max.
  • Max. Rating: 10 mA @ 5 VDC
  • Operating Temperature Range: -30 to 70 degrees celsius
  • Storage Temperature Range: -40 to 85 degrees celsius
  • Rotational Life: 30000 cycles minimum
  • Switch Life: 20000 cycles minimum
