IESP-12 Force Sensor

35170

6.95 USD
Qty
Price
1
$6.95 ea.

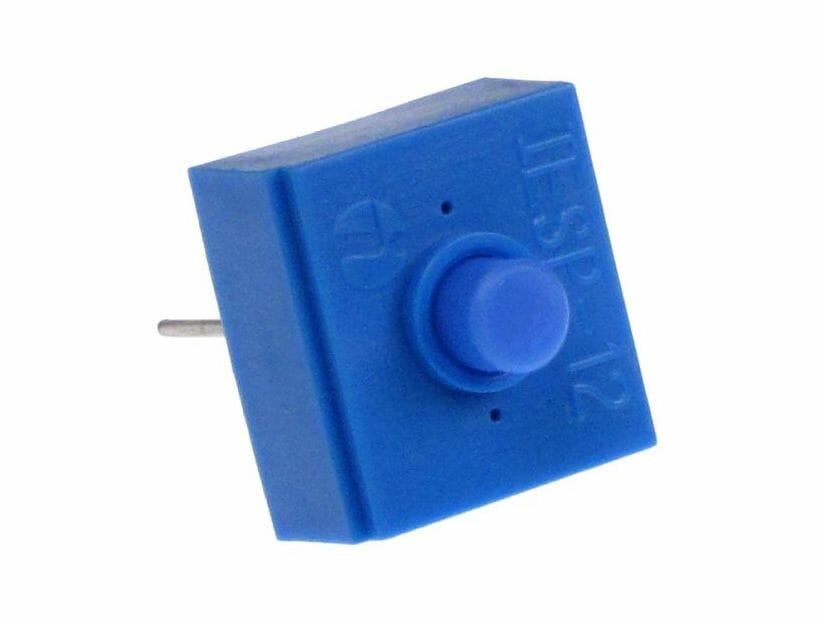

The IESP-12 Force Sensor is a variable resistance sensor where the output resistance is proportional to the force applied to the plunger.


Description [Hide]

The IESP-12 force sensor outputs a varying resistance that is a proportional representation of the force applied to the button on the top of the device. The resistance can then used to estimate force (or weight).

Features Include :

  • Compact device (12 x 11mm)
  • Up to 4 Kg of force
  • High resistance (>500K) unloaded
  • Low resistance (~500 Ohms) at max load
  • Easy to use

How it works

The IESP features a special conductive rubber membrane which deflects under pressure. The membrane makes contact with a ceramic plate with resistive traces on it. As the force increases, the membrane contacts more of the resistive traces area and the output resistance drops.

A simple circuit consisting of the IESP-12, a 1K Ohm resistor, and an LED in series serves to demonstrate the sensors' functionality. When powered with +5VDC the LED will glow more brightly as the force on the sensor is increased.

Limitations

The IESP-12 is designed for intermittent use. That is, the application of force should be temporary. Applying force for long periods can permanently damage the membrane and alter the characteristics of the device -particularly at higher force levels.

Applications

Digital scale, variable-force pushbutton, contact sensor, robotics....

Specifications

  • Size: 12x 11mm
  • Supply Voltage: 3 - 6 Volts DC (Max. 30 VDC)
  • Current: 5mA (Max. 20 mA)
  • Rated Force: 1.5 Kgf (Max 4Kgf)
  • Life: >100,000 cycles at rated force (1 sec ON, 3 sec OFF)
  • Operating Temp: +10° C to +40 ° C
  • Storage Temp: -40° C to +70° C
  • Humidity: 85% RH, Non condensing
  • Pin Spacing: 0.2" <
