DS18B20+ Temperature Sensor

35040

4.95 USD
Qty
Price
1
$4.95 ea.
2+
$4.70 ea.

The DS18B20+ is a handy, 1-wire compatible temperature sensor, ideal for interfacing with the PICAXE!


Description [Hide]

The Dallas Semiconductor DS18B20+ is ideal for interfacing to a microcontroller, especially if it uses the '1-Wire' interface which allows looong distances between sensor and microcontroller (200'+!).

It is often used with the PICAXE microcontroller, which has the built-in function "readtemp" to communicate with this device.

The DS18B20+ features:

  • 1-Wire interface
  • Unique 64 bit serial code so many devices can share same data line
  • Data line powered from 3 to 5.5V
  • Measures -55 to +125°C (-67°F to +257°F)
  • ±0.5°C Accuracy from -10°C to +85°C
  • Resolution is user-selectable from 9 to 12 bits deep. That means resolutions of 0.5°C, 0.25°C, 0.125°C, and 0.0625°C!
  • Converts temperature to 12-bit digital word in 750mS (higher accuracy takes more time to measure!)
  •

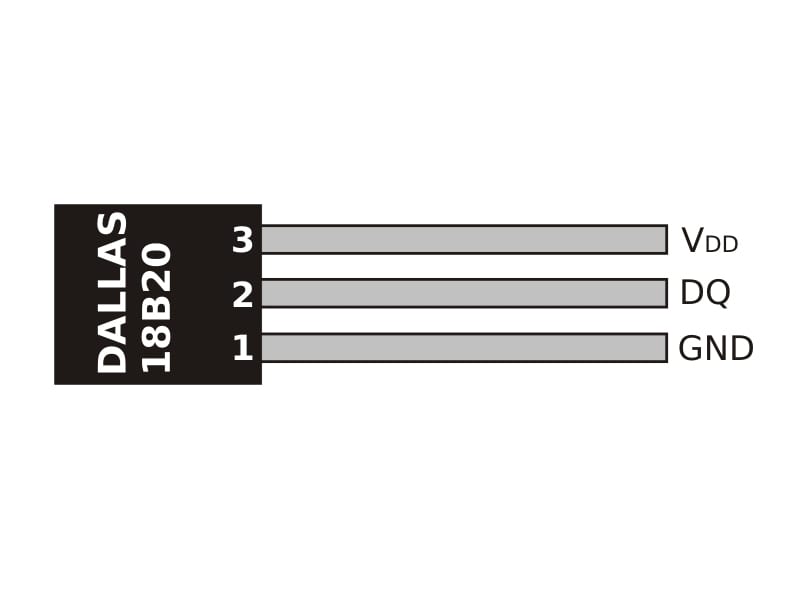

Packaged in a TO-92 (transistor-like) package, all you need is 2 wires - ground and DQ (I/O & power), or you can use the Vdd line to give it regular power input.
