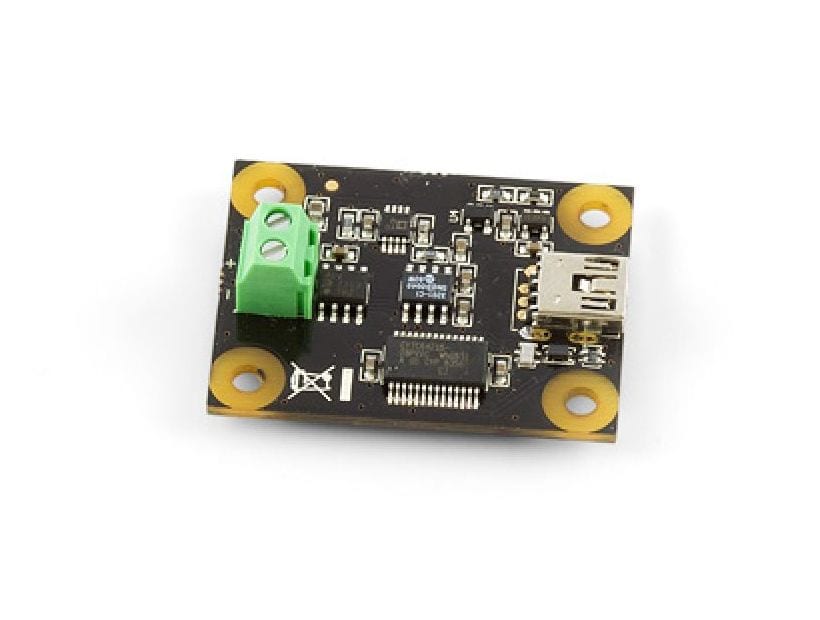

PhidgetTemperatureSensor Thermocouple 1-Input

33510

55.00 USD
Qty
Price
1
$55.00 ea.

Thermocouples are widely used to measure extreme temperatures impossible to measure with other types of sensors.


Description [Hide]

J, K, E and T thermocouples are directly supported in the library and return the measured temperature in °C.

It is possible to interface other thermocouple types by converting the measured potential returned by the Temperature Sensor into Celsius using the appropriate tables; the formula and links to the tables are described in the 1051 Product Manual.

Very long thermocouples are okay (even 100m), but if there is measurement stability issues or USB resets, ferrite beads can be added to the thermocouple wire close to the Phidget Temperature Sensor. See our tutorial on Addressing EMI Issues.

Product Features

  • Supports one J, K, E and T-type thermocouple
  • Outputs temperature in degrees Celsius
  • Uses terminal blocks to interface to inexpensive thermocouples with stripped leads
  • Connects directly to a computer’s USB port

Product Specifications

Power

Device Current Consumption ~25mA
USB Device Voltage 4.75 - 5.25 VDC
Operating Temperature 0 - 70°C

Accuracy

Temperature Update Rate 25 samples/second
Ambient Temperature Resolution ±0.5°C
Thermocouple Resolution (°C) 0.1 °C (K-type @ 25°C
Thermocouple Resolution (μV) 4μV
Thermocouple Accuracy 2°C (K-type)
Typical Noise 0.02°C standard deviation)

Typical Thermocouple Temperature Range

K-type -200°C to +1250°C
J-type 0°C to +750°C
T-type -200°C to +350°C
E-type -200°C to +900°C

Comes Packaged With

  • Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)
