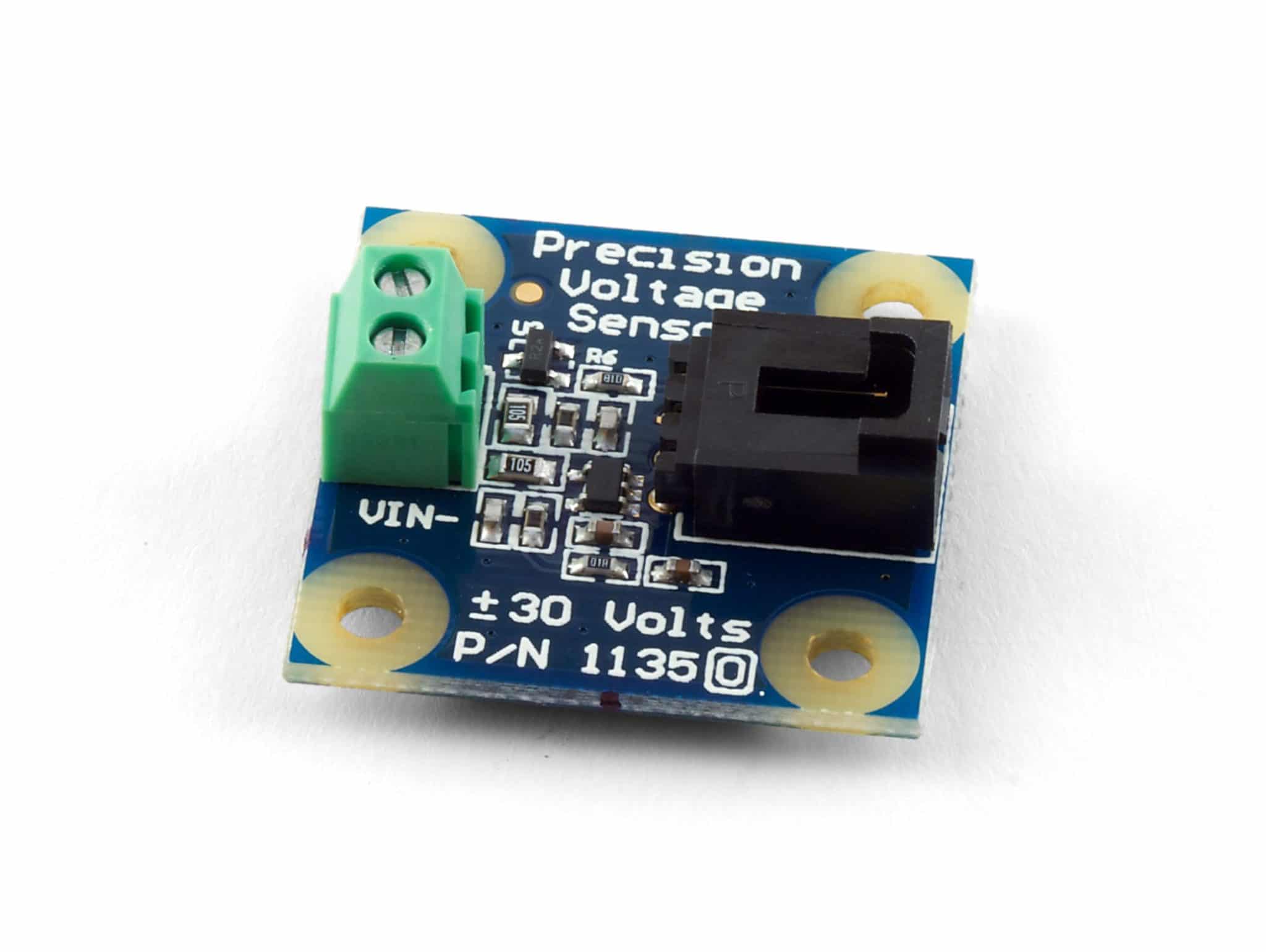

Phidgets Voltage Sensor
33430
The Voltage Sensor measures the differential voltage between the input terminals and outputs the difference proportionally.
Additional Information [Hide]
The Voltage Sensor measures the differential voltage between the input terminals and outputs the difference proportionally. The maximum differential voltage that can be measured accurately is ±30V.
Product Features
- Measures voltage from -30V to +30V
- Typical Error: ±0.7%
- The sensor is Non-Ratiometric.
Product Specifications
| Characteristic | Value |
|---|---|
| Current Consumption | 3.6mA |
| Input Impedance | 1MegaOhm |
| Recommended Max Difference between Vin+ and Vin- | 30V |
| Absolute Maximum difference between Vin+ and Vin- | 35V |
| Input CMR | 40V |
| Output Range | 0 to 5V |
| Min/Max error | ±2% |
| Typical Error | ±0.7% |
| Maximum Offset | ±100mV |
- [Documentation]: Phidgets Voltage Divider Manual
