PhidgetLED-64 Advanced

33290

Qty
Price (CAD)
1
$125.00 ea.
2+
$118.75 ea.

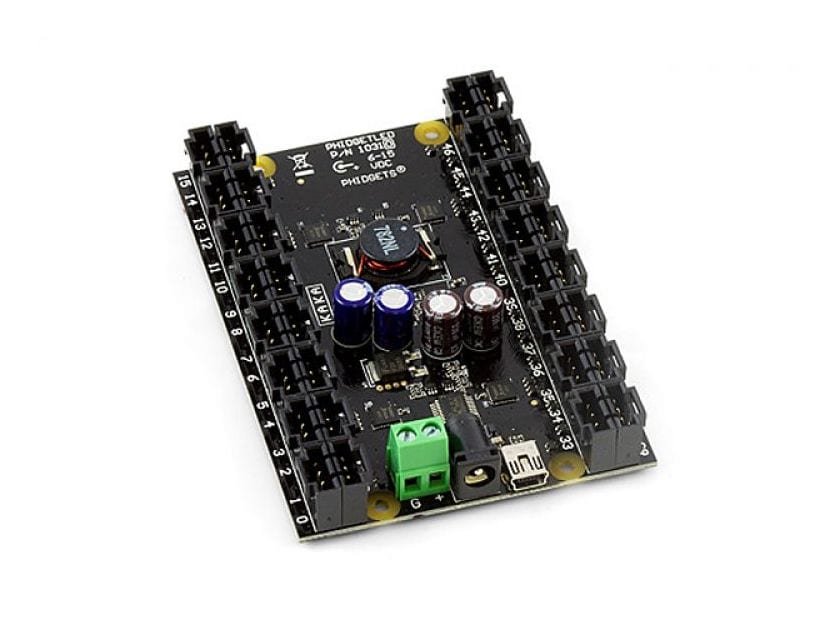

The PhidgetLED 64 allows you to independently control 64 Light Emitting Diodes. Each LED can be turned on and off, and its brightness controlled.


Additional Information [Hide]

The PhidgetLED 64 allows you to independently control 64 Light Emitting Diodes. Each LED can be turned on and off, and its brightness controlled.

Most standard LEDs with colors such as red, amber, orange, yellow, and green have forward voltages below 2.75 Volts, and can be used with the PhidgetLED by simply soldering them to a connector-wire and inserting the wire into any PhidgetLED board connector. The forward voltage will default to 2.75V, and the maximum current defaults to 20mA.

The 1031 is capable of adjusting the forward voltage supplied to the LEDs with 1.7, 2.75, 3.9 and 5 volts settings allowing you to properly drive blue, white, violet, ultra violet and purple LEDs.

Bi-color LEDs, tri-color LEDs, seven-segment displays, bar LEDs, and other array-style arrangements of LEDs can also be used with the 1031.

The maximum current can be set to 20, 40, 60 or 80mA, and applies to all LEDs. The API allows the brightness control of individual LEDs.

Comes packaged with:

Note: Cut the Double Ended cables in half and solder the cut end to the LED. Check the Installing the Hardware section of the Product Manual for more detailed information.

Product Specifications

Characteristic Value
Brightness Changes 700 updates/second
LED On/Off 3000 updates/second
Selectable Output Anode Voltages 1.7VDC, 2.75VDC, 3.0VDC, 5VDC
Selectable Output Current (max) (VF ≤ 3.0V) 20mA, 40mA, 60mA, 80mA
LED Forward Voltage (max) 5VDC
USB Voltage 4.5 to 5.25VDC
Device Current Consumption 195mA
External Power Supply Voltage (min) 6VDC
External Power Supply Voltage (max) 15VDC
Externally Supplied Current Consumption (max) VDC = 6V 5.2A@80mA/LED
3.9A@60mA/LED
2.6A@40mA/LED
1.3A@20mA/LED
Externally Supplied Current Consumption (max) VDC = 15V 2.2A@80mA/LED
1.6A@60mA/LED
1.0A@40mA/LED
0.5A@20mA/LED
