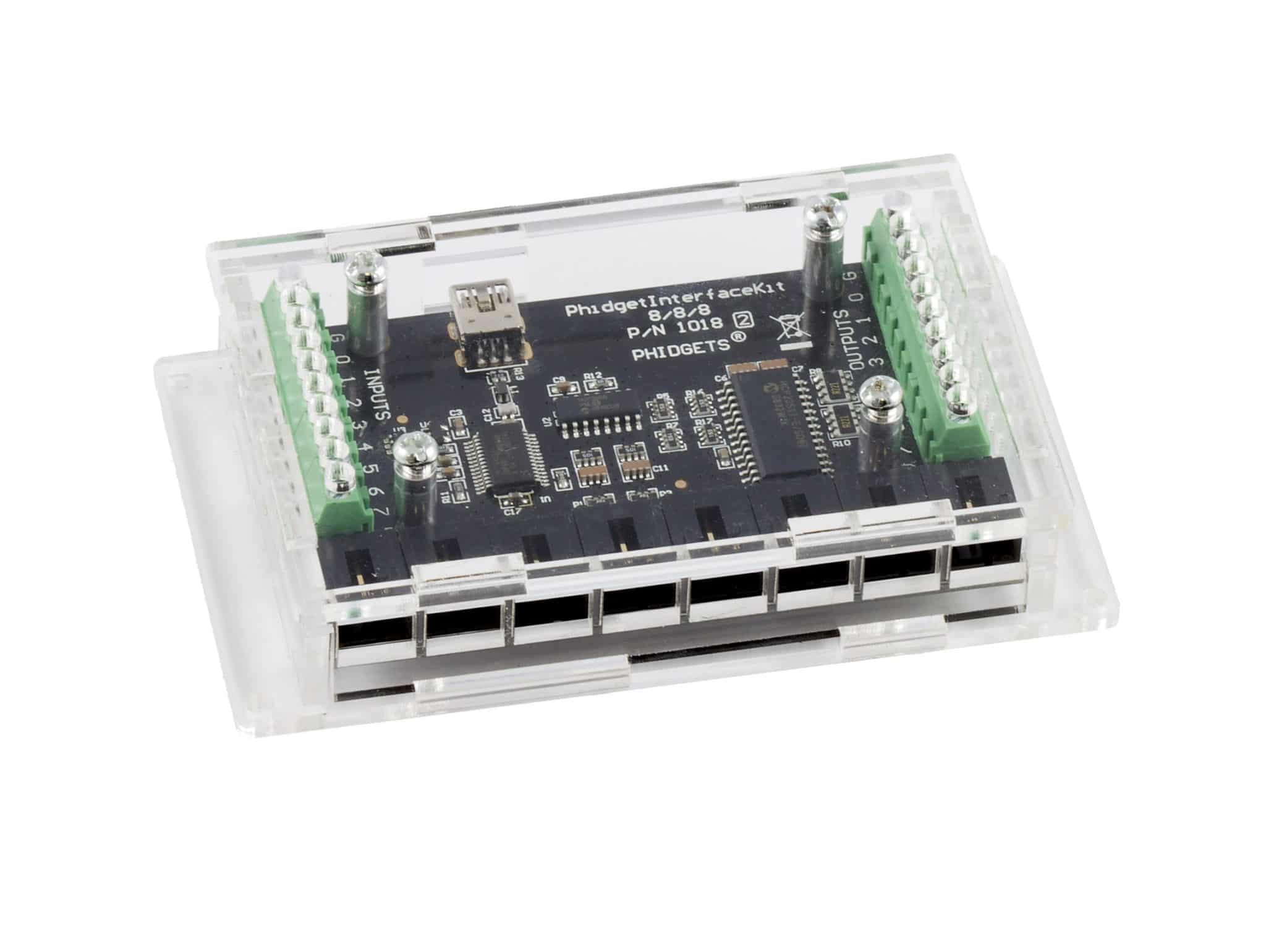

The 3804 Enclosure is designed to protect the PhidgetInterfaceKit 8/8/8 while giving you access to all terminals and connectors through openings in the enclosure.

Description ^[Hide]

The 3804 Enclosure is designed to protect the Rev 2 version of the 1018 – PhidgetInterfaceKit 8/8/8 while giving you access to all terminals and connectors through openings in the enclosure. You can plug and unplug cables, connect and disconnect devices, without having to open the enclosure.

Note: The Phidget board is not included with the enclosure and must be purchased separately.

Product Features

This clear acrylic enclosure protects your Phidget and is assembled with a Phillips screwdriver.

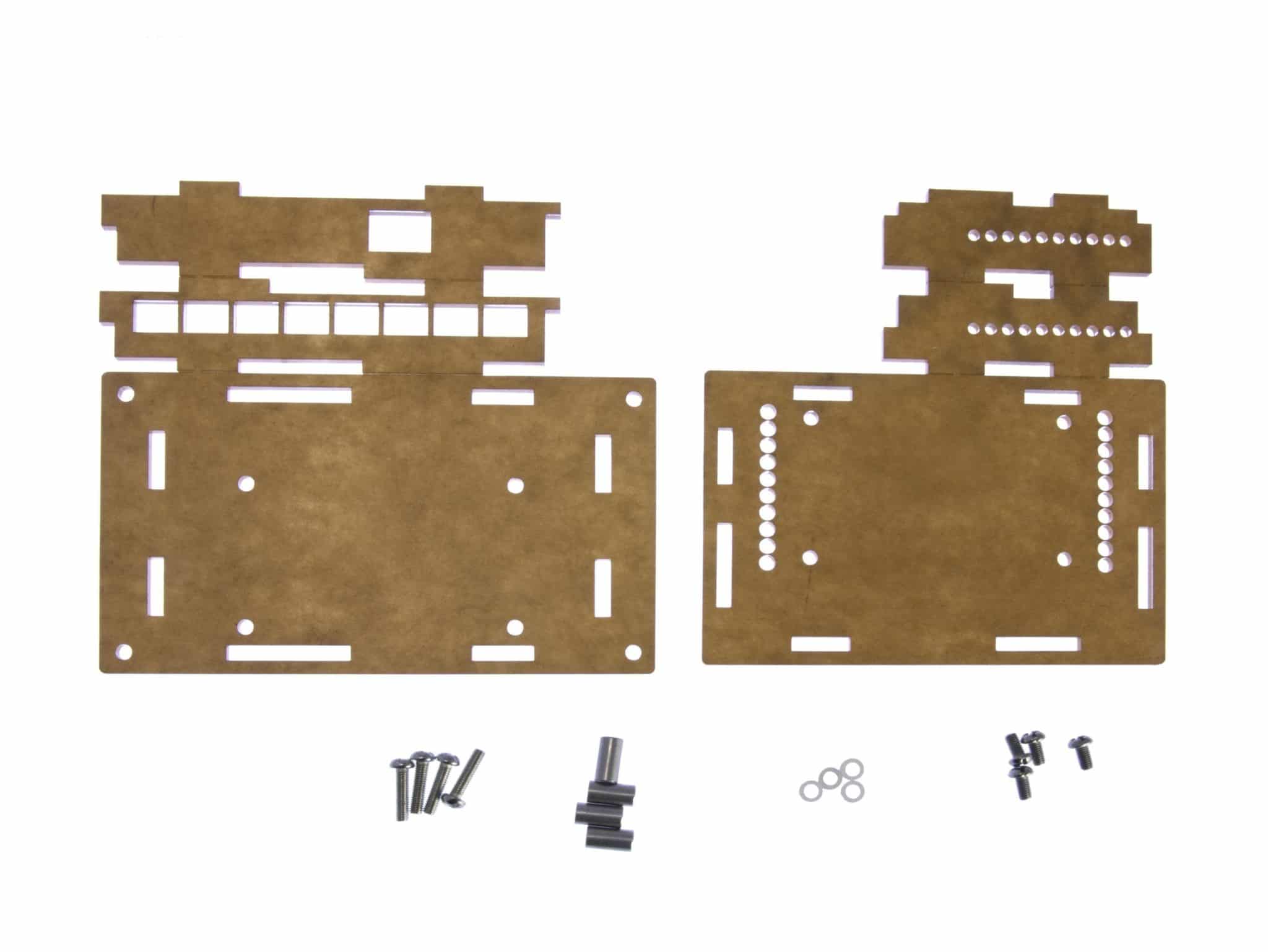

Package Includes

6 clear acrylic pieces
Mounting Hardware (Nuts, bolts, spacers)

Required Tools

Small Phillips screwdriver

Product Specifications

Fits Board Revision 2
Material: Clear Acrylic
Thickness: 3.2 mm
IP Rating: 20

Documentation ^[Hide]

[Documentation]: Mechanical Drawing
[Documentation]: Assembly Instructions
