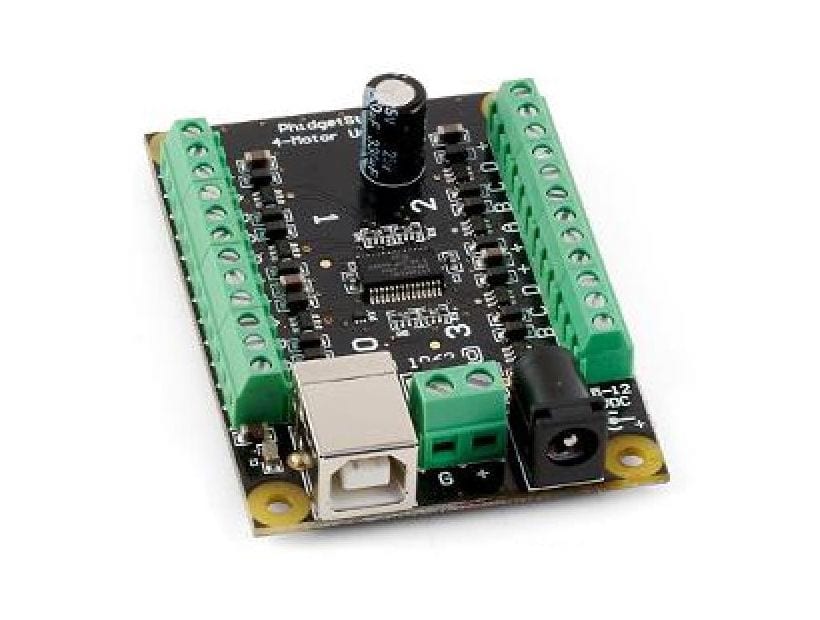

Phidgets Stepper motor controller - Unipolar 4-Motor

33145

75.00 USD
Qty
Price
1
$75.00 ea.

The PhidgetStepper Unipolar allows you to control the position, velocity, and acceleration of up to 4 unipolar stepper motors.


Description [Hide]

The PhidgetStepper Unipolar allows you to control the position, velocity, and acceleration of up to 4 unipolar stepper motors. It can be used in applications that require precise positioning and continuous rotation, at low cost.

Specifications:

  • Position Resolution: 1/2 step (40-bit signed)
  • Upper Position Limit: 2^39 - 1 1/2 steps
  • Lower Position Limit: -(2^39 - 1) 1/2 steps
  • Velocity Resolution: 0.75 1/2 steps/second (9-bit)
  • Velocity Limit: 383.25 1/2 steps/second
  • Acceleration Resolution: 140.625 1/2 steps/second2 (6-bit)
  • Acceleration Limit: 8859.375 1/2 steps/second2

Comes packaged with a 180cm USB Cable, a Getting Started Manual, a mounting hardware kit, and a sheet of labels.

For more information see:



Note: Requires libraries version 2.1.4 or later.
