PhidgetAdvancedServo 1-Motor

33132

40.00 USD
Qty
Price
1
$40.00 ea.

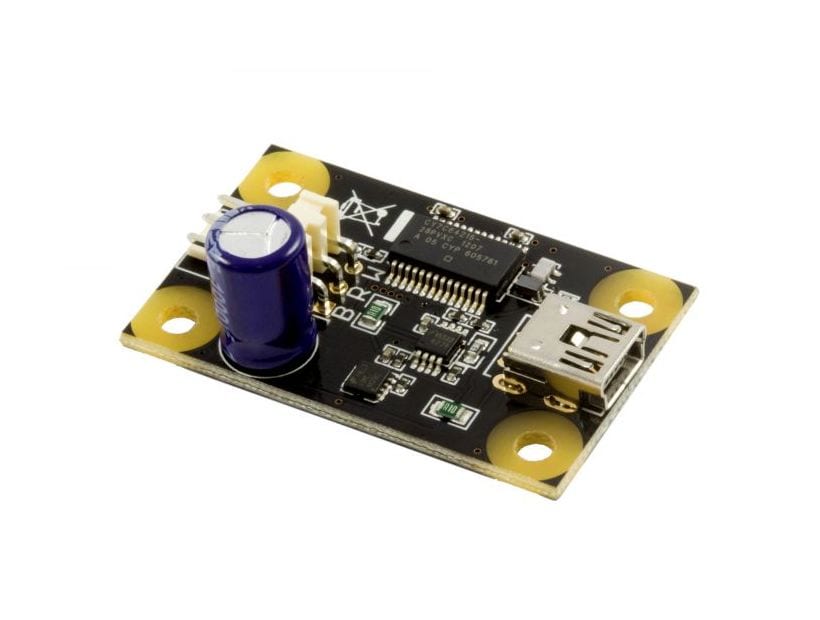

The 1066_1 PhidgetAdvancedServo 1-Motor allows you to control the position, velocity, and acceleration of one RC servo motor.


Description [Hide]

Updated Product!  Those guys at Phidgets are always tweaking and improving their products. Here's another example - the 1-servo controller!

Product Features

  • Control the position, velocity, and acceleration of one RC servo motor.
  • Powered solely by the USB cable – no additional power source is required!
  • High resolution - 125 steps per degree.
  • Powers servo motors of up to 450 mA.
  • Connects directly to a computer’s USB port
  • Comes packaged with a 180cm USB Cable, mounting hardware kit

The PhidgetAdvancedServo 1-Motor allows you to control the position, velocity, and acceleration of one RC servo motor. It's powered solely by the USB cable – no additional power source is required. It also has a high resolution of 125 steps per degree; it measures the power consumption of the servo, and powers servo motors of up to 450mA. The AdvancedServo connects directly to a computer’s USB port.

Product Specifications:

  • Position Resolution: 0.0078125º (15-bit)
  • Upper Position Limit: 233º
  • Lower Position Limit: -22.9921875º
  • Velocity Resolution: 0.390625º/s (14-bit)
  • Velocity Limit: 6400º/s
  • Acceleration Resolution: 19.53125º/s2 (14-bit)
  • Acceleration Limit: 320000º/s2

Programming Resources

Documentation [Hide]
