Wio Link

30316

14.00 USD
Qty
Price
1
$14.00 ea.

ESP8266, essentially in a tailored suit. It's so much easier to use with Grove-compatible wiring.


Description [Hide]

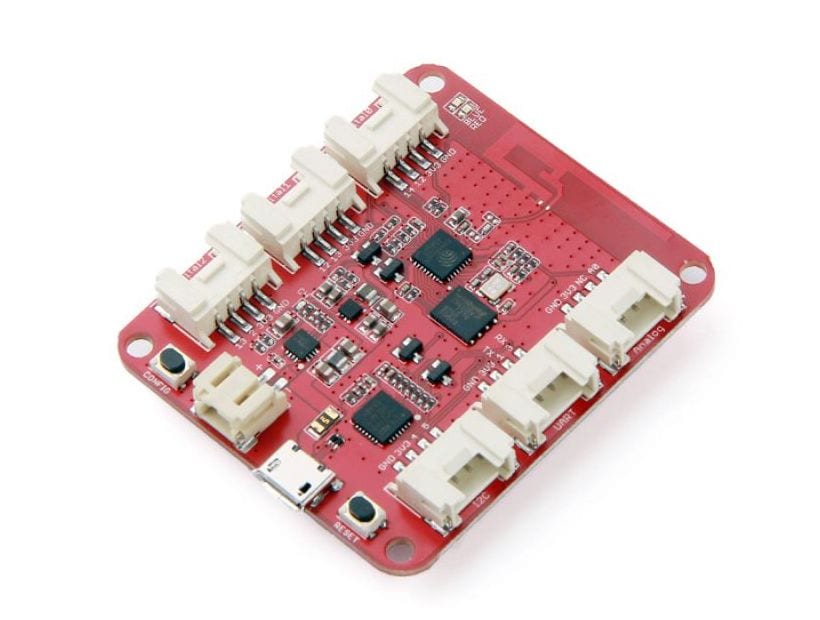

Wio Link is designed to simplify your IoT development. It's an ESP8266 based open-source Wi-Fi development board that allows you to create IoT applications by virtualizing plug-n-play modules to RESTful (who comes up with these acronym puns?) APIs with mobile APPs.

The traditional methodology of building IoT applications consists of electronic engineering, micro-controller programming, network programming, IoT protocols handling and application development. Every step involves various hardware and software knowledge and challenges.

This time, we define a new way to create IoT applications. No hardware programming. No breadboard. No jumper wires. No soldering. 3 steps. 5 minutes. Build your own IoT application.

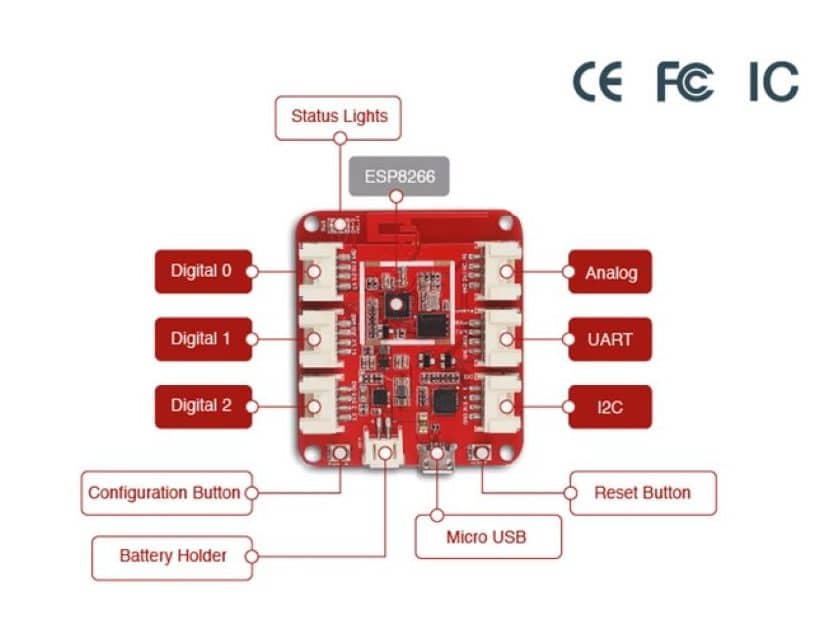

Features:

    • Visual Configuration
    • OTA (Over-The-Air) Firmware Updates
    • Plug-n-Play Groves
    • IFTTT Application
    • Android & iOS APPs
    • RESTful APIs


Specifications:

    • Wi-Fi Network Protocol: 802.11b/g/n
    • Wi-Fi Encryption Technologies: WEP/TKIP/AES
    • Input Voltage´╝ÜBattery holder: 3.4~4.2V; MICRO USB: 5V
    • Output DC Current: 1000mA MAX
    • Operating Voltage : 3.3V
    • Charge Current: 500mA MAX
    • Flash Memory: 4MByte
    • Size:  55mm*48mm
    • Weight: 26g
    • CE/FCC/IC Certified



Package includes:
    •1 x  Wio Link
    •1 x USB cable
