Raspberry Pi Relay Board v1.0

30312

25.00 USD
Qty
Price
1
$25.00 ea.

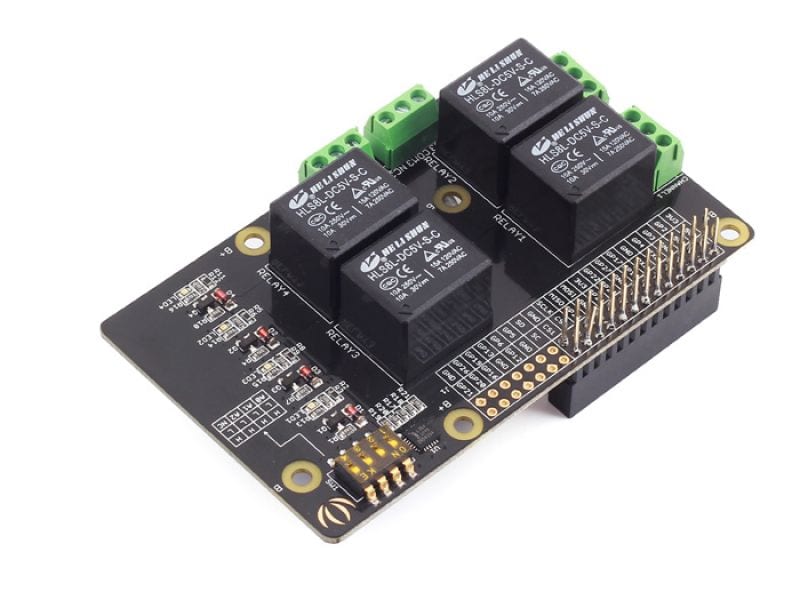

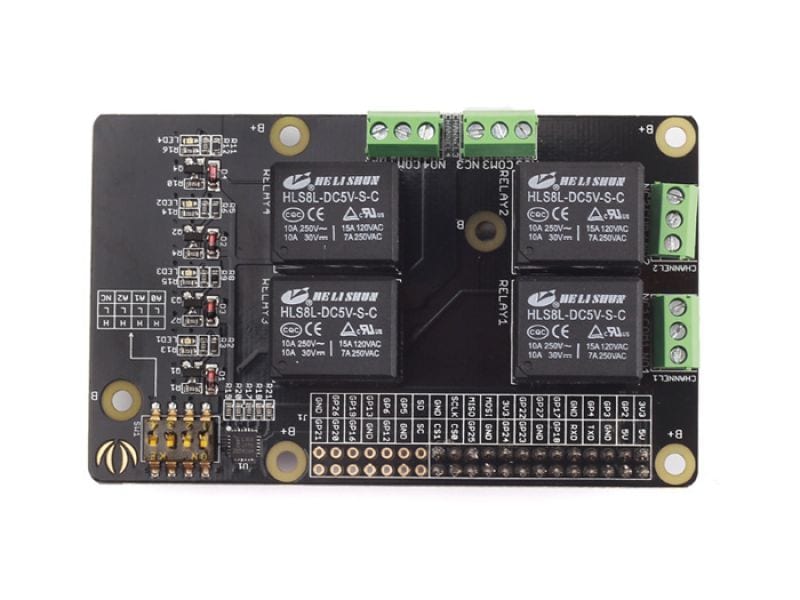

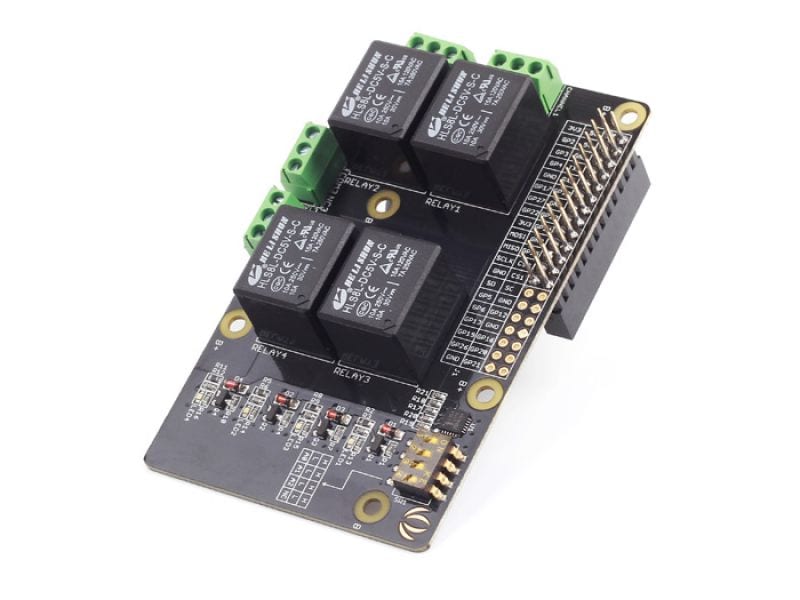

The Relay Shield contains four high-quality relays and provides NO/NC connections to control high current loads.


Description [Hide]

This is a nice solution for controlling devices that can't be directly controlled by I2C bus. The shield form factor enables smooth direct connection with the Raspberry Pi. The shield also has LED indicators show the on/off state of each relay.

Features

  • Raspberry Pi compatible

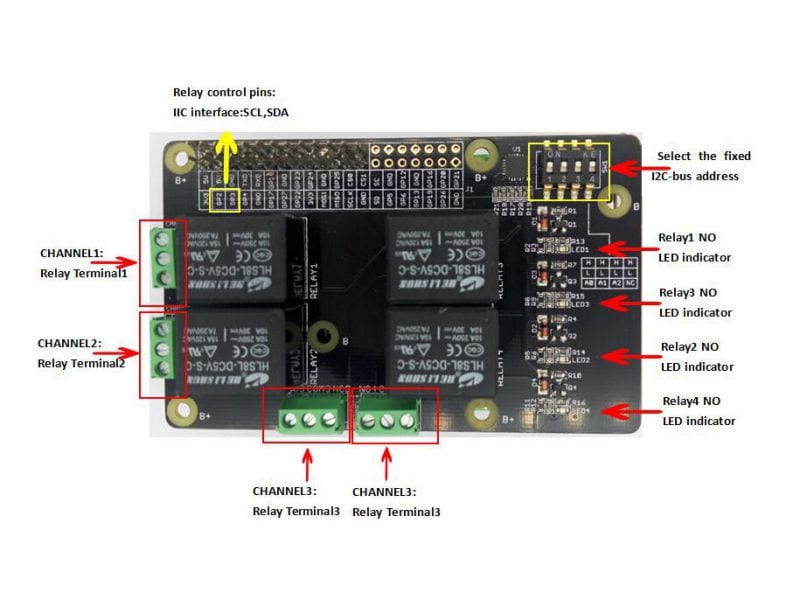

  • Interface: I2C,Three hardware SW1 (1, 2, 3) select the fixed I2C-bus address
  • Screw terminals on relay
  • Standardized shield shape and design
  • LED status indicators for each relay
  • COM, NO (Normally Open), and NC (Normally Closed) relay pins for each relay
  • High quality relays

Specifications

  • Compatible: Raspberry Pi 1; Other mainboards via jumpers;
  • Power supply: 4.75~5.5V;
  • Max Switching Voltage: 30VDC/250VAC;
  • Max Switching Current: 15A;
  • Frequency: 1Hz;
  • Dimensions: 91.20 * 56.15*32mm;
  • Weight: 83 g
