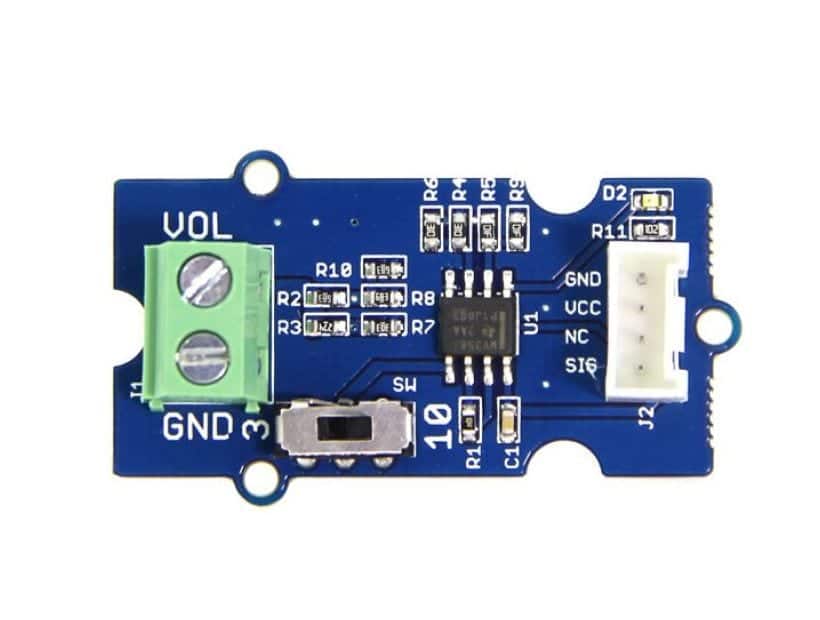

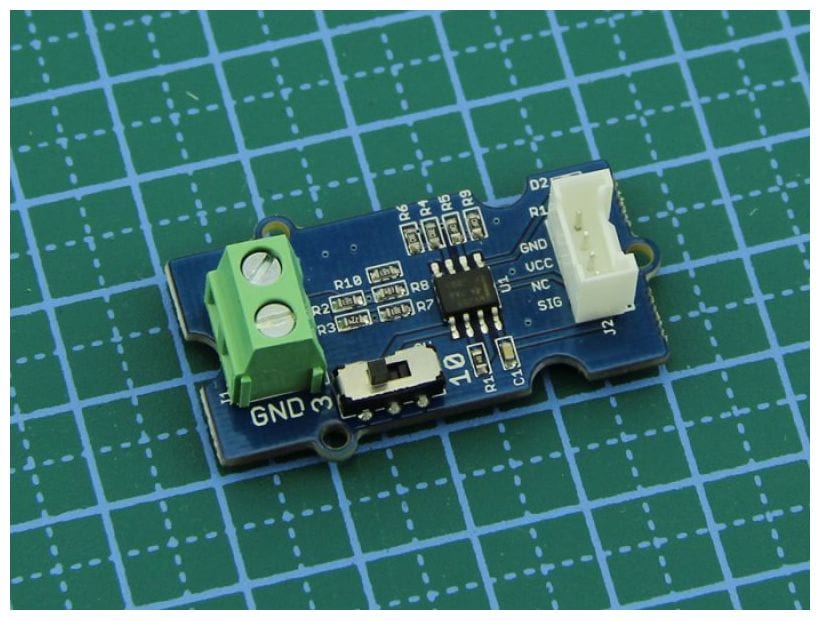

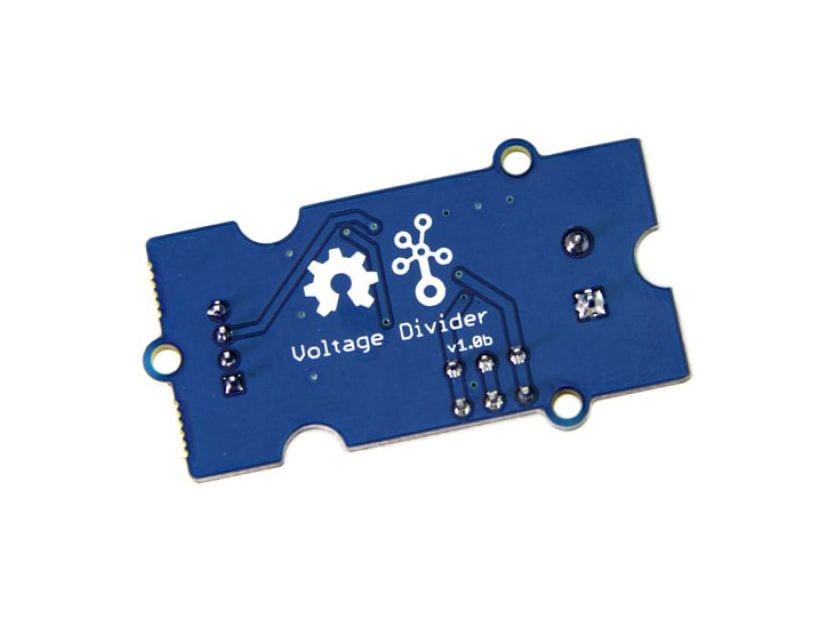

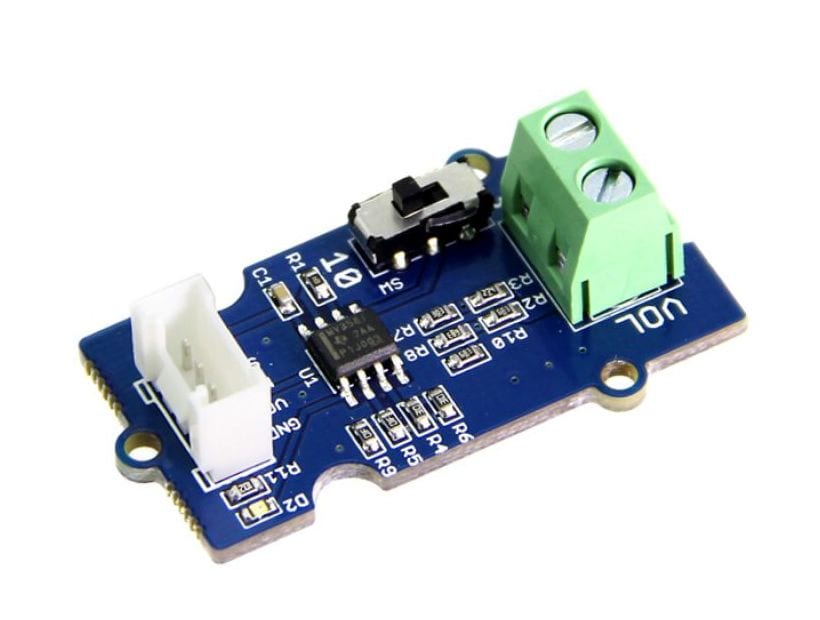

Grove - Voltage Divider

29154

5.90 USD
Qty
Price
1
$5.90 ea.

Easy way to measure external voltages within 1-43V.


Description [Hide]

The Grove Voltage Divider provides an interface to measure external voltages without the need to create a resistor ladder.  Voltage gain is adjustable using the onboard switch.

Features

  • External Voltage Interface and Grove Interface
  • Easy to use
  • Adjustable gain

Specifications

  • Working Voltage: (min) 4.7V, (typical) 5.0V, (max) 5.3V
  • Measurement Accuracy:
  • External Voltage Range:
    • (Position 3): (min) 0.3V, (max) 12.9V
    • (Position 10): (min) 1.0V, (max) 43V
  • Dimensions: 24mm x 20mm

Please see the SeeedStudio wiki for more information.
