Description

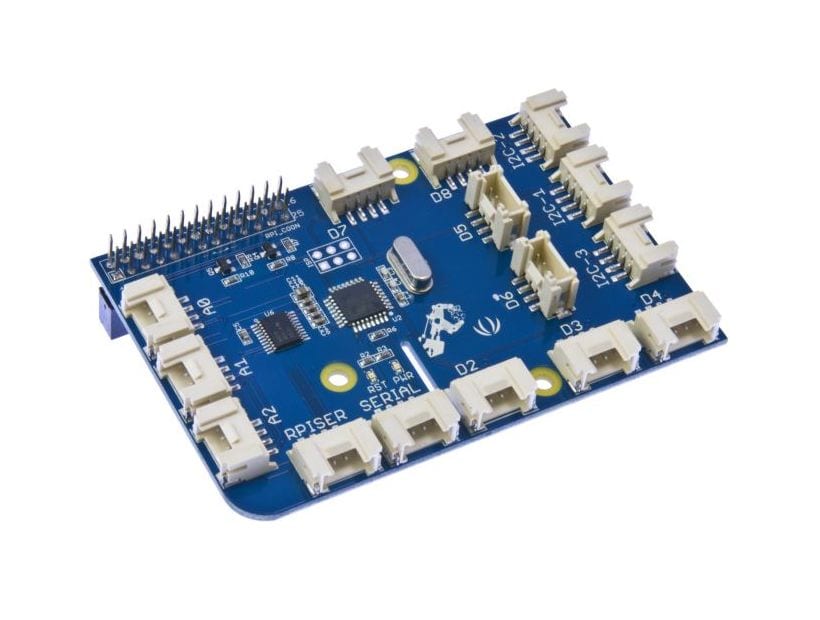

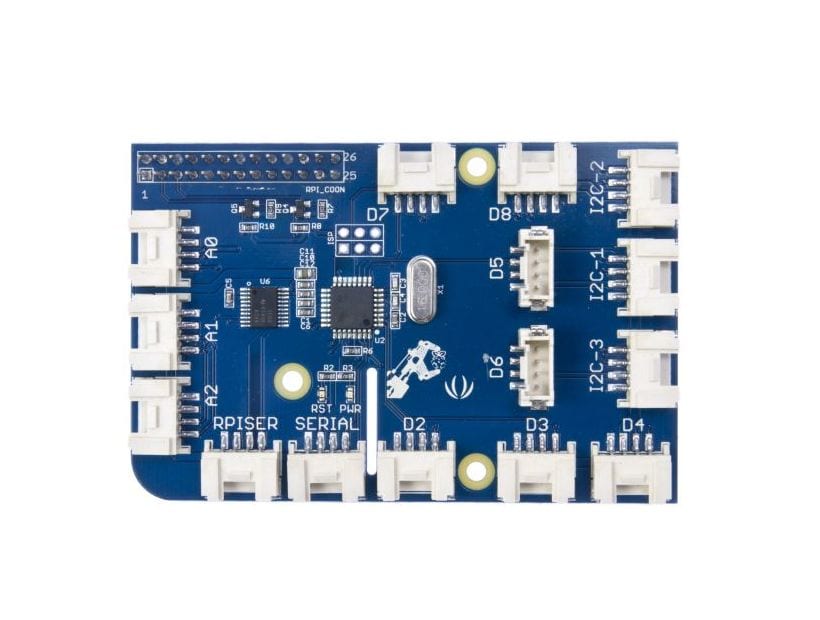

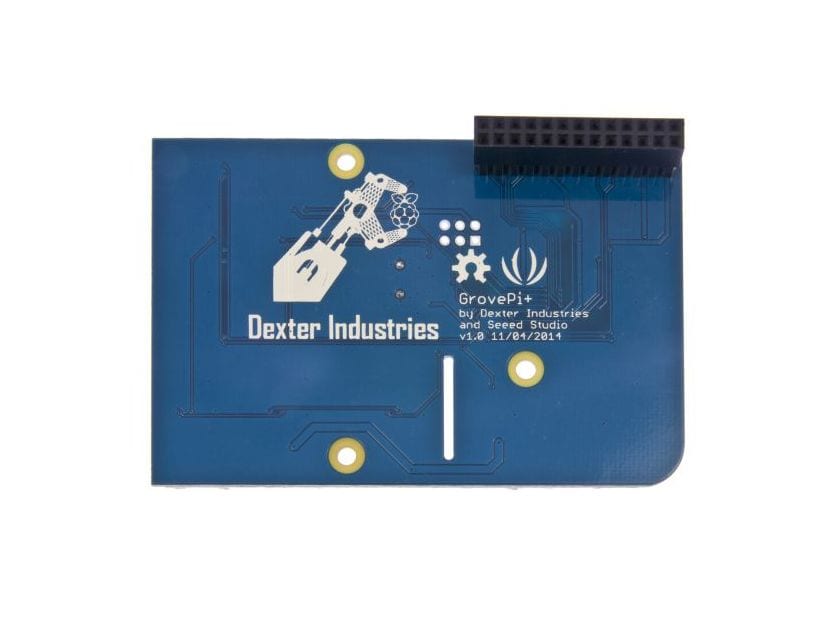

GrovePi+ is a system with 15 Grove 4-pin interfaces that brings Grove sensors to the Raspberry Pi. It is the newest version perfectly compatible with Raspberry model B/B+ and A+. It’s compatible with the Pi2 and Pi3 with minor update tweaks.

GrovePi+ is an easy-to-use and modular system for hardware hacking with the Raspberry Pi, no need for soldering or breadboards: plug in your Grove sensors and start programming directly. Grove is an easy to use collection of more than 100 inexpensive plug-and-play modules that sense and control the physical world. By connecting Grove Sensors to the Raspberry Pi, it empowers your Pi in the physical world. With hundreds of sensors to choose from Grove families, the possibilities for interaction are endless.

Please note: The Raspberry Pi board is not included.

New Features

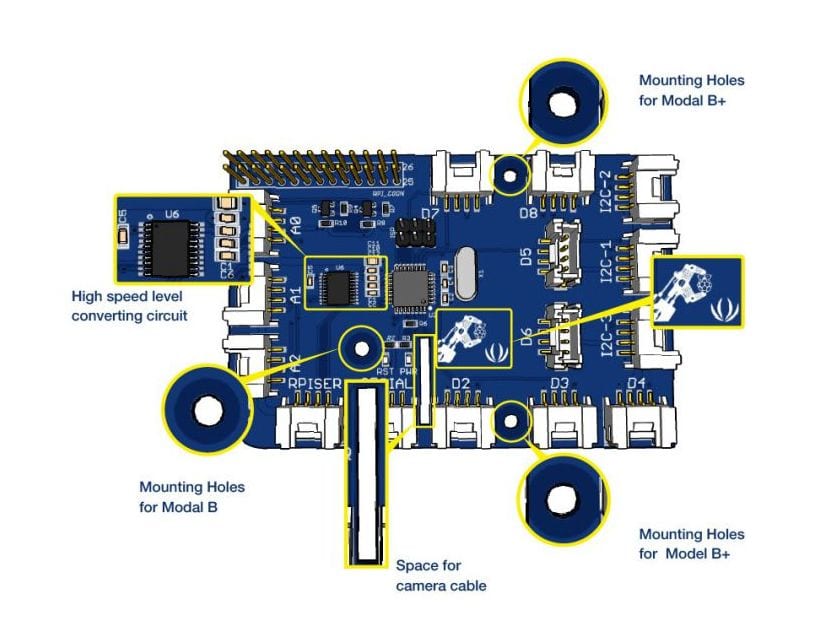

• Compatible with Raspberry Pi B/B+/A+/2 perfectly; Pi2 and 3 with minor software updates
• Faster SPI and higher reliability UART connections
• Easier to assemble camera cables and LCD cables
• Simplified procedures of firmware update

Getting Started

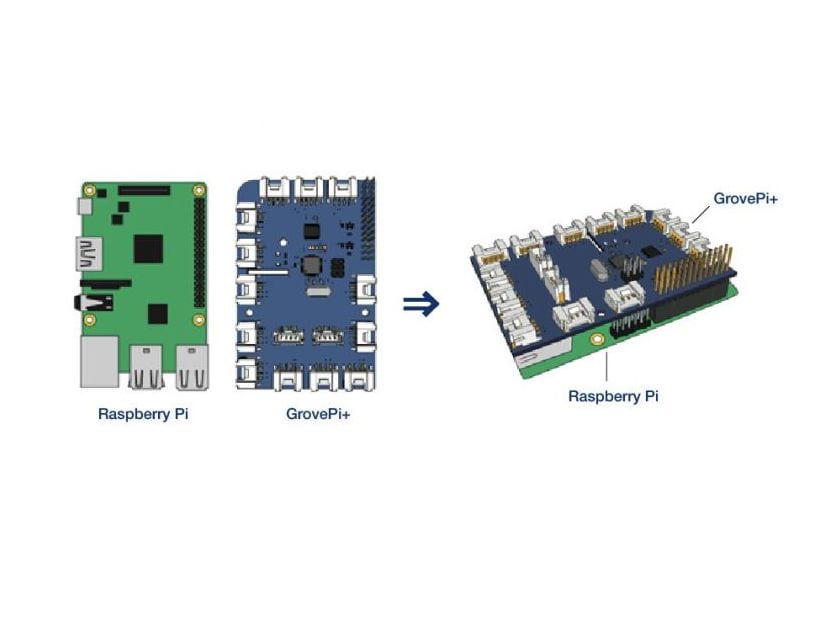

1. Slip the GrovePi+ board over your Raspberry Pi
2. Connect the Grove modules to the GrovePi+ board
3. Upload your program to Raspberry Pi
4. Begin taking in the world data
