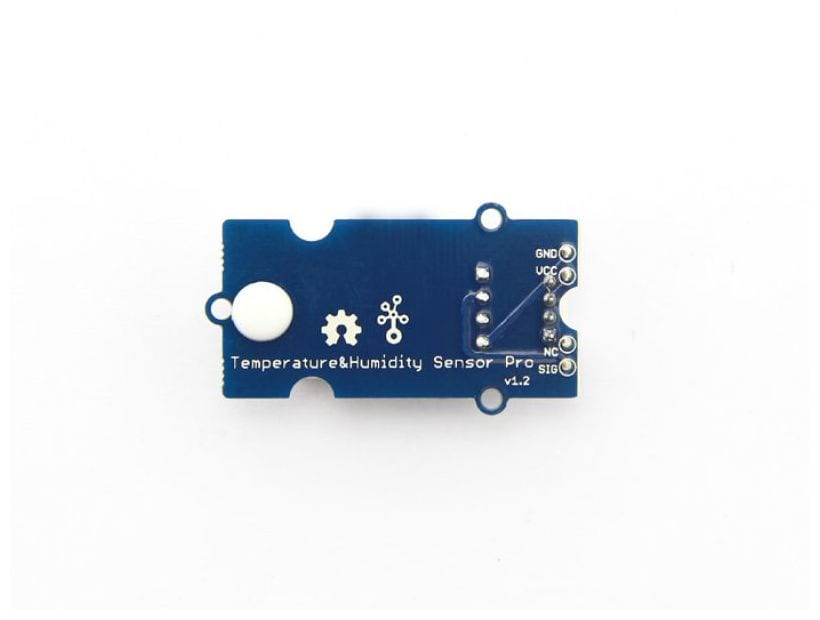

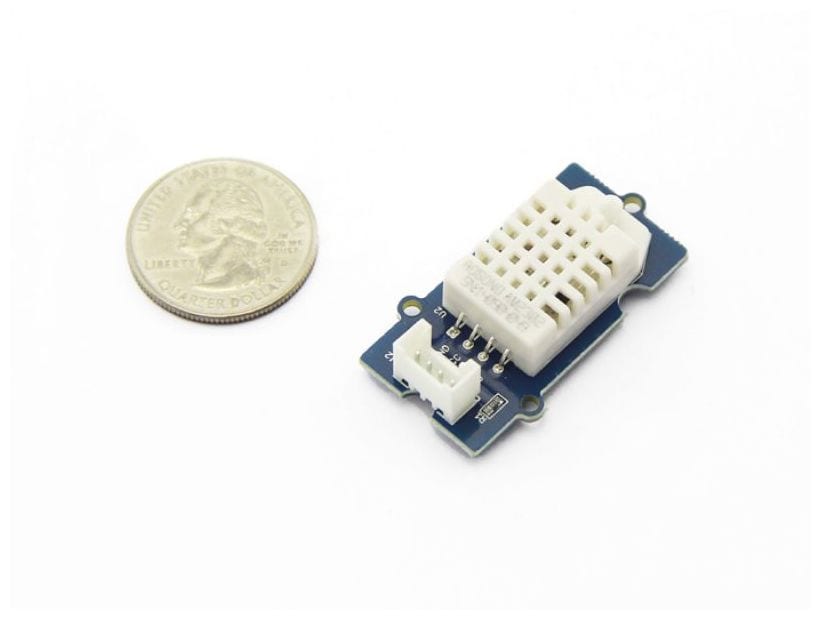

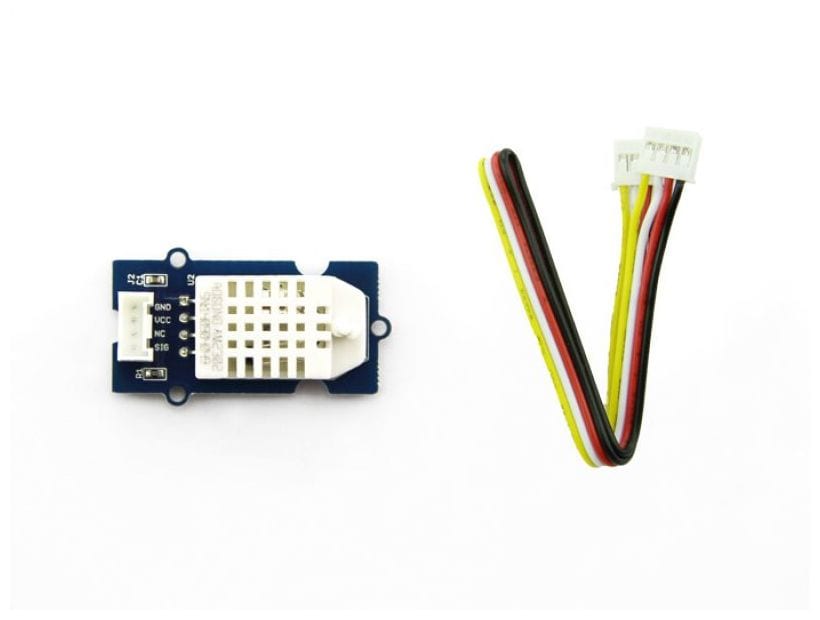

Grove - Temperature & Humidity Pro Sensor

29128

14.90 USD
Qty
Price
1
$14.90 ea.

For more precise environmental measurements using the Grove system.


Description [Hide]

Individually calibrated, these Grove environmental sensors feature 0.5° accuracy and 2% relative humidity accuracy using a negative temperature coefficient (NTC) sensor and capacitive humidity sensor.

Specifications

  • 5 - 99% Relative Humidity Detection Range
  • ±2% Humidity Accuracy, 0.1% Resolution, ±0.3% Repeatability
  • -40 - +80°C (-40 - 176°F) Temperature Detection Range
  • ±0.5%RH / year long-term stability
  • ±0.5° Temperature Accuracy, 0.1° Resolution, ±0.2° Repeatability
  • 3.3 - 6VDC operations
  • 1-1.5mA nominal current draw
  • 40 - 50µA standby current draw
  • 2 second signal collection period
  • 6 - 20s sensor response time (1/e(63%))
