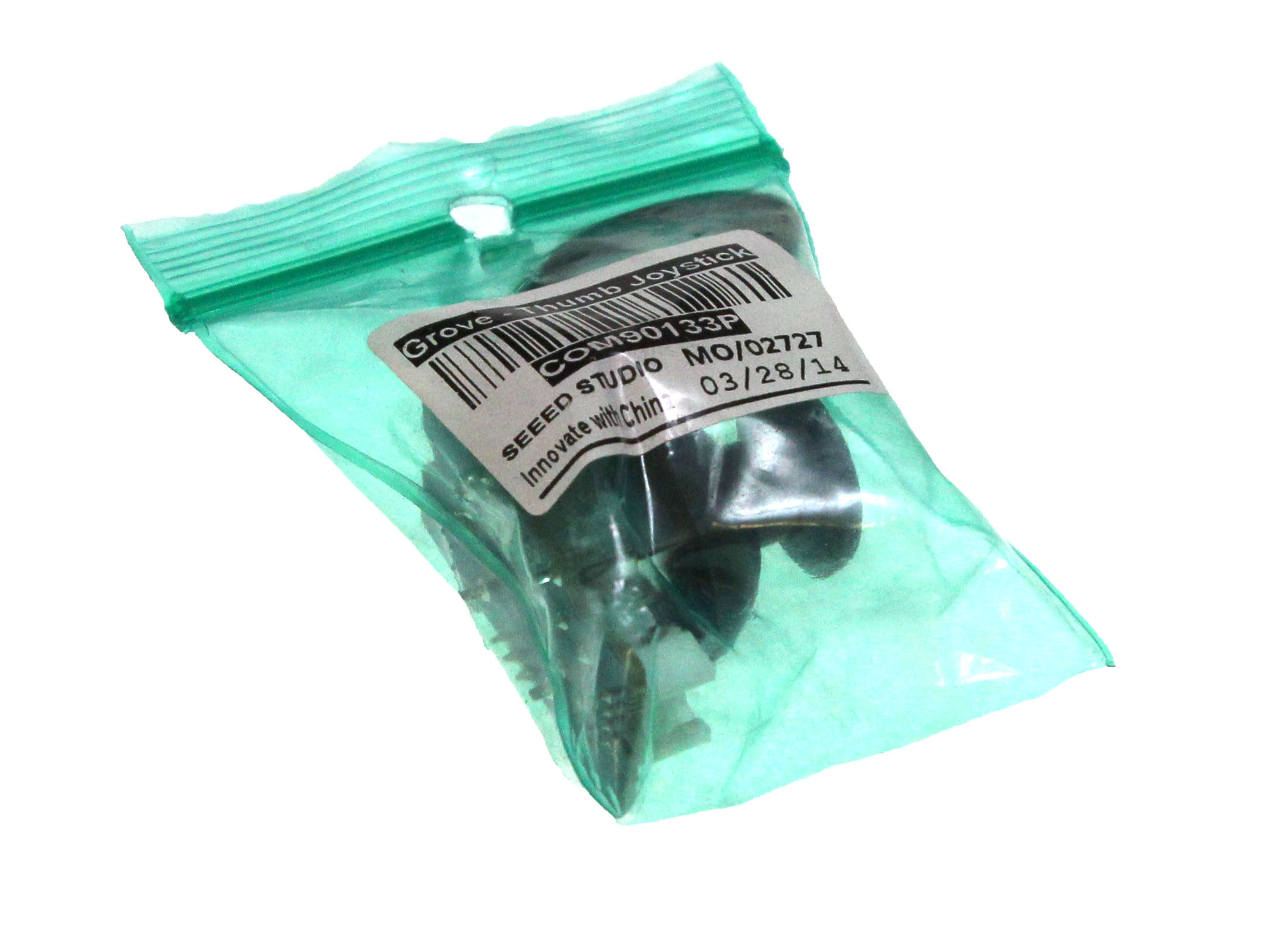

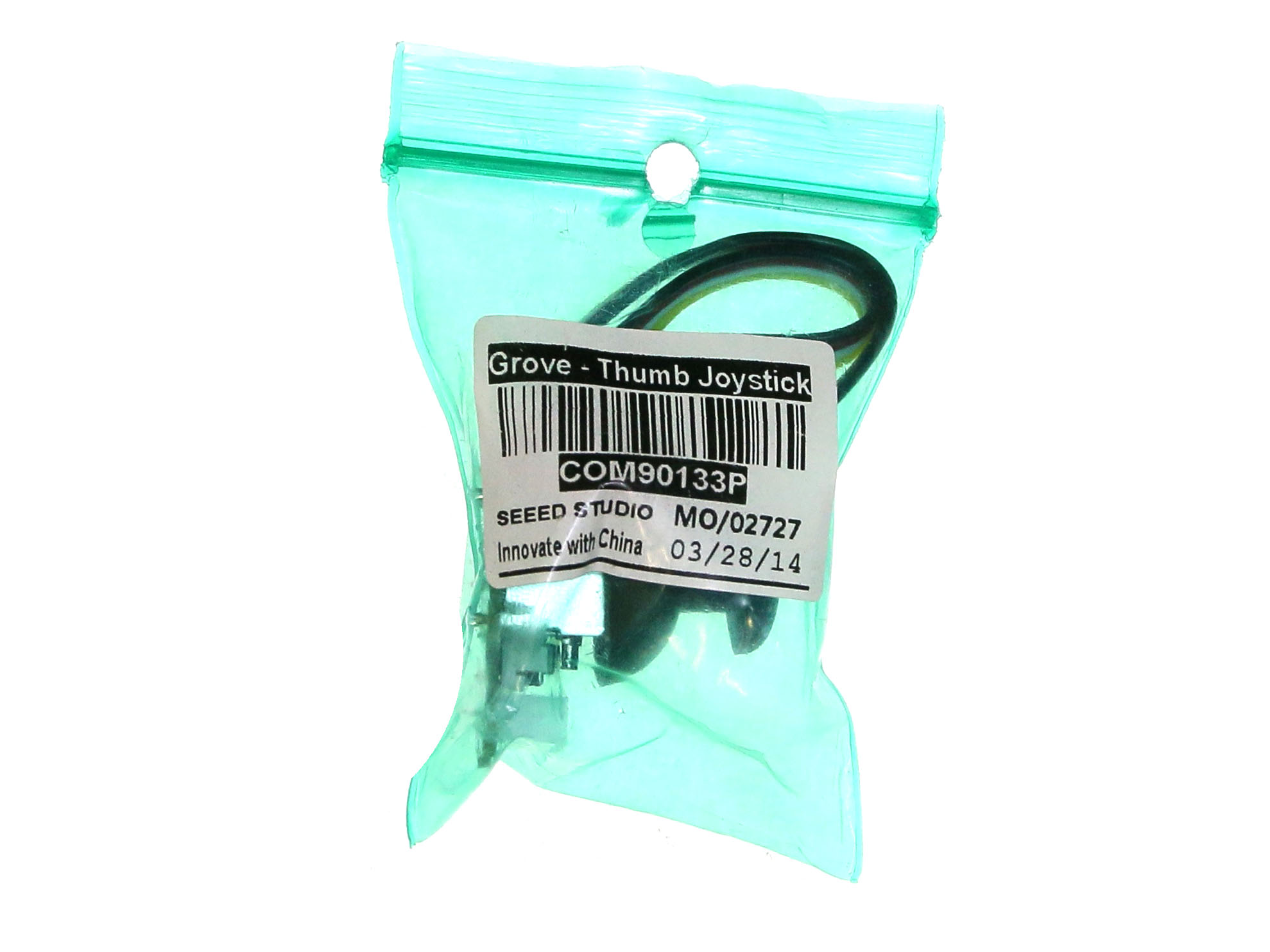

Grove - Thumb Joystick

29114

6.40 USD
Qty
Price
1
$6.40 ea.

A handy Grove module thumb-joystick.


Description [Hide]

Very similar to gaming console joysticks, this two-direction Grove joystick feeds X/Y data back to the analog port of your microcontroller. Also included is the "push button" feature, which triggers a "hard-high" 1023 limit value being fed to the ports, rather than the lower 200~700 values the X/Y potentiometers return.

Specifications:
  • Grove compatible interface (analog)
  • 5V/3.3V Compatible
  • 10k X/Y positioning trimpots
    • X-Axis sample range: 206 min / 516 typ / 798 max
    • Y-Axis sample range: 203 min / 507 typ / 797 max
  • "button" mode returns HIGH signal to ports
