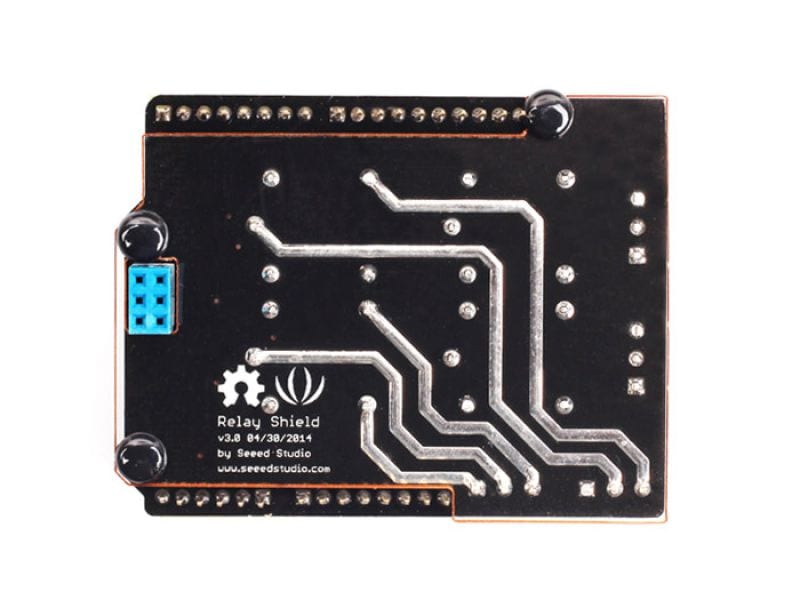

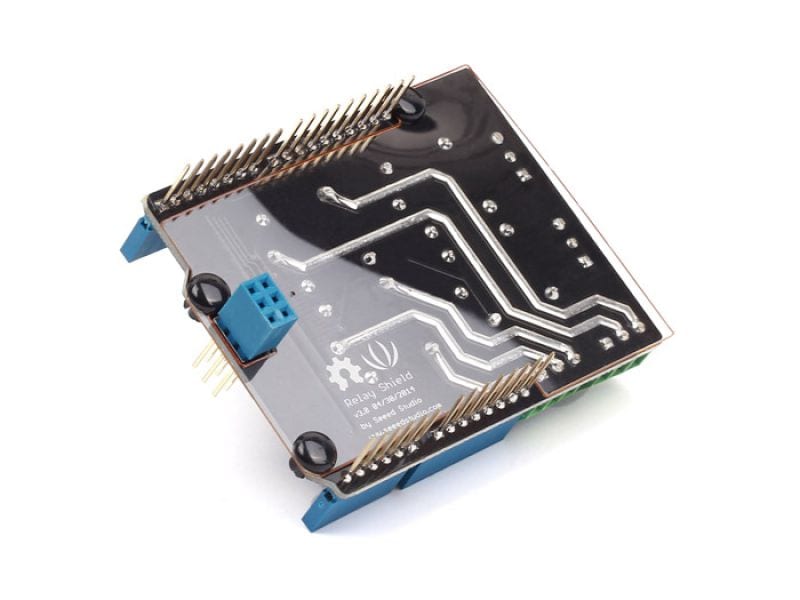

SeeedStudio Relay Shield

29105

24.95 USD
Qty
Price
1
$24.95 ea.

You want to move power? We've got the SeeedStudio Relay Shield that'll let the milliamperes of an Arduino-compatible board to control up to 35VDC 70W on 4 separate channels!


Description [Hide]

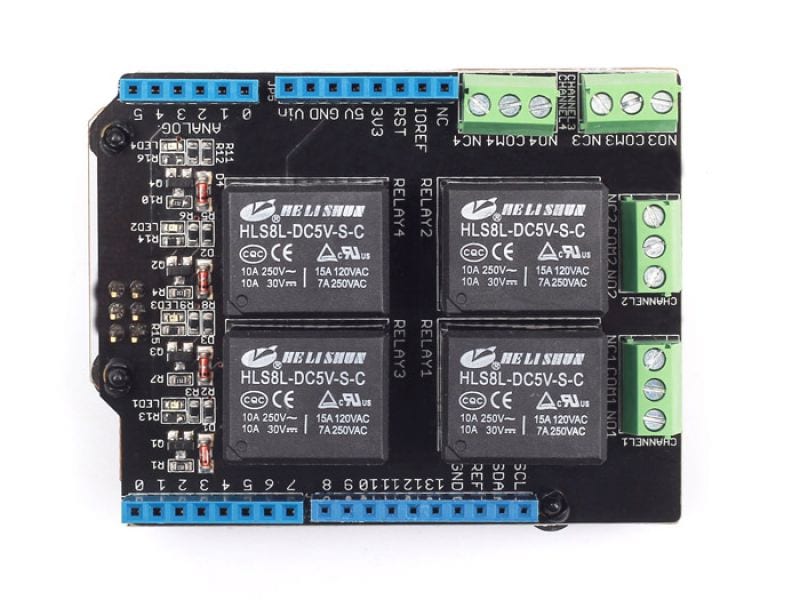

The Relay Shield is an Arduino compatible smart module with 4 mechanical relays providing an easy way to control high voltage.

The max switching power is 70W DC or 35V DC. It can be directly controlled by Arduino/Seeeduino through digital IOs with external 9V supply. With the XBee form socket and 315/433MHz RF module interface, the Relay shield can be remotely controlled, making it easy to use in robotics, industry control, smart houses etc.

Note: Take care the pins on the Shield should not be touched with USB connector of Arduino UNO when they are connected.

Features:

  • Arduino/Seeeduino, Arduino Mega, and Seeeduino Mega compatible
  • 4 mechanical relays with photo-coupled circuit
  • Equipped with screw holes for easy installation
  • Light weight
  • Small form factor
  • Native Arduino/Seeeduino compatibility
  • Extendable

Documentation can be found: here.
