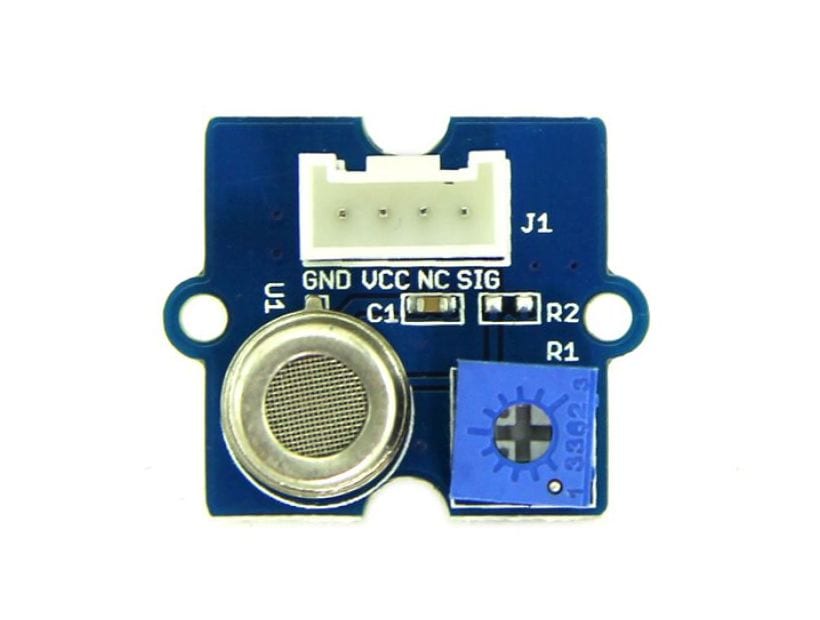

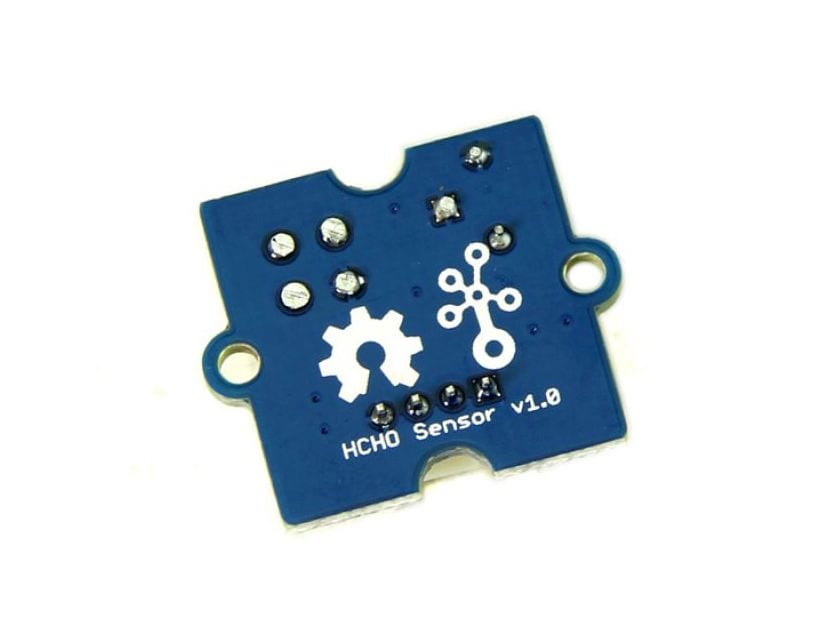

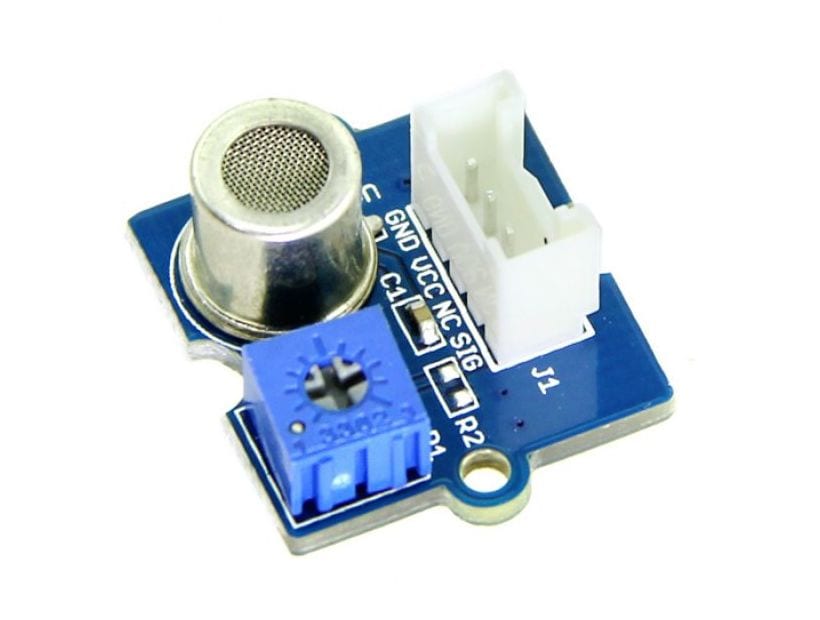

Grove - HCHO Sensor

29102

16.10 USD
Qty
Price
1
$16.10 ea.

The Grove HCHO sensor is a Volatile Organic Compound detector, able to detect down to 1 PPM.


Description [Hide]

This Grove sensor plugs into the Grove environment and gives you the instant ability to read the concentrations of VOCs (Volatile Organic Compounds). Connected to an analog port, it reports concentrations in the 1 to 50 parts-per-million (PPM) range as a resistance reading between 10k and 100k.

Specifications:

  • Grove compatible interface (analog)
  • WSP2110 sensor based
  • Target materials:
    • Formaldehyde (HCHO)
    • Benzene
    • Toluene
    • Alcohol
  • 5VDC
  • Sensitivity: Rs(in air)/Rs(10ppm HCHO)≥5
