Grove - NFC Tag

29098

21.50 USD
Qty
Price
1
$21.50 ea.

Near Field Communications Tag in a Grove module.


Description [Hide]

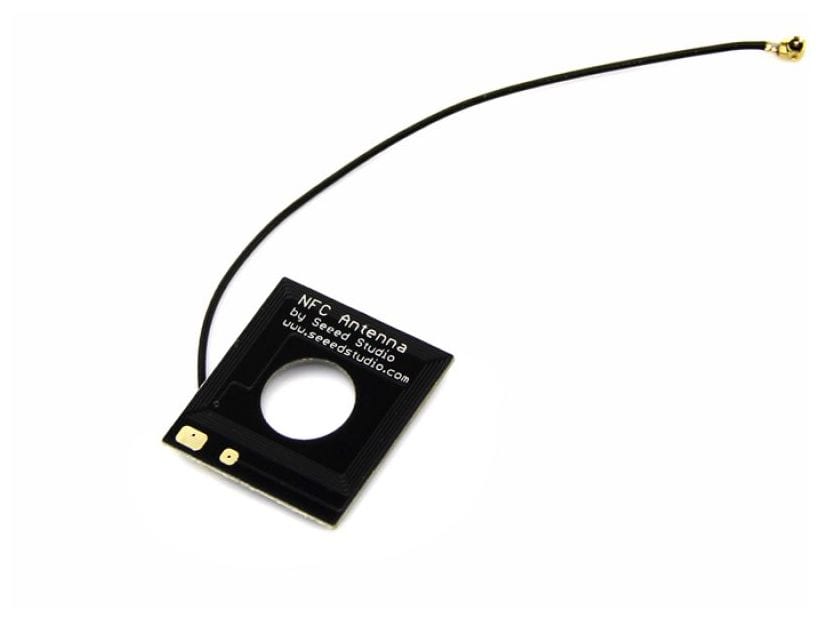

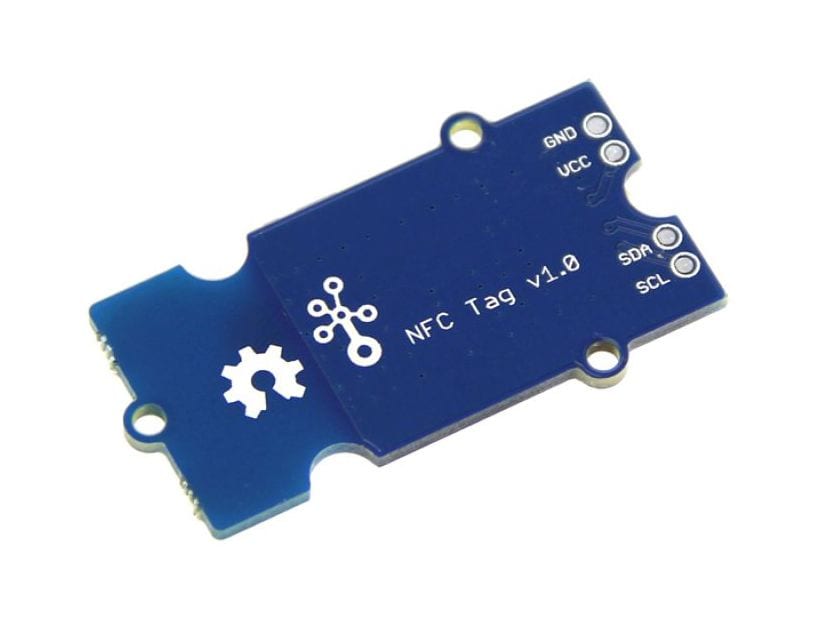

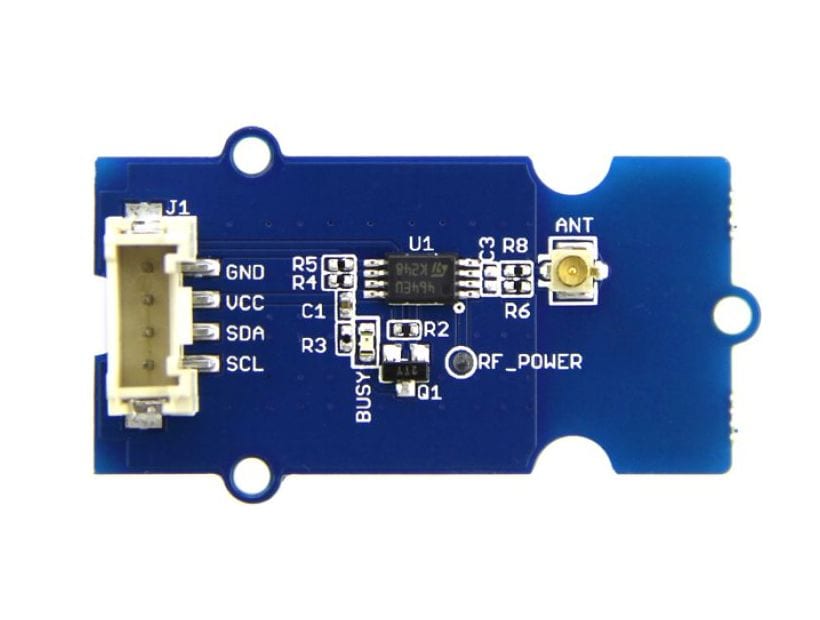

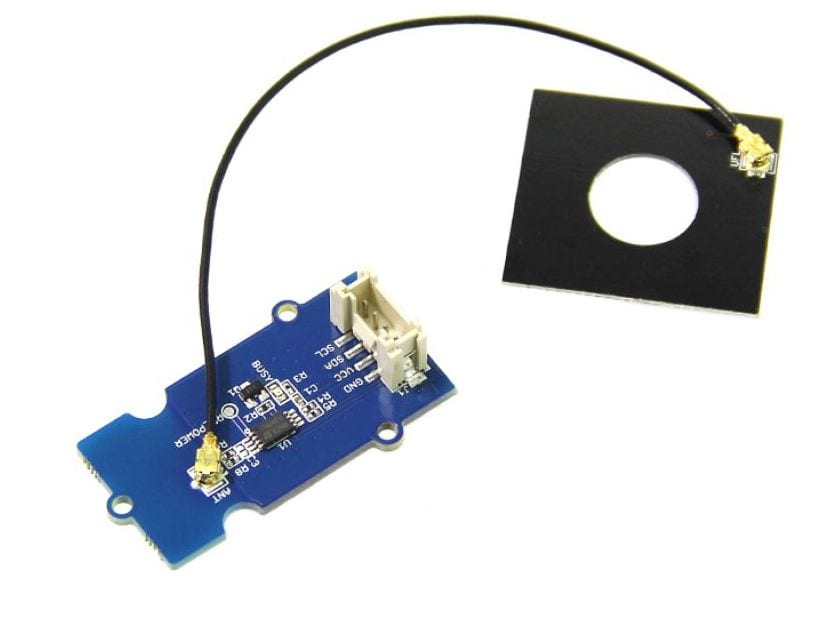

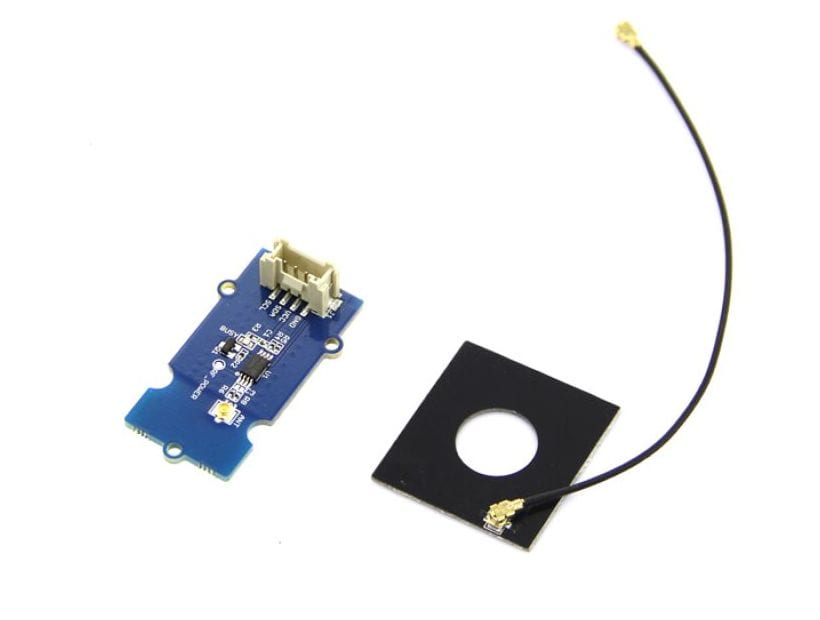

The Grove NFC Tag is a highly integrated Near Field Communication tag module which has an I2C interface and is based on the M24LR64E-R NFC tag IC, whic has a 64-bit unique identifier and 64 Kbit EEPROM.  This Grove module has an independent PCB antenna which can easily extend out of any enclosure you use.

Specifications:
  • Working Voltage:5V or 3V
  • Working current <1mA
  • 2CM max effective range
  • Serve for contactless communication at 13.56MHz
  • ISO 15693 and ISO 18000-3 mode 1 compatible
  • 64-bit unique identifier (UID)
  • Read Block & Write (32-bit blocks)
  • Grove I2C Interface
