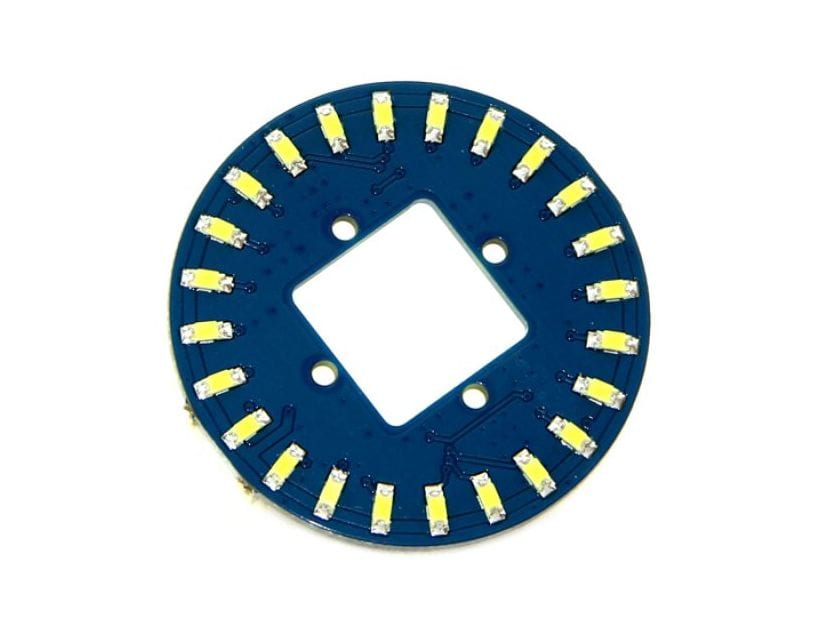

Grove - Circular LED Array

Spinning a dial is a pretty standard method of input, but when combined with this Grove circular LED array, it closes the feedback loop with a visual indicator.

Although usable on it's own, it features a 25x25mm (1 x 1") cutout to accommodate a Grove encoder, but is pretty happy being used as just a ring display.

Specifications:

• 24 LEDs

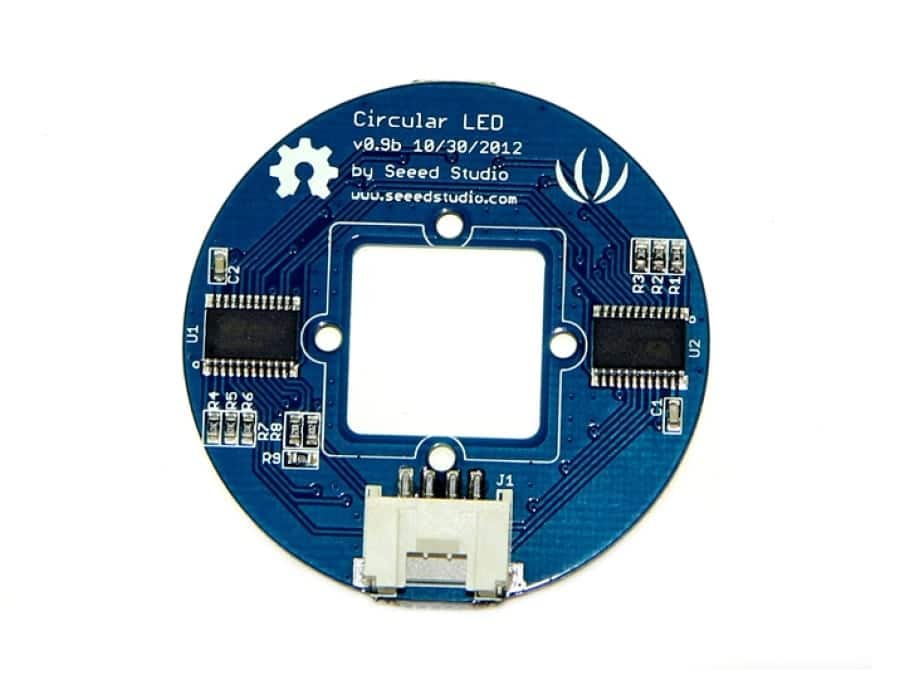

• My-Semi MY9221 12 channel LED driver IC
• Data and Clock line driven interface
• 5.5mA drive current
• Arduino animations library
• 4.5-5.5V operation
• 4.5cm (1.77") diameter
• 12g (0.42oz)

Documentation:

• Seeed Wiki Page

• [Data Sheet]: Seeed Arduino library for Circular LED array
