Description

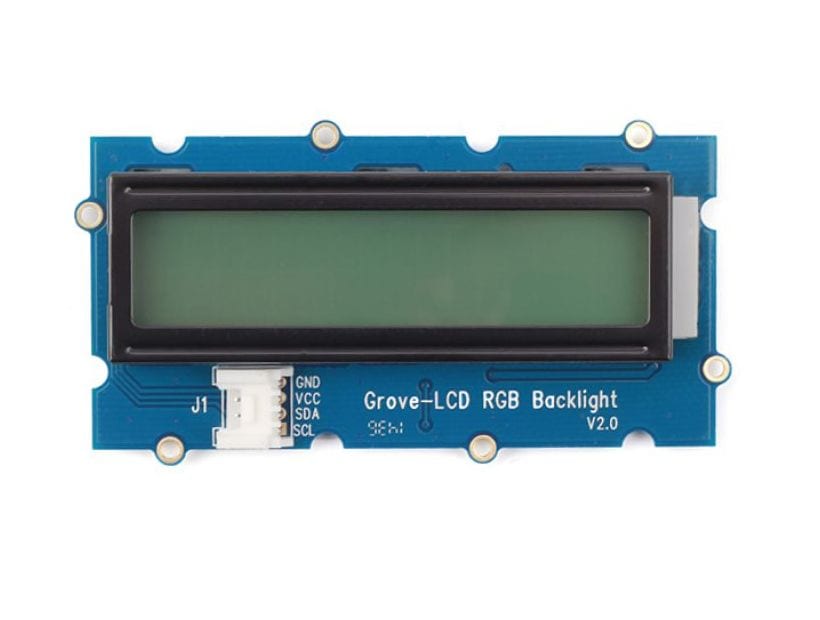

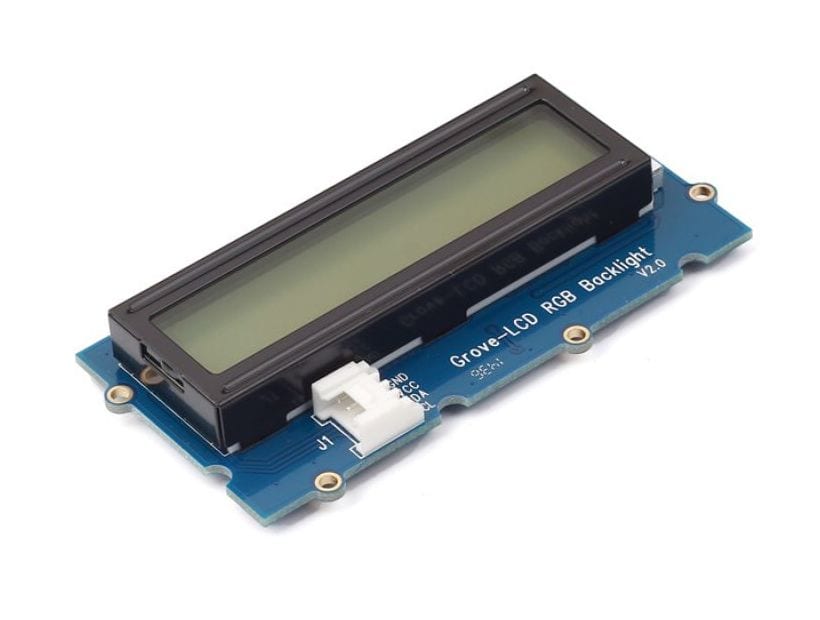

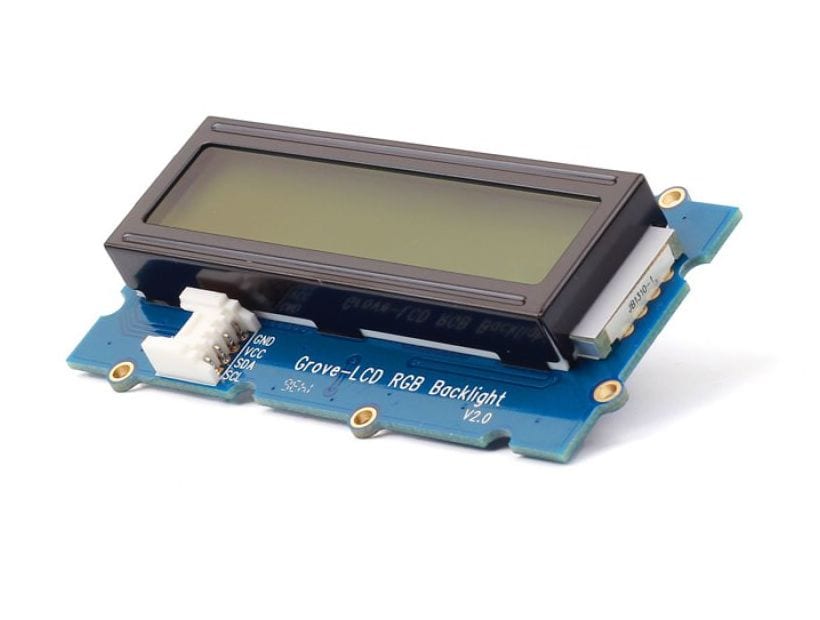

The Grove RGB LCD is another quick, plug-in-and-go solution for adding text information to your project. Besides text, have it change the background color with simple settings commands to dynamically shift to a new shade or intensity.

Plug it into the Grove’s I²C channel, and you’re ready to load the Arduino library to make it display your text and colors. That’s all you have to do.

Specifications

• Grove Compatible Interface
• 16 character x 2 rows, RGB backlight (255/255/255 levels of illumination)
• 5VDC operation
• I²C interface
• Built in English & Japanese fonts
• Customizable symbol table
• CGROM: 10880 bit
• CGRAM: 64*8 bit
• SeeedStudios SULI library support
• Arduino Library support
