ATtiny45V

28901

2.21 USD
Qty
Price
1
$2.21 ea.

Looking for Atmel AVR microcontrollers? We've got them! They're really, really good. Truly. And pretty inexpensive, too! Solarbotics has bags of them. Well protected, anti-static bags of them!


Description [Hide]

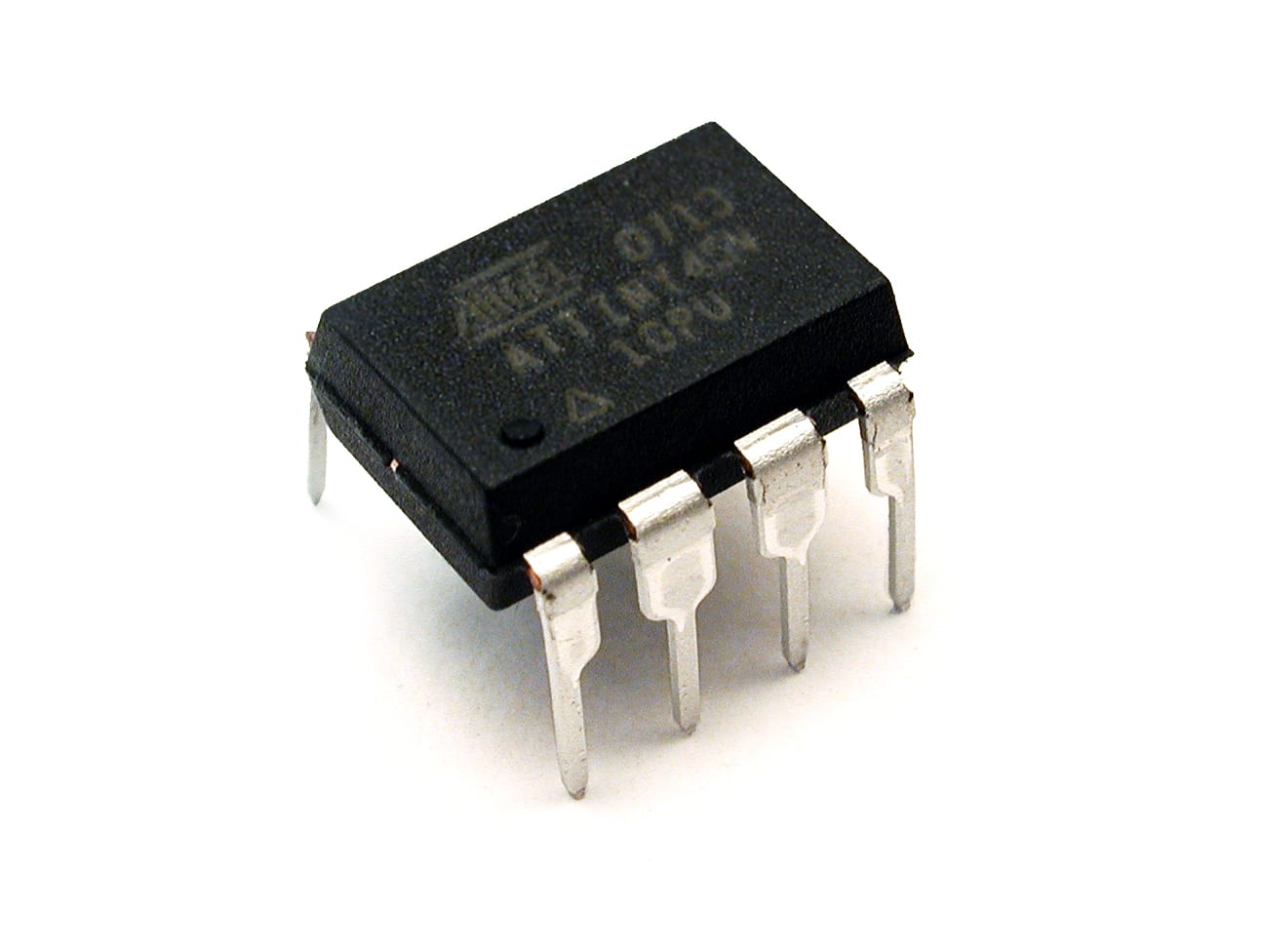

This ATtiny45V is an low voltage version of the ATtiny45 8-pin DIP IC with impressive capabilities!

Flash EEPROM SRAM Speed Volts
4kB 256B 256B 0 - 10MHz 1.8 - 5.5V


The AVR series of microcontrollers are right up there with Microchip PIC products. Powerful, inexpensive, and programmable with some very good open source software (look up GCC), with a vibrant user community.

  • 4K Bytes of In-System Self-Programmable Flash
  • 256 Bytes In-System Programmable EEPROM
  • 256 Bytes Internal SRAM
  • Two 8-bit timer/counters with PWM and prescaler
  • 10-bit ADC, USI-Universal Serial Interface
  • debugWIRE for on-chip-debug
  • Up to 20 MIPS throughput at 20 MHz
  • 1.8 - 5.5 V operation.

For a small, low-voltage, single-purpose applications, it's a cheap and powerful solution! Hmmm... looks like it'd be happy running on solar power too!
