PICAXE-28X1 SMD

28482

$8.95

USD

Qty
Price
1
$8.95 ea.
2+
$8.52 ea.

The PICAXE-28X1 is powerful, but how about being powerful AND tiny? Here's the surface-mount version!


Description [Hide]

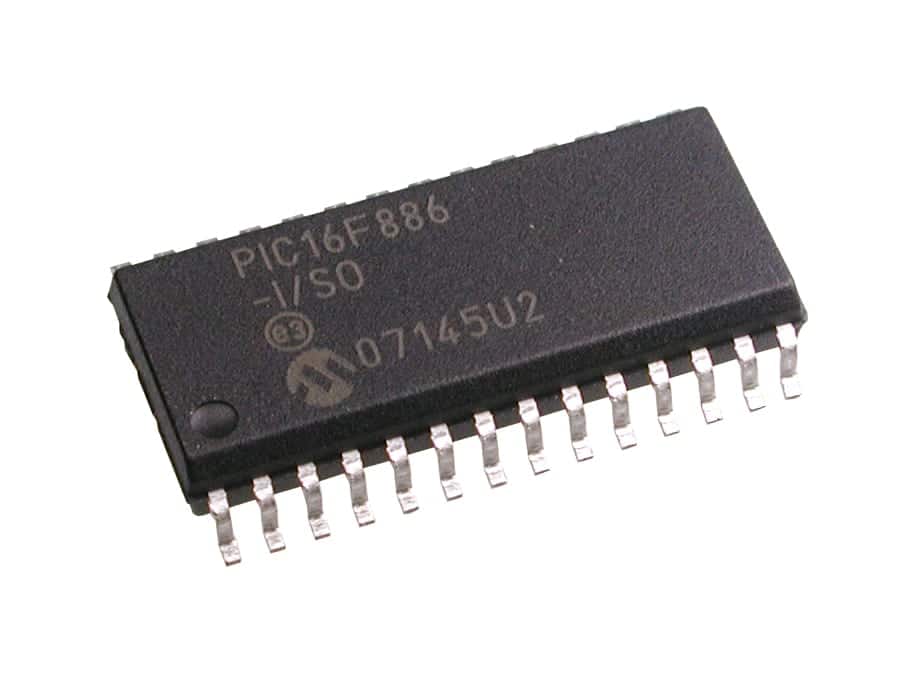

Exactly like the PICAXE-28X1, this the tiny SOIC 300mil version, suitable for surface mount (tiny robots!) projects.

The PICAXE-28X1 is a new revision of the popular 28 series, with way more memory, many more I/O, and supporting I2C! Now you're working with a pretty powerful micro, and still not having to crack a book on "C" programming!

The 'PICAXE' system is a powerful, low cost microcontroller programming system designed to simplify educational and hobbyist use of microcontrollers. PICAXE chips can be programmed in a graphical 'flow-chart' environment or in easy to understand BASIC.

The PICAXE-28X1 features:

  • 1000 lines memory
  • 0-12 Inputs
  • 9-17 outputs
  • Hardware I2C support for easy peripheral connecting
  • Internal Timer
  • Increased variables and separate memory scratchpad
  • Enhanced mathematical functions
  • 0-4 8/10-bit Analog-to-Digital converters (ADC)
  • 20MHz maximum operation speed (4MHz normally)
  • Line-by-line simulation
  • Supports
    • Interrupts
    • 12-Bit Digital temperature sensors
    • Servo control
    • Keyboard input
    • IR transmit/receive
    • Plays user-defined musical tones
    • PWM Motor control
    • Input Pulse counting
    • Serial output & debugging via programming cable
    • Higher baud rate for serial work
  • Based on the PIC 16F886 IC

Memory (lines) = Approximate number of lines of program code the chip can hold.
Data Memory = Bytes of EEPROM memory on board (128-Prog means 128 Bytes less the space needed for your program. 256+I2C means 256 Bytes + any external EEPROM space you add via the I2C interface).
Polled Interrupt = A process that automatically checks a pin in between each command to see if something has happened (very useful!)

Resources:

PICAXE Manual Part 1 - Getting Started (.pdf)
PICAXE Manual Part 2 - BASIC Commands (.pdf)
PICAXE Manual Part 3 - Interfacing Circuits (.pdf)
Programming Editor (.exe)
