PIC 16F88/P

28120

$4.95

USD

Qty
Price
1
$4.95 ea.

Small, powerful, inexpensive -PIC Micros from Microchip are an easy and affordable way to get into microcontrollers.


Description [Hide]

Solarbotics can supply you or your company with singles to production quantities of any PIC Micro.

Features

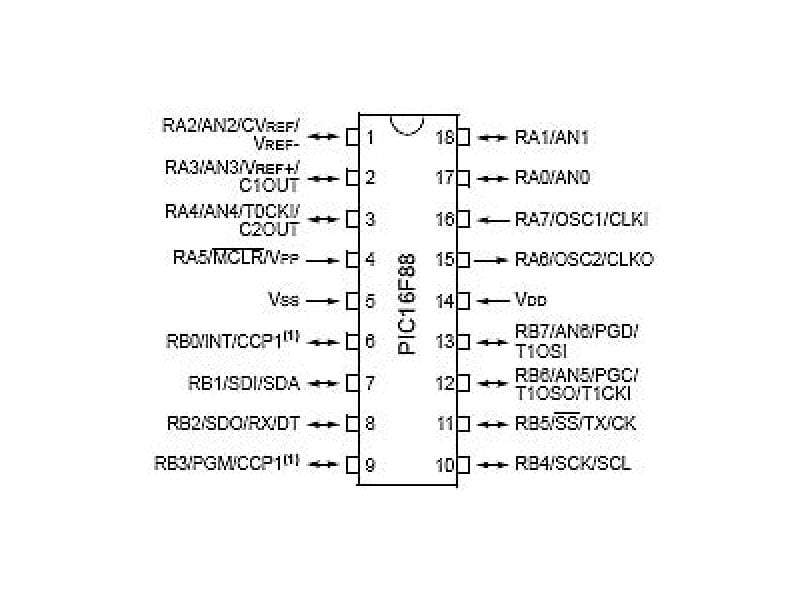

  PIC16F88
Program Memory 4096x14
RAM (Bytes) 368
EEPROM Data (Bytes) 256
Max Speed (MHz) 20
I/O 16
Package 18-pin DIP
A/D Channels 7 (10 Bit)
PWM Channels 1
Brown Out Reset Yes
Serial I/O USART/I2C/SPI
Internal Oscillator 8 (MHz)
