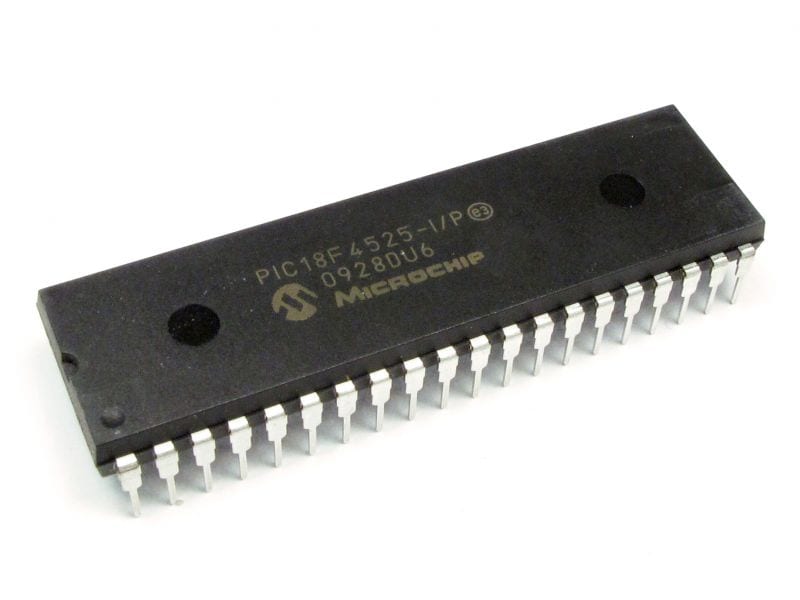

PIC 18F4525-I/P IC

28071

$7.89

USD

Qty
Price
1
$7.89 ea.
2+
$7.11 ea.

The PIC 18F4525-I/P is a small, powerful and inexpensive microcontroller from Microchip.


Description [Hide]

Small, powerful, inexpensive PIC Micros from Microchip are an easy and affordable way to get into microcontrollers. Solarbotics can supply you or your company with singles to production quantities of any PIC Micro.

Features Include :

  18F4525-I/P
Voltage Range 2.0 - 5.5V
Program Memory (Kbytes) 48
RAM (Bytes) 3968
EEPROM Data (Bytes) 1024
Max Speed (MHz) 32 (8 internal)
I/O 36

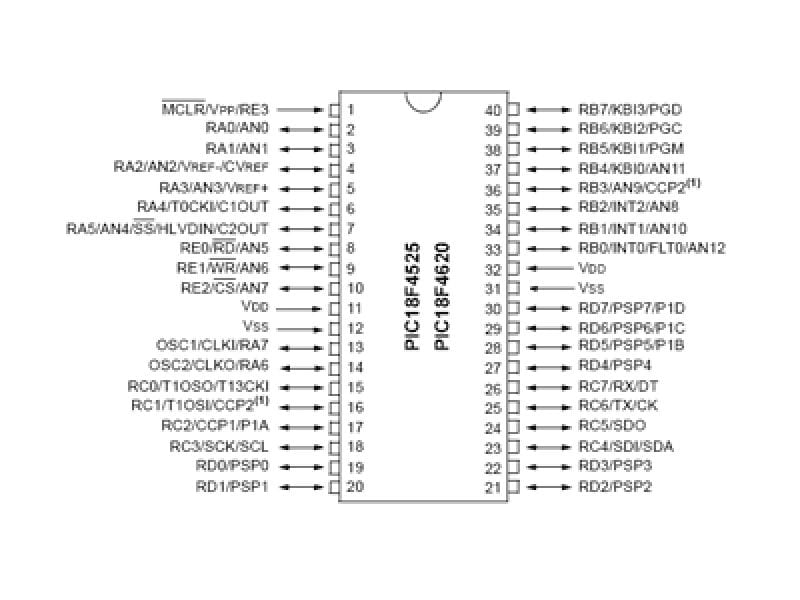

Package 40-pin DIP
Temp. Range -40 to +85°C
A/D Channels (10-bit) 13
PWM Channels (CCP/ECCP) 1/1
Brown Out Reset Programmable
Serial Capabilities RS232/485/LIN1.2
18F series upgrade from 16F7877a
Compatible with MPLabs C18 student-edition C compiler
