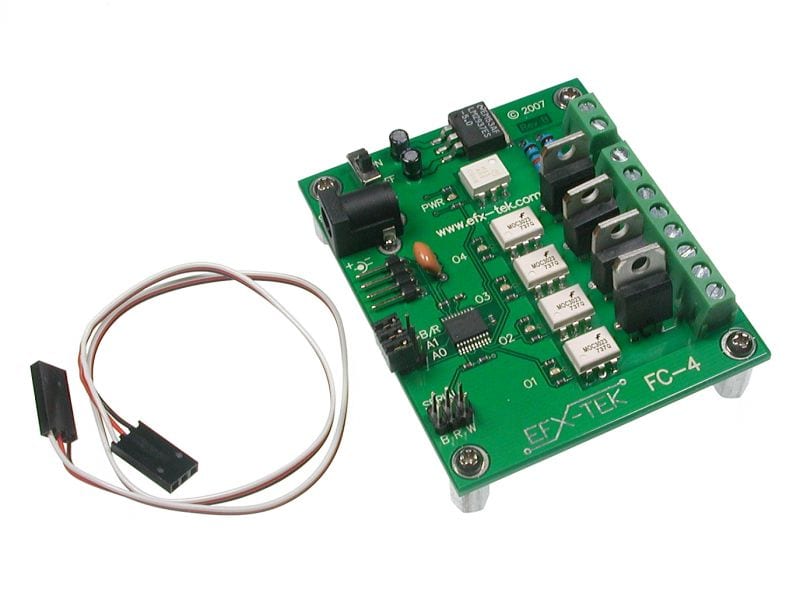

FC-4 Lamp Fader Control Board

27260

90.00 USD
Qty
Price
1
$90.00 ea.

Use this device to intelligently control the brightness level of 120 VAC [incandescent] lamps.


Description [Hide]

If you've been looking for a way to intelligently control the brightness level of 120 VAC incandescent lamps (not compact fluorescent!), the FC-4 is an excellent solution.

You can get sophisticated brightness and cross-fading commands using a simple controller like the Prop-1. Small LEDs associated with each output indicate the relative brightness for the channel, providing visual feedback even when the FC-4 is separated from the lamps it's controlling.

Each lamp channel is capable of controlling up to 300W, for a total output load of 1200W for the board. And if you need more channels, the FC-4 can be daisy-chained for a total of 16 channels on the same control output of your prop controller.

12VDC power supply required.
