Tamiya 6-Speed Gearset Kit

22050

16.50 USD
Qty
Price
1
$16.50 ea.
2+
$15.67 ea.
25+
$12.37 ea.

Operating plastic model can be built for any of 6 gear ratios.


Description [Hide]

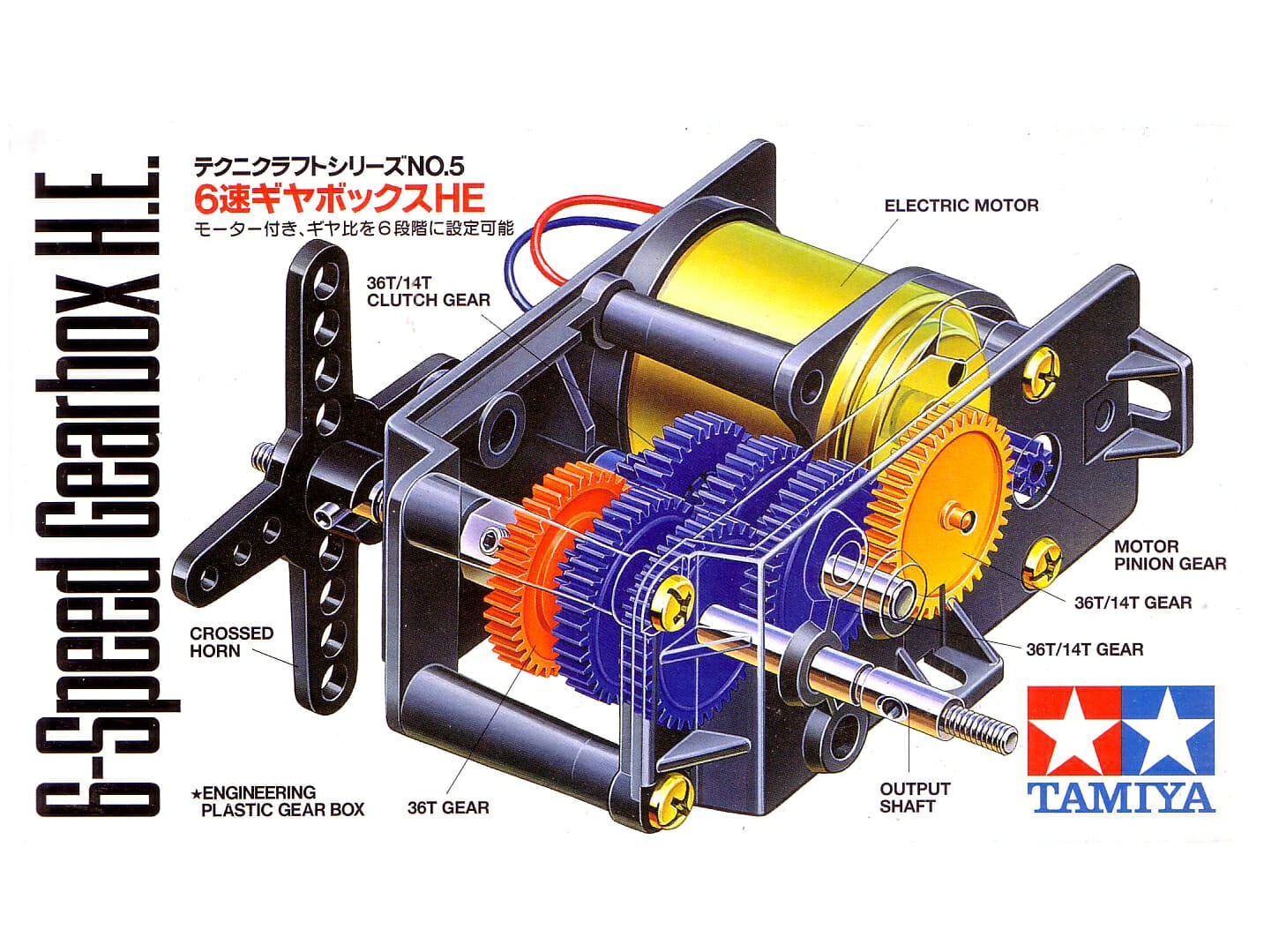

The Tamiya 6-Speed Gearbox is ideal when a wide range of torques are needed or when the exact power requirements aren't yet known. By varying the configuration of the gearbox, 6 gear ratios are available: 11.6:1, 29.8:1, 76.5:1, 196.7:1, 505.9:1, 1300.9:1. The overall shape of this Gearbox is more suitable for hobby robotics.

You can use our L298 Motor Driver Kit to interface this motor directly to a microcontroller output pin.

Motor included. Runs on 3 - 4.5 VDC.

Some Assembly Required

Ratings (@3 VDC)
6 Configurations 11.6:1(Min) 1300:1(Max)
Torque g-cm (oz-in) 161 2306
RPM 870 7.8
No Load Current Varies with gear ratio
Dimensions (mm) Body: 45 x 68 x 27 Shaft: 80

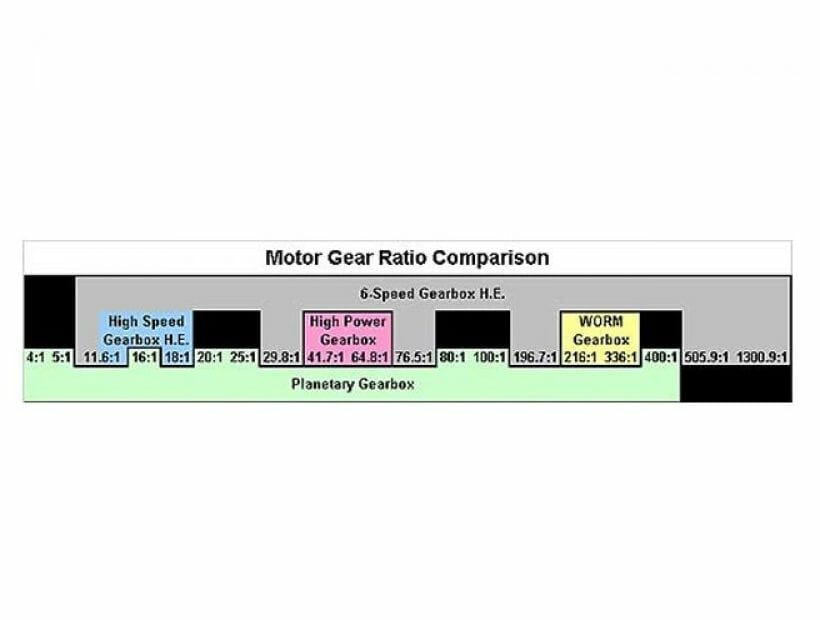

Numbers indicate ratio to motor turns. ie. the Worm Gearbox has 2 ratios available: 216:1 and 336:1

NOTE: Gearsets not appearing in this table use a different motor and therefore cannot be easily compared.
