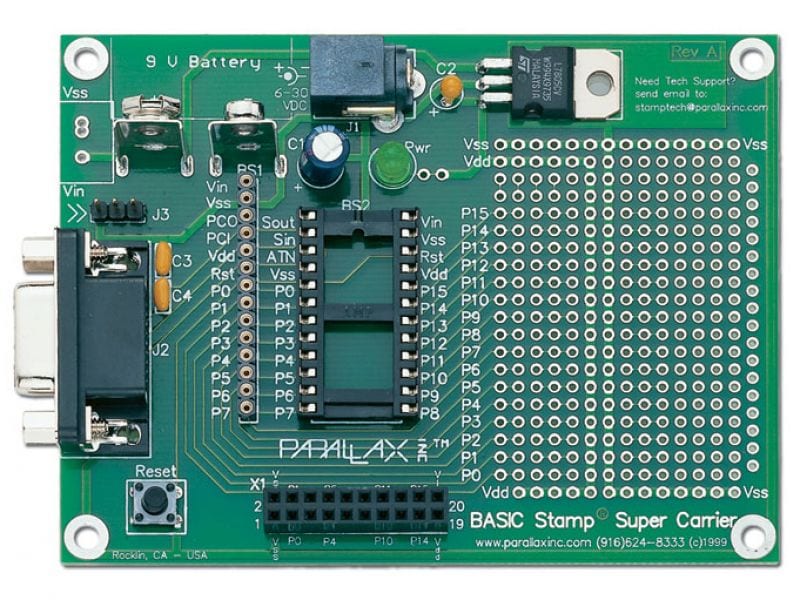

Super Carrier Board

21370

$19.95 USD
Qty
Price
1
$19.95 ea.

The Super Carrier Board is great for both the BASIC Stamp 1 and BASIC Stamp 2 Modules.


Description [Hide]

The Super Carrier board makes the perfect entry level development board. It’s fully compatible with all the Basic Stamps including the BS1 and comes complete with all the required circuit for properly powering and programming your stamp module. The Super Carrier supports the JS1-IC, BS1-IC, BS2-IC, BS2E-IC, BS2SX-IC, BS2P24, and BS2PE modules.

Features Include :

  • 3" x 4" Double-sided plated through-hole prototype board
  • Sockets support BS1-IC, JS1-IC, and all 24 pin BS2 modules
  • On-board voltage regulator accepts 6-30 VDC, from wall-pack or battery
  • Serial programming port (DB9) can be used for run-time communication (BS2 series)
  • Prototype area (1.5" x 2.0") holes arranged to easily support: servos, 300 and 600 mil DIP ICs, DB9, DB25, RJ-11 connectors
  • AppMod header for easy expansion
  • Size measures 7.7 x 10.2 cm (3"x 4")
