LAB-X3 Experimenter Board

21160

Sale!

$59.48 USD
Qty
Price
1
$59.48 ea.

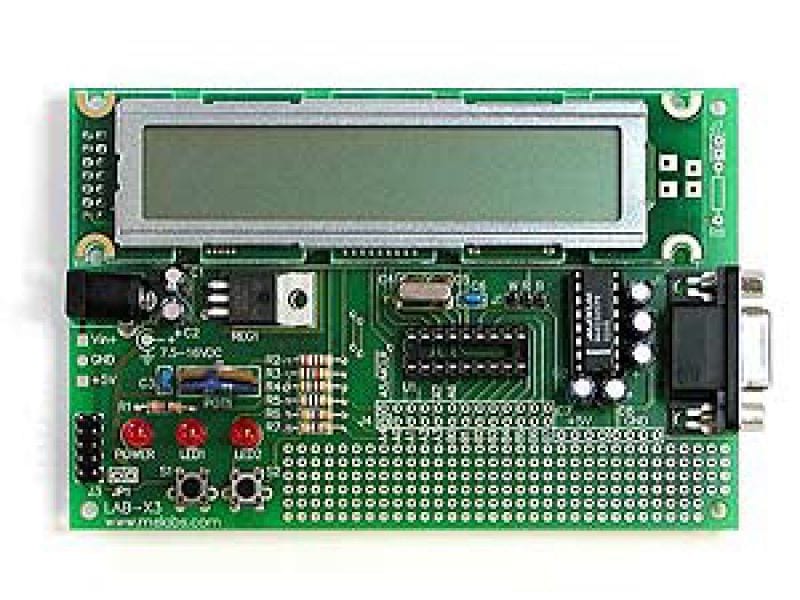

A full featured 18-pin PIC development platform with all the circuitry required by the PICmicro MCU to operate, plus 5-volt power supply, oscillator, reset circuit, an RS-232 serial port, basic analog and digital I/O and a 20 character x 2 line LCD display.


Description [Hide]

The LAB-X3 can run programs written in assembler, C and PicBasic or PicBasic Pro. Sample programs are included. The in-circuit programming connector allows the resident PICmicro MCU to be reprogrammed on the fly (requires a FLASH device) using programmers that support this feature like the melabs Serial or USB Programmer. It is recommended the LAB-X3 be used with the 18-pin PIC16F648A or PIC16F84A (available separately), as these FLASH devices may be reprogrammed again and again. A parts list and schematic are included. Fully assembled and ready to use -just add your PIC and you are ready to develop embedded PIC applications.

Features :

  • Inputs: 1 pushbutton, 1 potentiometer
  • Outputs: 2 LEDs, 1 RC servo connector, 2x20 LCD module
  • I/O: RS232 interface
  • Reset button (may be programmed as input with the 16F62x MCUs)
  • 5-volt regulator, 4MHz crystal oscillator
  • In-circuit programming connector
  • Prototyping area for additional circuits.


The Lab-X3 is compatible with the following 18-pin devices :
PIC16C54C, 16C554, 16C558, 16C56(A), 16C58(AB), 16C620(A), 16C621(A), 16C622(A), 16C71, 16C710, 16C711, 16C712, 16C715, 16C716, 16C717, 16CE623, 16CE624, 16CE625, 16F54, 16F627, 16F627A, 16F628, 16F628A, 16F648A, 16F716, 16F818, 16F819, 16F83, 16F84(A), 16F87, 16F88, 16HV540

Note: The 16F87 and 16F88 USART pins do not match the connections on the LAB-X3.

Size is 4.9" x 3.30”
