Switched JST-PH 2-Pin SMT Right Angle Breakout Board

19074

3.50 USD
Qty
Price
1
$3.50 ea.

A convenient little switch to easily turn on and off your LiPoly batteries when prototyping.


Description [Hide]

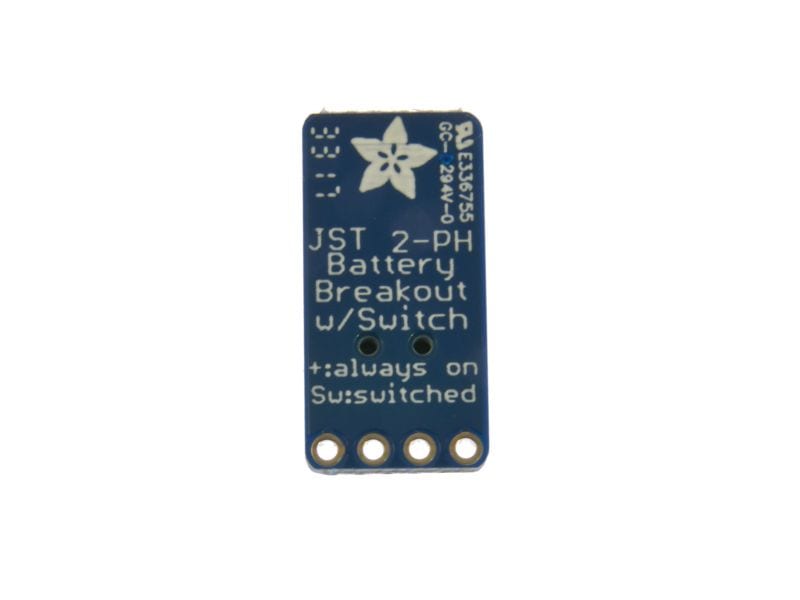

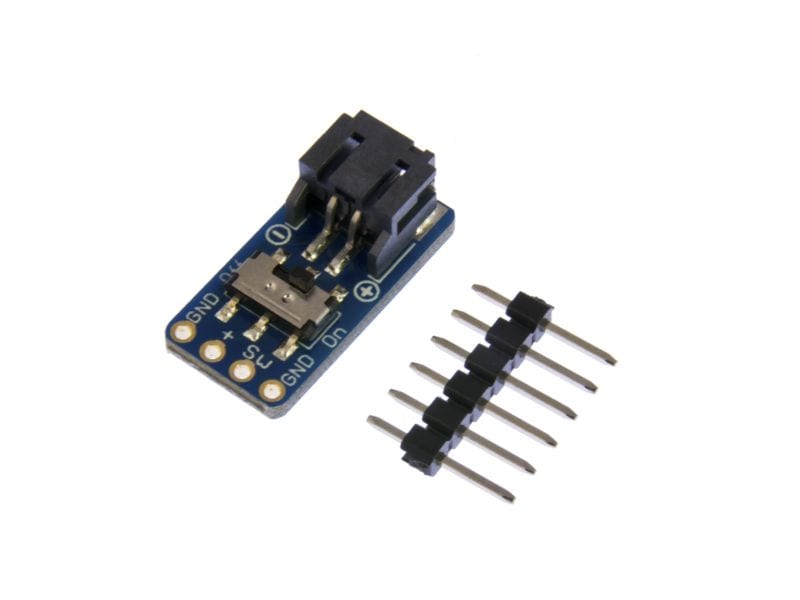

This switched JST connector is the best way to quickly prototype with LiPoly batteries and is breadboard friendly! This little breakout board uses a standard JST PH 2-pin connector which can be found on our single cell LiPoly battery packs.

Specifications:

  • Current capacity: 600mA
  • 21mm x 10mm x 2mm / 0.8" x 0.4" x 0.08"
  • Height with JST: 7.3mm
  • Weight: 1g


Links:
    EagleCAD PCB files on GitHub
    Fritzing object in the Adafruit Fritzing library

Documentation [Hide]
