Compact Selectable Switching Power Supply 3-12VDC

19030

14.95 USD
Qty
Price
1
$14.95 ea.

What a handy power adapter - 100~240VAC input, and it outputs up to 10 watts, with a selectable voltage from 3 to 12VDC. Complete with a variety of interface plugs!


Description [Hide]

I think I can delegate most of my crappy wall-wart adapters to secondary projects, and use a few of these to power up my immediate projects. It's a very useful, flexible and capable power supply. More portable than a benchtop supply, and at this price, definitely more useful!

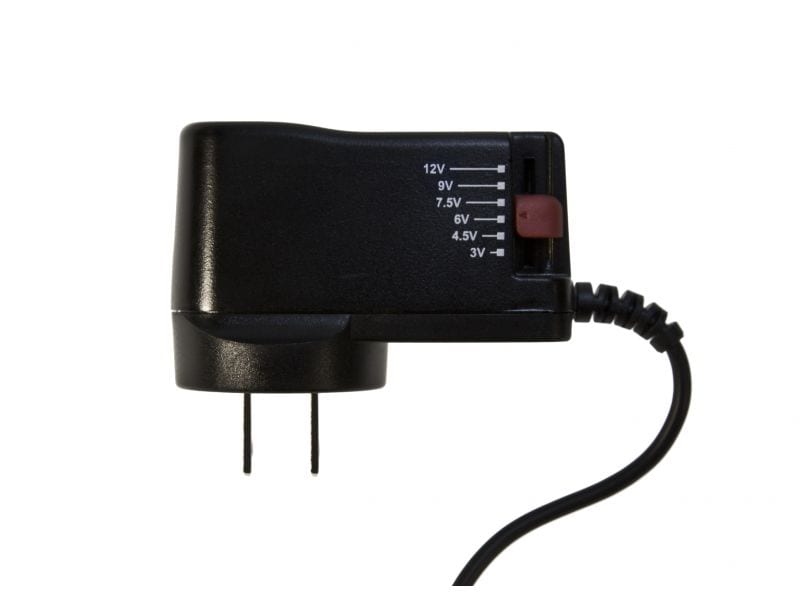

  • Pick your required voltage from the 6 position slider.
  • Pick what tip you need for your project. Standard 2.1mm barrel jack not your requirement? How about a 2.5mm? No? There's a total of 8 to pick from (but no 9V rectangle battery connector, sorry).
  • Need tip-positive, or tip-negative power? Doesn't matter - swap the jack position around to get what you need.


Specifications:

  • Multi changeable plug DC-cord.

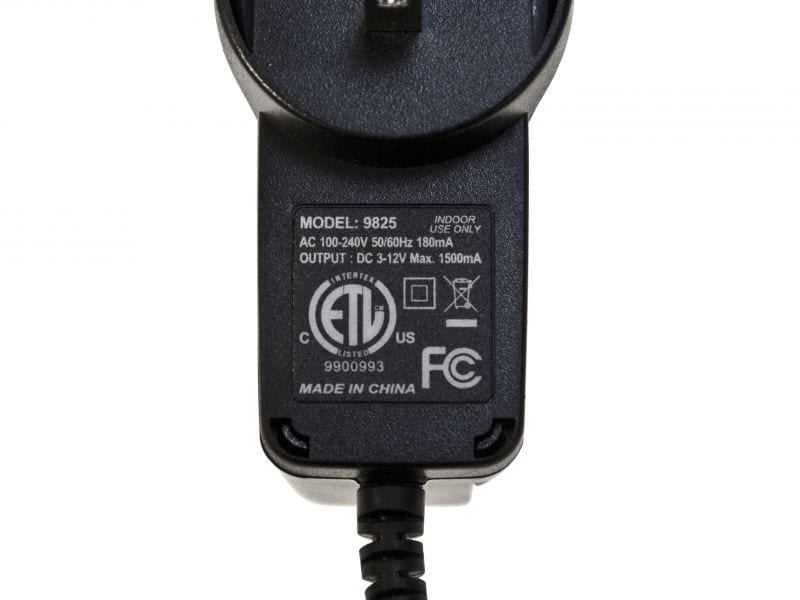

  • Input 100V to 240VAC, 50Hz/60Hz (North American style plug)
  • Over load, over current, over heat protection.
  • International approval CE EN60950, UL1950, CSA22.2 No.950.
  • EMC approval EN55022.
  • Extra low consumption during standby (very little power wasted when it's plugged in, but doing nothing)
  • Weight: 86g
  • Size: 67x29x74mm.
  • Cable length: 1.54m (60-3/4")

Maximum Current Rating at Selected Voltage:

  • 3.0V - 1.5A
  • 4.5V - 1.2A
  • 6.0V - 1.0A
  • 7.5V - 0.9A
  • 9.0V - 0.8A
  • 12V  - 0.7A
