Adafruit Monochrome 128x32 OLED Graphic Display
18980
18.25
USD
Qty
Price
1
$18.25 ea.
2+
$15.95 ea.

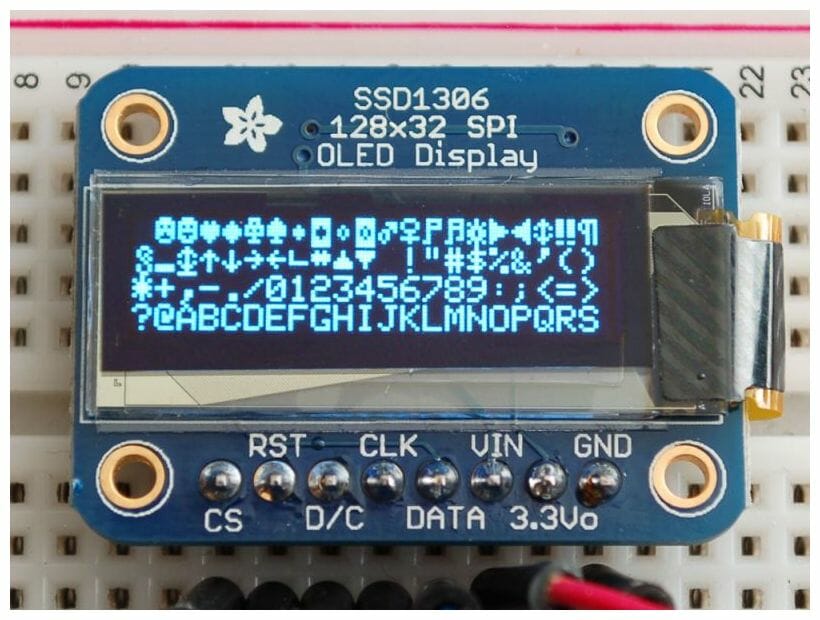

These are tiny, sharp, and most impressive OLED monochrome displays! Just about 1" diagonal, made of 128x32 individual white OLED pixels, each one is turned on or off by the controller chip.
Description [Hide]
Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this miniature display for its crispness!

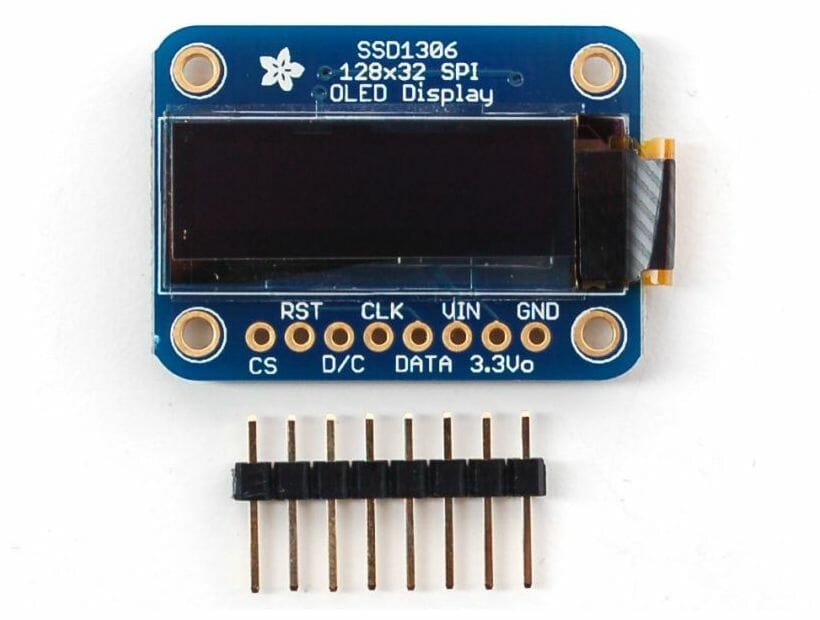

The driver chip SSD1306, communicates via SPI only. 4 or 5 pins are required to communicate with the chip in the OLED display.

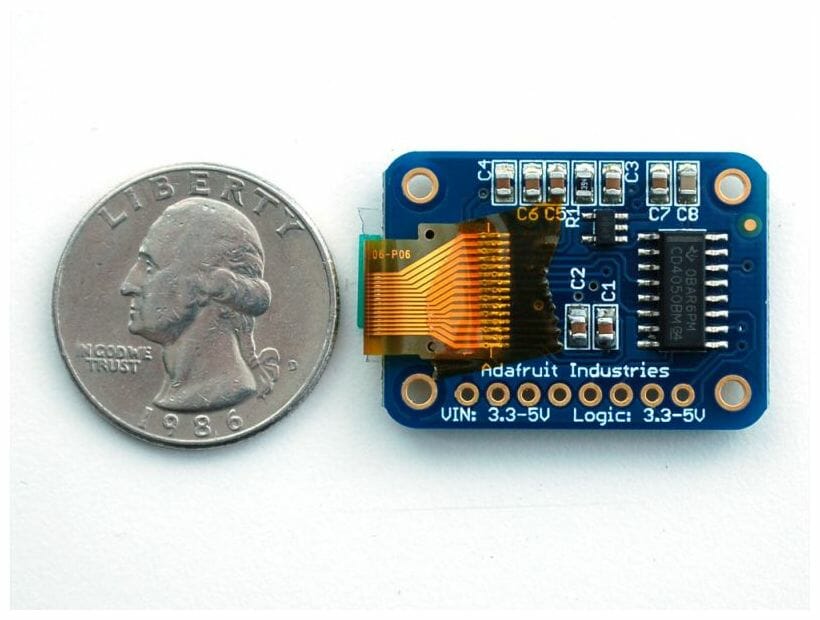

The OLED and driver require a 3.3V power supply and 3.3V logic levels for communication. To make it easier to use, we've added a 3.3v regulator and level shifter on board! This makes it compatible with any 5V microcontroller, such as the Arduino.
The power requirements depend a little on how much of the display is lit but on average the display uses about 20mA from the 3.3V supply. Built into the OLED driver is a simple switch-cap charge pump that turns 3.3v-5v into a high voltage drive for the OLEDs, making it one of the easiest ways to get an OLED into your project!
Links
Detailed tutorial and example code in the form of an Arduino libraryfor text and graphics. You will need a microcontroller with more than 512 bytes of RAM since the display must be buffered.
You can download our SSD1306 OLED display Arduino library from github which comes with example code. The library can print text, bitmaps, pixels, rectangles, circles and lines. It uses 512 bytes of RAM since it needs to buffer the entire display but its very fast! The code is simple to adapt to any other microcontroller.
