MicroSD Card and Breakout board

18968

Qty
Price (USD)
1+
$14.95 ea.

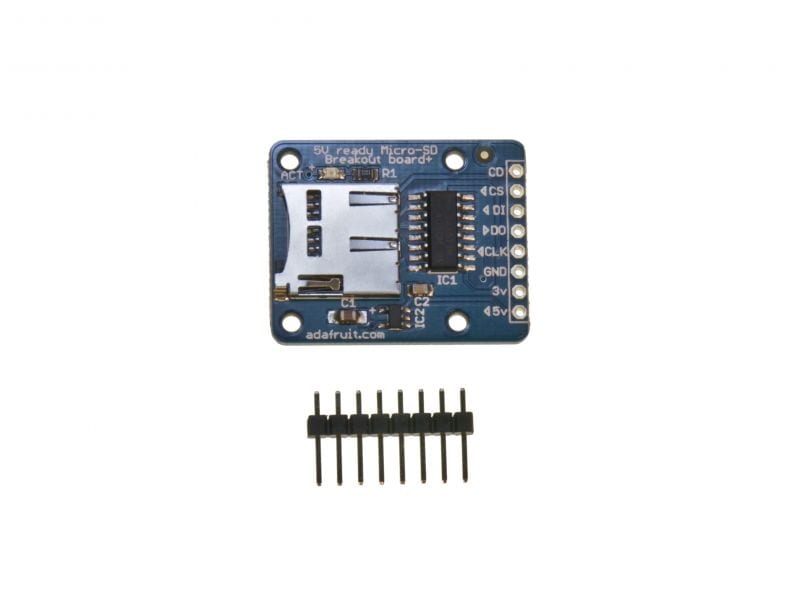

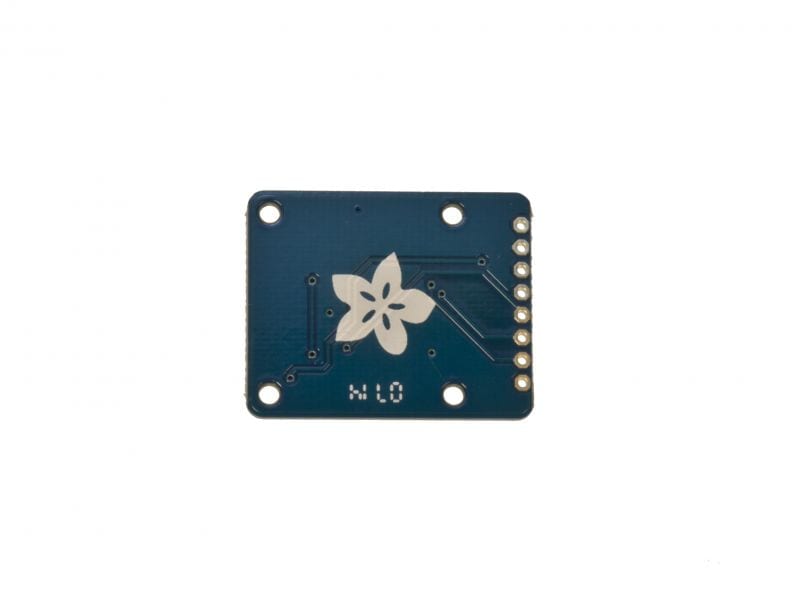

This handy little SD card adapter is not just a breakout board but rather a feature rich adapter with a focus on ease of use.


Additional Information [Hide]

It has an onboard regulator to provide 3.3V cards with more than enough power and also includes a 3.3V-to-5V level shifter. This means that you can easily add an SD card to 5V or 3V systems without the need of extra components, cool!

Features:

  • Onboard 5v->3v regulator provides 150mA for power-hungry cards
  • 3v level shifting means you can use this with ease on either 3v or 5v systems
  • Uses a proper level shifting chip, not resistors: less problems, and faster read/write access
  • Use 3 or 4 digital pins to read and write 2Gb+ of storage!
  • Activity LED lights up when the SD card is being read or written
  • Four #2 mounting holes
  • Push-push socket with card slightly over the edge of the PCB so its easy to insert and remove
  • Comes with 0.1" header (unattached) so you can get it on a breadboard or use wires - your choice
  • Works great with Arduino, with tons of example code and wiring diagrams

To use with an Arduino, connect GND to ground, 5V to 5V, CLK to pin 13, DO to pin 12, DI to pin 11, and CS to pin 10. Then you can use the wonderful SDfatLib which supports FAT and FAT32 SD cards. For details on getting started, check out the detailed tutorial discusses microSD cards, wiring and how to use this breakout board with an Arduino.

Dimensions (without 0.1" header):

  • Length:31.85mm/1.25in
  • Width:25.4mm/1.00in
  • Height:3.75mm/0.15in
  • Weight:3.43g/0.12oz
