PowerBoost 500 Shield

18938

19.95 USD
Qty
Price
1
$19.95 ea.

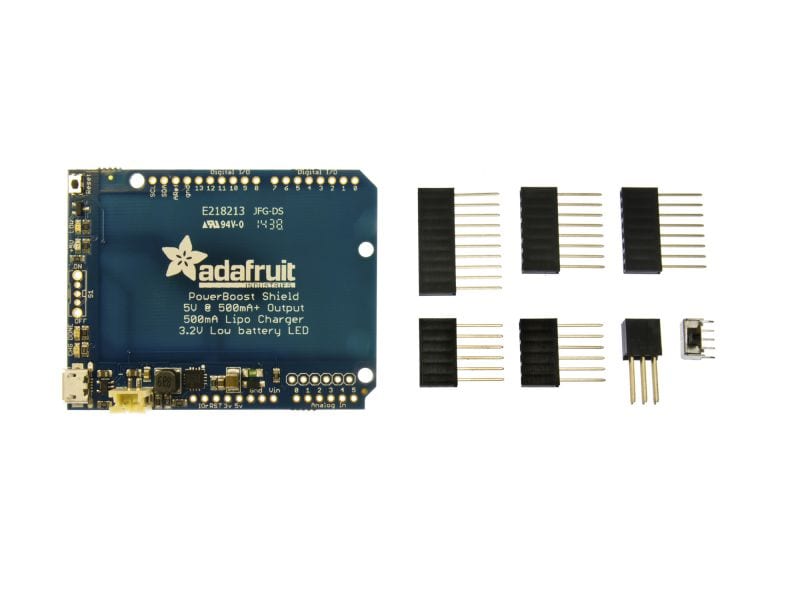

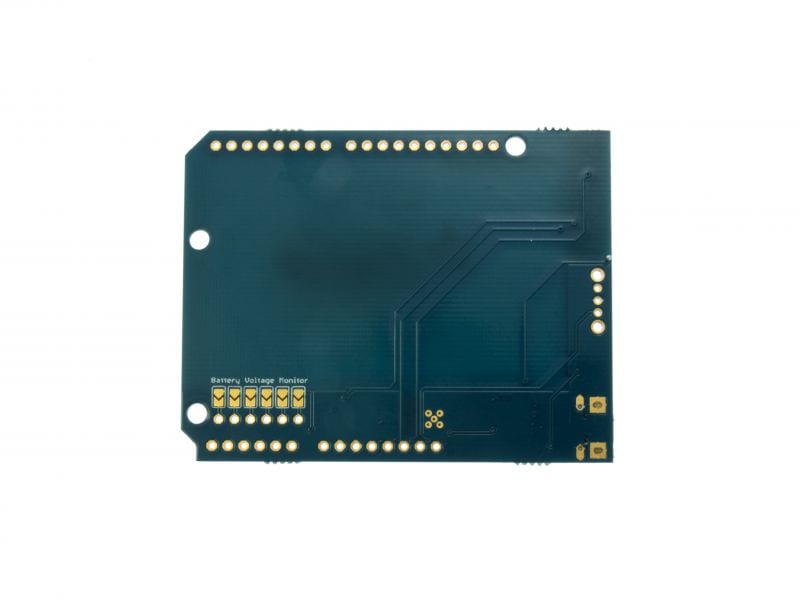

The Adafruit PowerBoost 500 Shield is a clever add-on for your MOBILE Arduino project. It's a power supply, charger, and battery pack all-in-one.


Description [Hide]

This well thought-out stackable shield sits on your standard Arduino-Uno-compatible development board and adds a portable, rechargeable power pack to your project. Add your own single Li-Ion / LiPoly battery, and you're ready to go mobile.

Neat.

Specifications:

  • Capable of supplying 500mA continuous current at 5V
  • Micro-USB connector
  • Optional Power Switch included
  • Built-in Li-Ion/LiPoly charging circuit with charging/charged indicator
  • Low battery indicator (2.2V)
  • Stackable Shield design (Uno-footprint compatible)
  • 53x69x2mm (2.1x2.7x0.08")
  • 12.5g

Note:

  • ICSP port is blocked by the battery when using this product
  • BATTERY NOT INCLUDED. Requires single 3.7/4.2V Li-Ion / LiPoly cell
