Adafruit Mono 2.5W Class D Audio Amplifier - PAM8302

18805

4.95 USD
Qty
Price
1
$4.95 ea.

Sometimes the LM386 audio amplifier just isn't strong enough. That's where this module takes over, in a compact footprint.


Description [Hide]

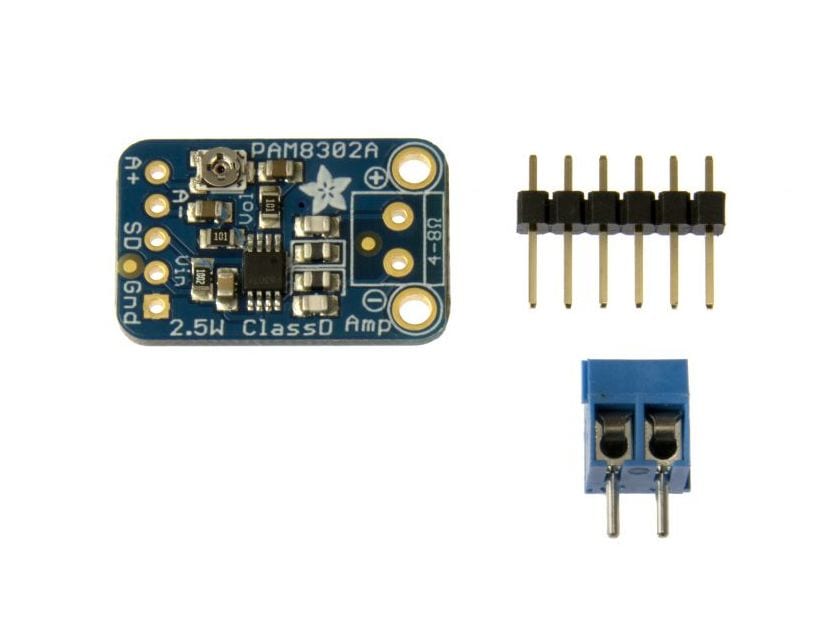

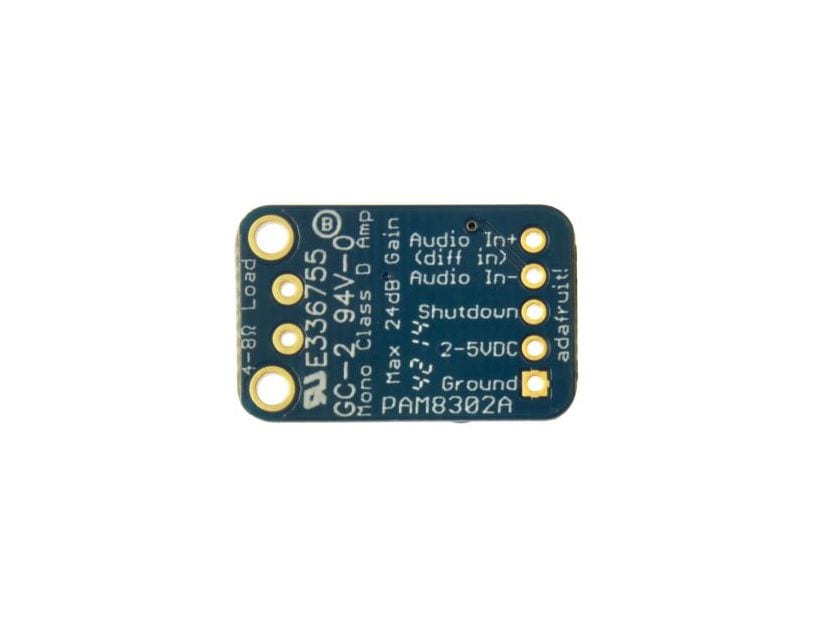

It's fine to have your project generate noise, but to be heard, you need more than just a larger speaker - you need muscle! This is where this PAM8302 breakout board from Adafruit comes into play. Throw 2 to 5VDC at it, and it will amplify your mono signal into 4~8 ohm speakers with 2.5 watts of authority.

In short, it's a small, tidy module for making your small mono signal BIG.

Specifications:

  • PAM8302IC mono signal high-efficiency audio amplifier IC
  • 2 to 5VDC supply voltage
  • Output Power: 2.5W at 4Ω, 10% Total harmonic distortion (THD), 1.5W at 8Ω, 10% THD, with 5.5V Supply
  • 50dB PSRR at 1KHz
  • Filterless design, with ferrite bead + capacitors on output.
  • Volume trimpot adjustment
  • Built-in thermal & over-current protection
  • 4mA quiescent (just sitting there, doing nothing) current draw; 1uA in shutdown mode
  • Included optional 0.1" pins and speaker wire screw-terminals
  • 15x24x2mm (0.6 x 0.9 x 0.08")
  • 1.4g

Note: 4~8 ohm impedance speaker NOT included
