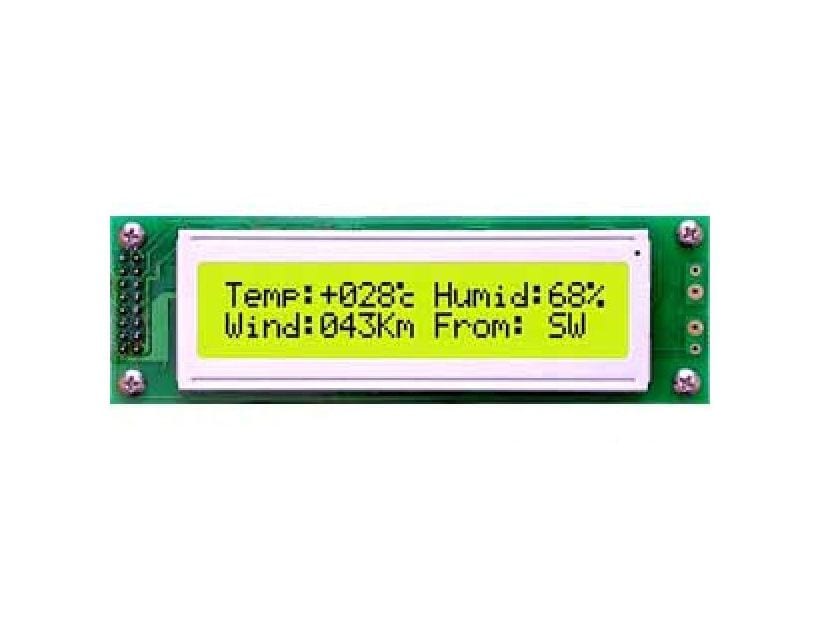

LK202-25-V (Wide Voltage Option)

18183

62.45 USD
Qty
Price
1
$62.45 ea.

This 20 character x 2 line format sees a lot of use in rackmount server applications. Features a 25-key keypad interface and is networkable via the on-board I2C interface.


Description [Hide]

This is the Wide Voltage version of the LK202-25. It is identical except the input voltage is 7-15 VDC.

This 20 character x 2 line format sees a lot of use in rackmount server applications. Crisp characters and excellent contrast makes for easier viewing. Features a 25-key keypad interface and is networkable via the on-board I2C interface.

Display Appearance
Character / Lines
Pixels
Module Size (mm)
Character Size (mm)
Display Size (mm)
20 x 2
N/A
116 x 37 x 27.5
3.2 x 5.5
82.2 x 18.2
Background Colour
Text Colour

Yellow/Green
Black

Features
Keypad
One Wire
GPO
Advanced GPO
Memory Chip Size
25
0
6
0
N/A
Interface
RS-232
TTL
Buffer
Other

1200 - 19200 bps
1200 - 19200 bps
80
I2C

Environmental
Standard Temp (°C)
Extended Temp (°C)
Humidity

0 to +50
-20 to +70
90%

Power Requirements
Supply Current (mA)
@ 5VDC
Supply Current With Backlight (mA)
Inrush Current (mA)

9
115
N/A
