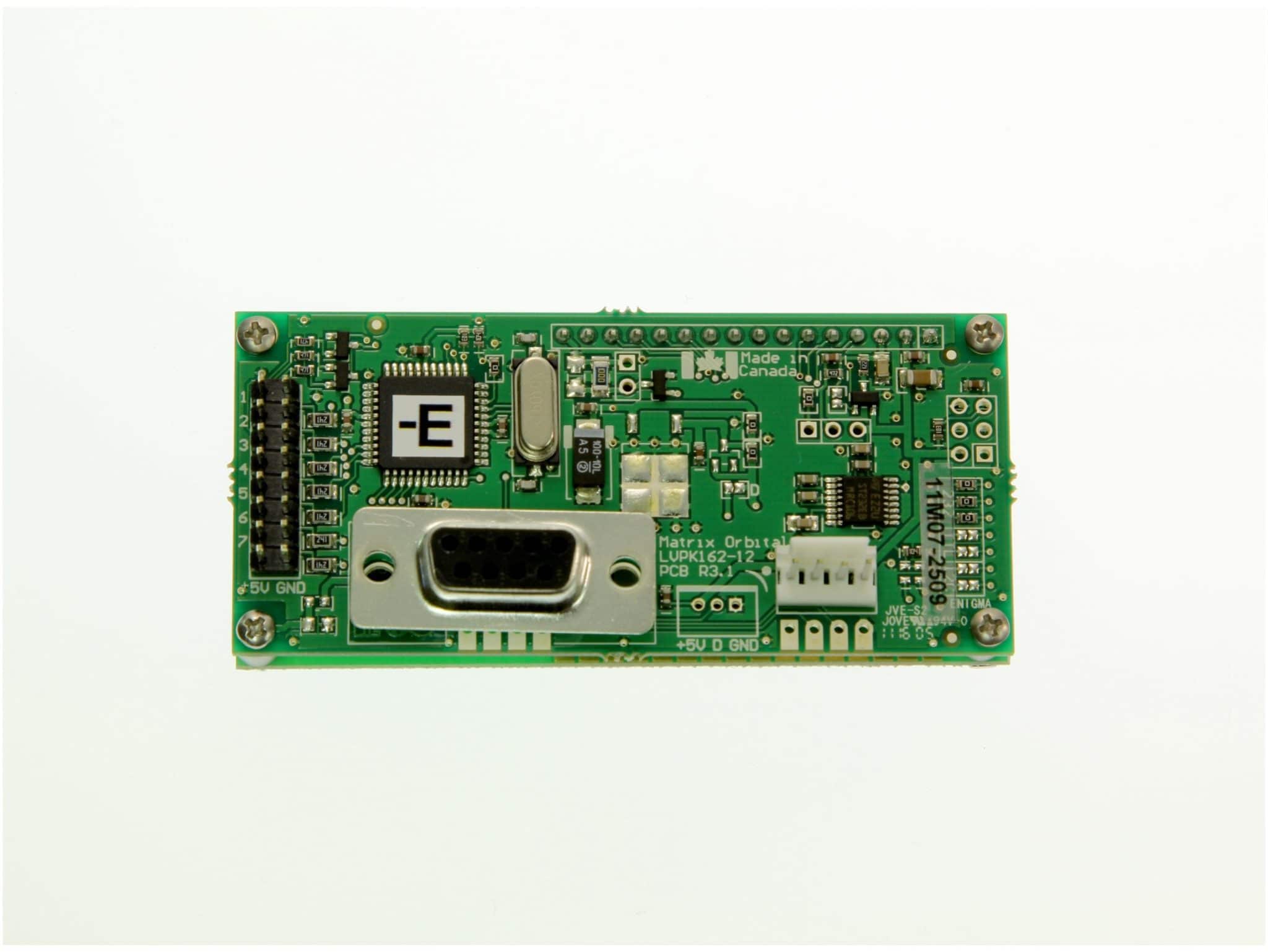

LK162-12-E Extended Temperature option

18101

59.95 USD
Qty
Price
1
$59.95 ea.

This unit is used in a variety of industrial applications such as computer server systems and web application control systems.


Description [Hide]

Display Appearance
Character X Lines Module Size Character Size
16   x   2

Length Width Thickness
80.00 mm  x  36.00 mm  x  27.50 mm

Length   Width
 5.55 mm  x   2.95 mm

Display Size Background Color Text Color
Length   Width
 64.50 mm  x   15.50 mm

Yellow/Green Black
Features
Keypad One Wire GPO Advanced GPO
12 N/A 7 N/A
Interface
RS232 RS232TTL Buffer Other
1200
2400
9600
19200
1200
2400
9600
19200
128 I2C
Environmental Conditions
Standard Temp. Extended Temp (-E) Max Humidity
Min Max
0.00°c  to  50.00°c

Min Max
-20.00°c  to  70.00°c

90.00 %
Power Requirements
Supply Current Backlight Current Inrush Current
37 92 mA N/A
