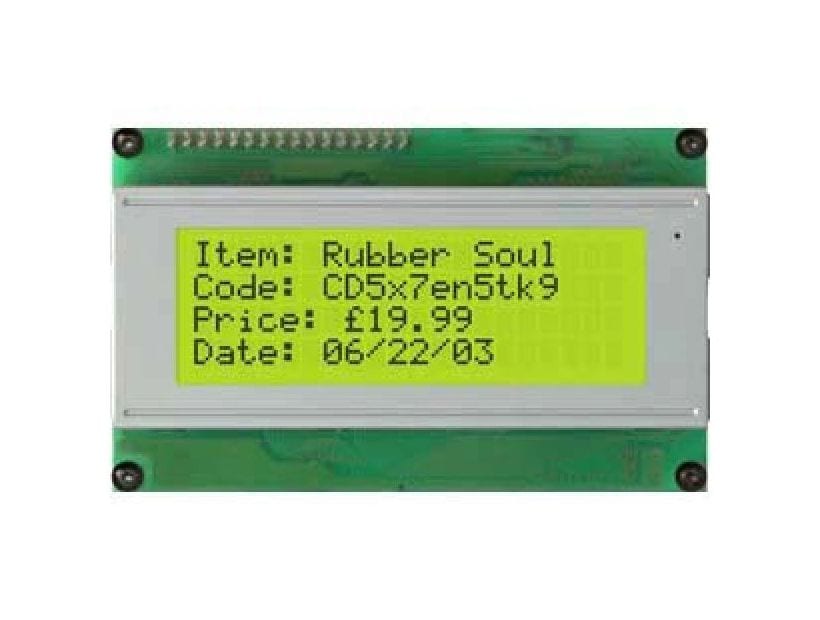

LCD2041 Serial LCD Module

18080

64.95 USD
Qty
Price
1
$64.95 ea.

This 20 character x 4 line serial LCD module is identical to the LK204-25 model except that it does not have a keypad interface and only has 1 GPO.


Description [Hide]

This is the workhorse of the LCD range of products. A reasonable compromise between physical size and information display capabilities, the 20x4 format is our best seller.

Display Appearance
Character / Lines
Pixels
Module Size (mm)
Character Size (mm)
Display Size (mm)
20x4
N/A
98 x 60 x 27.5
2.95 x 4.75
76.3 x 25
Background Colour
Text Colour

Yellow/Green
Black

Features
Keypad
One Wire
GPO
Advanced GPO
Memory Chip Size
0
0
1
0
N/A
Interface
RS-232
TTL
Buffer
Other

1200 - 19200 bps
1200 - 19200 bps
80
I2C

Environmental
Standard Temp (°C)
Extended Temp (°C)
Humidity

0 to +50
-20 to +70
90%

Power Requirements
Supply Current (mA)
Supply Current With Backlight (mA)
Inrush Current (mA)

10
62
N/A
