I2C Enabled 16x2 LCD - White on Blue 5V

18039

15.95 USD
Qty
Price
1
$15.95 ea.

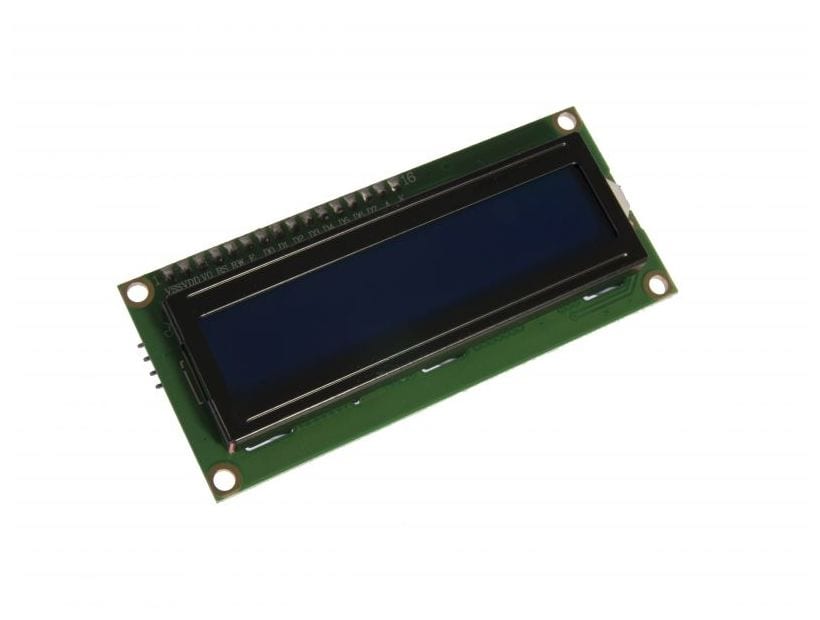

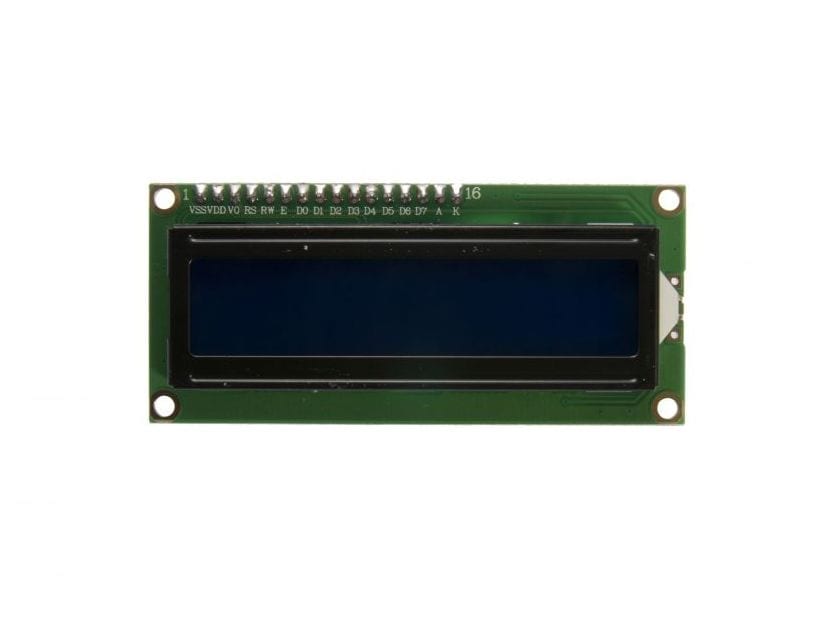

This 16 character by 2 line LCD, comes with an easy to use I2C communication interface.


Description [Hide]

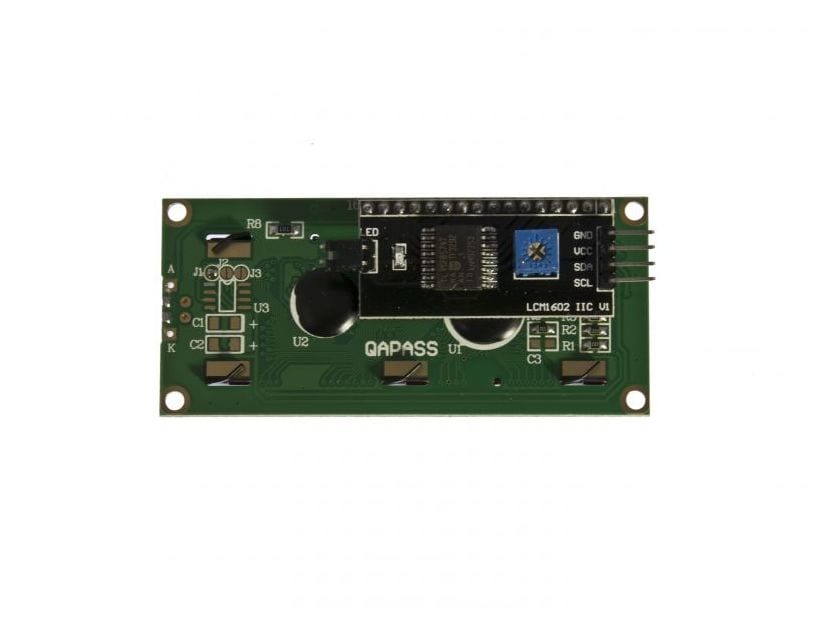

With an I2C backpack already soldered on, this LCD requires a very low pin count to use! Rather than the standard 6 pins required for basic LCD's, I2C means that you only need to connect two wires, SDA (serial data), and SCL (serial clock) to communicate between it and your microcontroller and allows multiple LCD's or other I2C modules to be connected on the same bus. The LCD requires 5V for power and communicates at 5V as well which makes it a perfect candidate for any 5V microcontrollers such as the Arduino.

Features:

  • I2C communication backpack pre-soldered
  • Header with jumper for enabling/disabling backlight

Specifications:

  • I2C Address: 0x27
  • Back Lit (Blue with white character color)
  • Supply Voltage: 5VDC
  • Size: 82x35x18mm
  • Weight: 40g

Documentation:

  • Arduino library here
