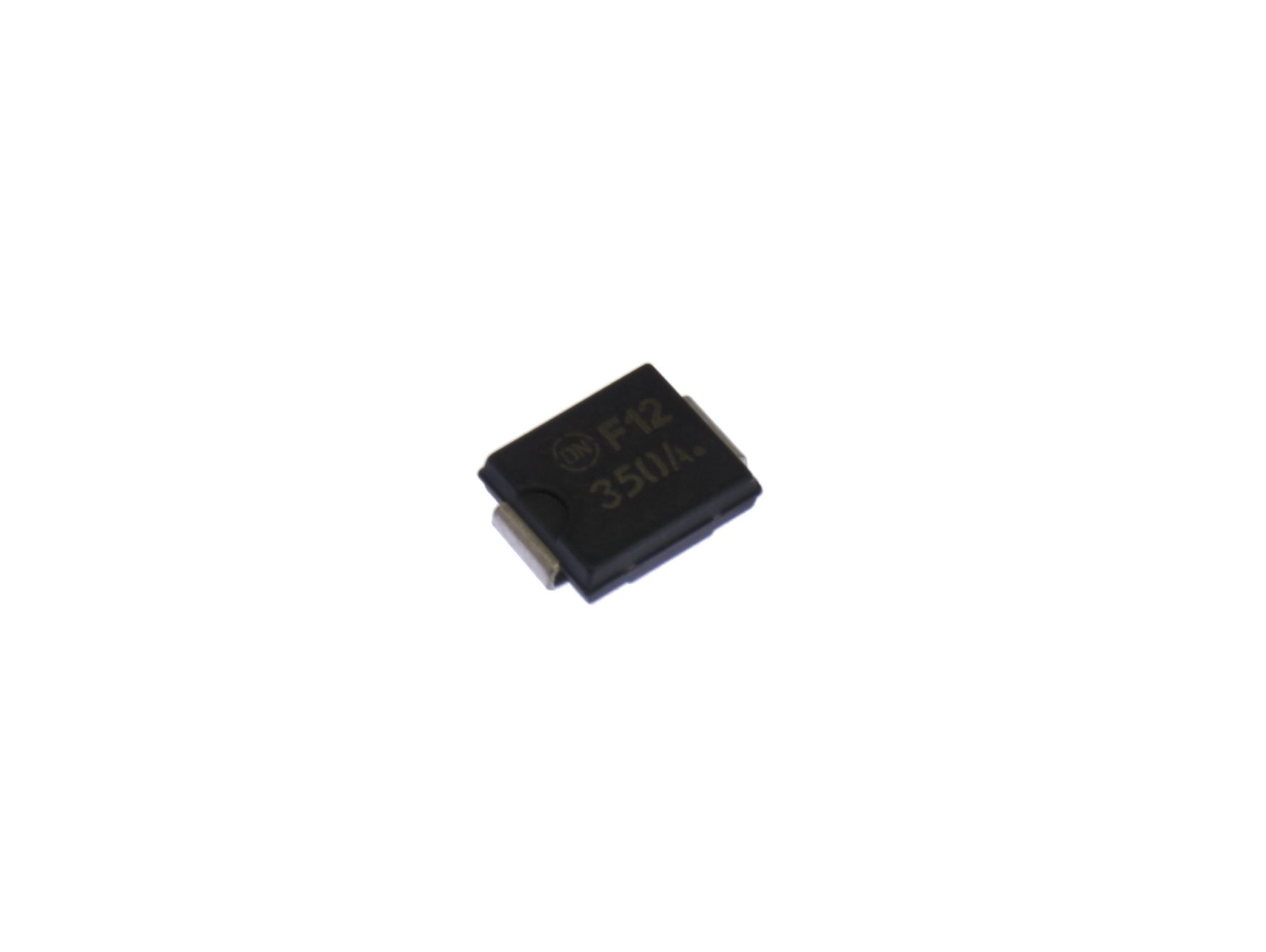

Constant-Current 350mA LED driver

17195

1.50 USD
Qty
Price
1
$1.50 ea.

The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost−effective solution for regulating current in LEDs.


Description [Hide]

The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost−effective solution for regulating current in LEDs

Specifications

  • Robust Power Package: 5.8 W
  • Wide Operating Voltage Range
  • Immediate Turn−On
  • Voltage Surge Suppressing − Protecting LEDs
  • UL94−V0 Certified
  • SBT (Self−Biased Transistor) Technology
  • Negative Temperature Coefficient
  • NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
  • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Typical Applications

  • Automobile: Chevron Side Mirror Markers, Cluster, Display & Instrument Backlighting, CHMSL, Map Light
  • AC Lighting Panels, Display Signage, Decorative Lighting, Channel Lettering
  • Application Note AND8349/D − Automotive CHMSL
  • Application Notes AND8391/D, AND9008/D − Power Dissipation Considerations

Mechanical Characteristics

  • CASE: Void-free, transfer-molded, thermosetting plastic
  • FINISH: All external surfaces are corrosion resistant and leads are readily solderable
  • MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds
  • LEADS:  Modified L−Bend providing more contact area to bond pads
  • POLARITY: Cathode indicated by molded polarity notch
  • MOUNTING POSITIONS: Any

Documentation [Hide]
