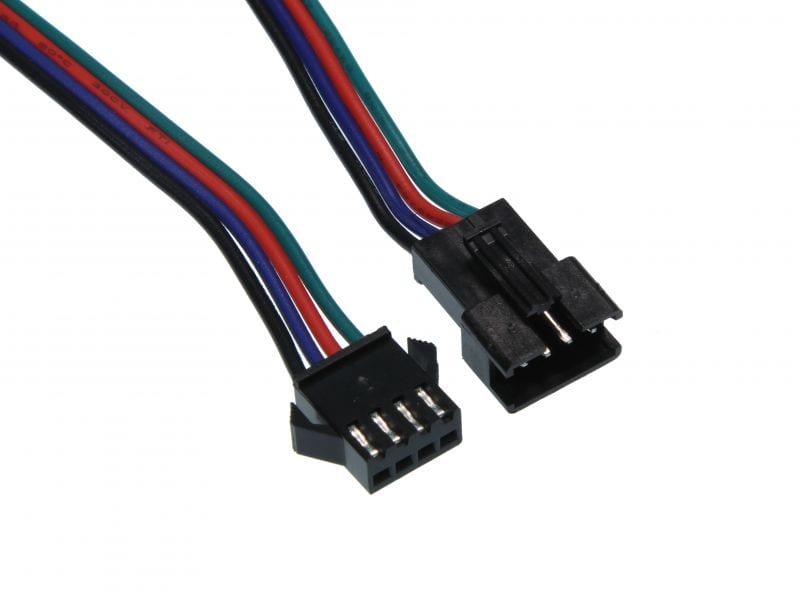

4-pin JST SM Plug & Cable Assembly

15022

1.50 USD
Qty
Price
1
$1.50 ea.

These 4-pin JST SM pigtail connectors mate perfectly with the RGB LED strips. They also make a good general purpose connector for any project. Each pack comes with one male and one female connector. The wire leads are 6 inches long and are term


Description [Hide]

These 4-pin JST SM pigtail connectors mate perfectly with the RGB LED strips. They also make a good general purpose connector for any project. Each pack comes with one male and one female connector. The wire leads are 6 inches long and are terminated with a JST SM connector on one end and left bare on the other.

Ah, those crazy factories. We bought these to match up with our RGB Stringxel bullets LEDs, but the colors don't match. Good thing electrons don't care. Just be aware that the pinout colors will not match!

Features

  • Male/Female pair
  • 4-Pin JST SM connectors
  • 22 AWG stranded wire
  • Length (each connector with wire): 6 inches
  • Color mapping matches the Stringxels (male end away, lock-tab up, left-to-right):
    • Green
    • Red
    • Blue
    • Black
