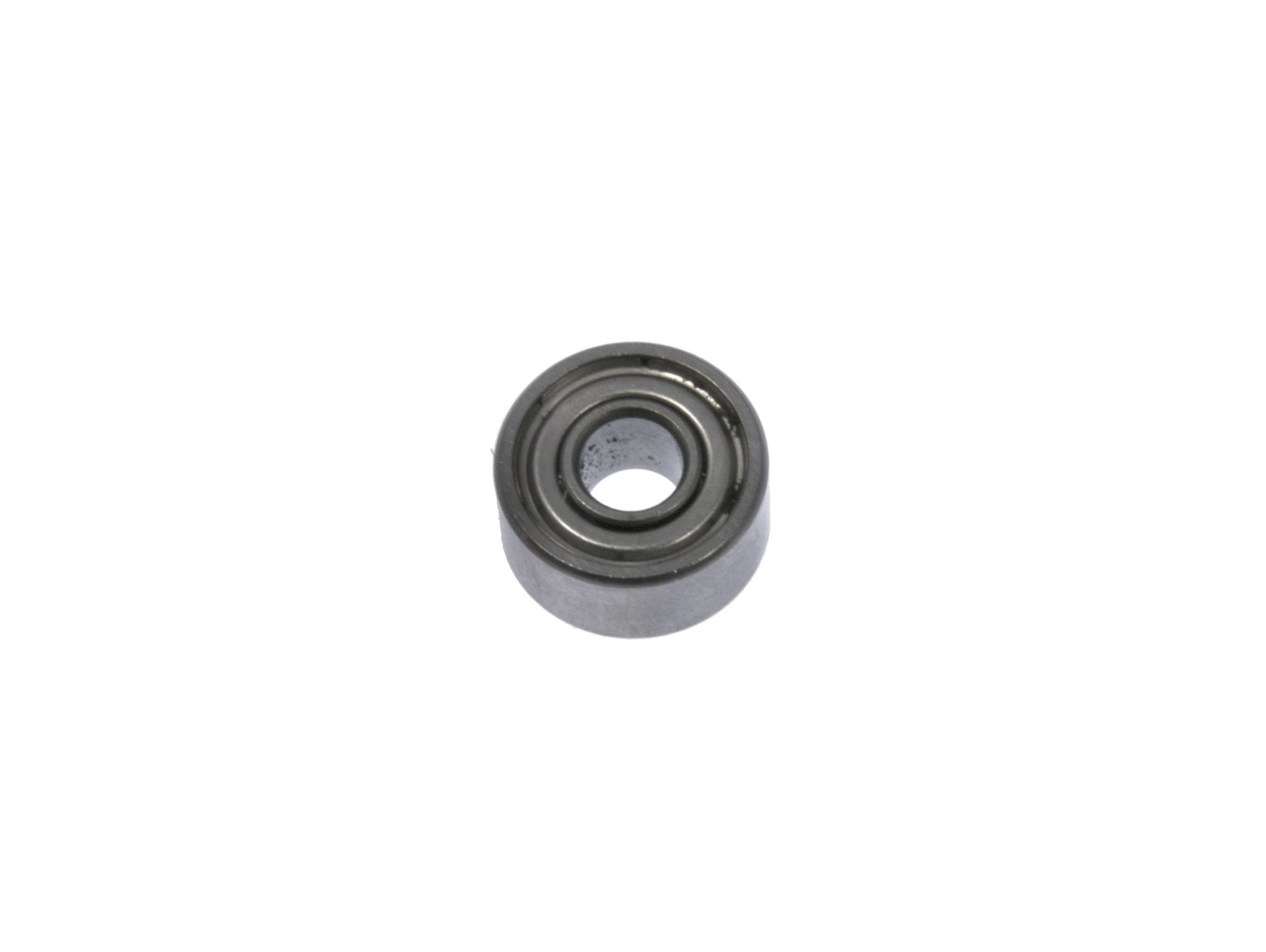

693ZZ double-shielded bearing, 3x8x4mm

14485

1.00 USD
Qty
Price
1
$1.00 ea.

Friction Be Gone! These bearings will let you slide!


Description [Hide]

693ZZ Shielded Wheel Ball Bearing is a popular size that could be used in many RC Cars and Trucks, 3D printers, etc. Bearings are made of chrome steel, each bearing has 2 metal shields to protect the bearing from dust or any possible contamination, also bearings are pre-lubricated with grease.

Specifications

  • Outside Diameter: 8mm
  • Inside Diameter: 3mm
  • Width: 4mm
  • Mass: 0.5g per piece
  • RPM Limit: grease:60000rpm, oil:67000 rpm
  • Vibration Level: Above V1 standard and below V2 standard.
  • Shield/ Closure Codes: ZZ (Two side metal shields)
  • Lubrication Temperature Range: -20C to 120C
  • ABEC Tolerance Codes: ABEC1
