Losi Micro-T MX2.0 2-pin connector set, wired

14235

1.25 USD
Qty
Price
1
$1.25 ea.

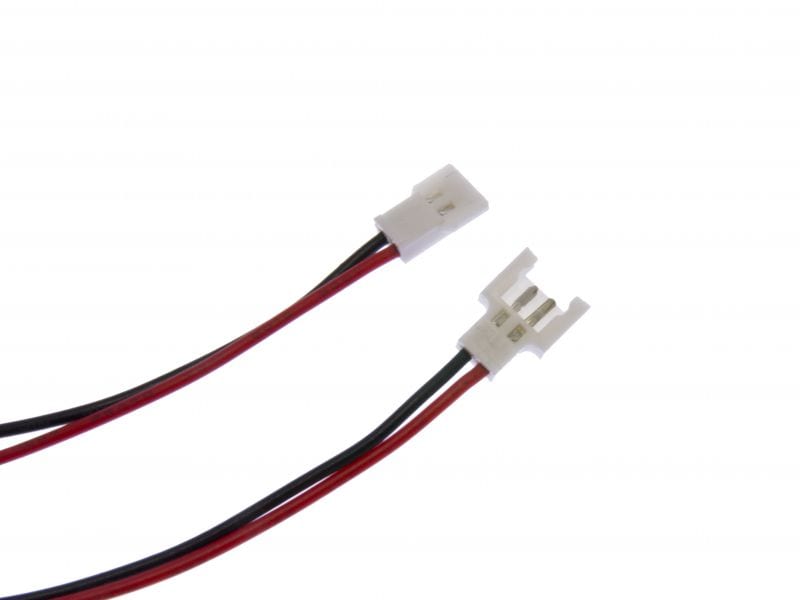

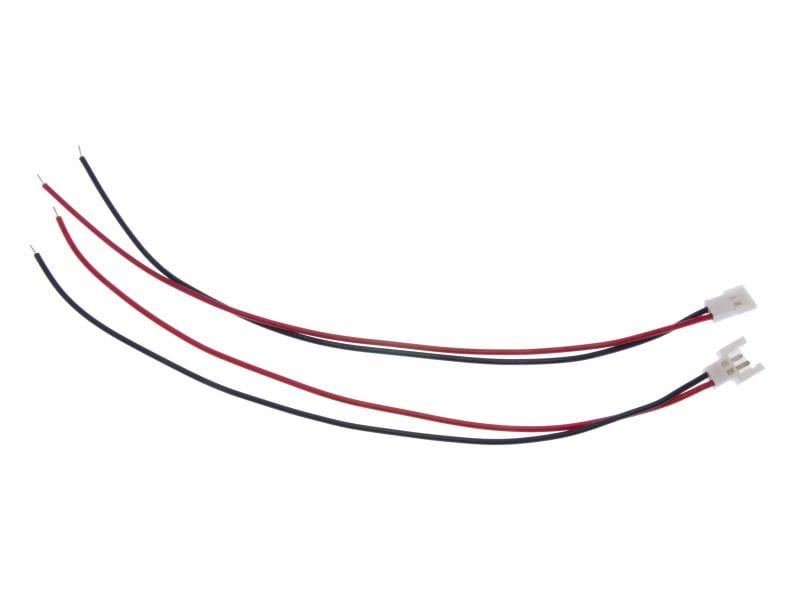

Losi Micro-T MX2.0 power connector set (male/female) are excellent low-profile battery connectors with 160mm (6") wires, rated 2A


Description [Hide]

These Losi MX2.0 power connector sets come as a male/female set, each attached to a pair of 160mm (6") wires. They're officially JST-DS "microblade" connectors used on Losi Micro-T racers (and micro AUV's too), rated 2A per connector. We like them on wearables, as they pull apart under excessive tension (avoids rips), and they're low-profile.

Features:

  • Low Profile
  • "Click" connection, but not locked-in
  • Prewired red & black 160mm (6") 26AWG wire
  • 2A rated

Specifications:

  • Molex 51005-2P / 51006-2P arrangement
  • 2mm pitch spacing
  • 2 conductor
  • CSA LR19980 / UL E29179 certification
