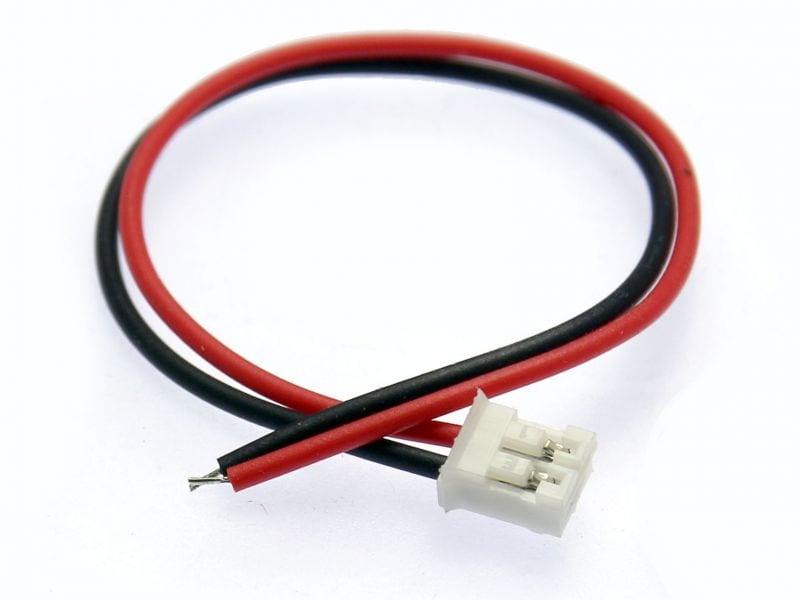

JST PH 2.0 connectors are becoming quite common, especially for devices expecting to be connecting to LiPoly batteries. If you don't have a LiPoly, wire up your own power supply and jack it in with this 190mm (7.5") 2-conductor JST-connector cable!

This connector is also part of the 14183 cable & plug set

Documentation ^[Hide]

[Schematic]: JST Connector Schematic
